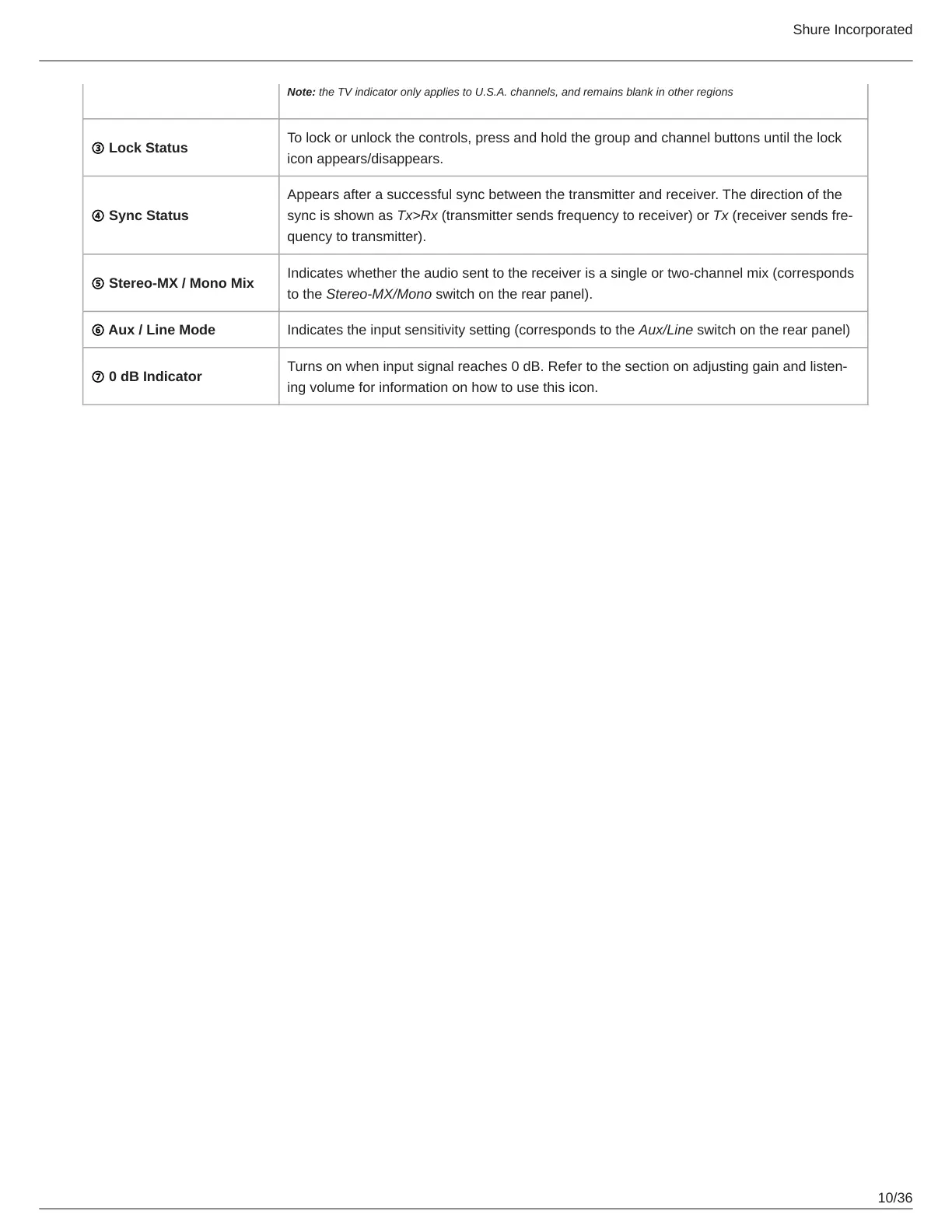

Note: the TV indicator only applies to U.S.A. channels, and remains blank in other regions
③ Lock Status
To lock or unlock the controls, press and hold the group and channel buttons until the lock
icon appears/disappears.
④ Sync Status
Appears after a successful sync between the transmitter and receiver. The direction of the
sync is shown as Tx>Rx (transmitter sends frequency to receiver) or Tx (receiver sends fre
quency to transmitter).
⑤ Stereo-MX / Mono Mix
Indicates whether the audio sent to the receiver is a single or two-channel mix (corresponds
to the Stereo-MX/Mono switch on the rear panel).
⑥ Aux / Line Mode Indicates the input sensitivity setting (corresponds to the Aux/Line switch on the rear panel)
⑦ 0 dB Indicator
Turns on when input signal reaches 0 dB. Refer to the section on adjusting gain and listen
ing volume for information on how to use this icon.
