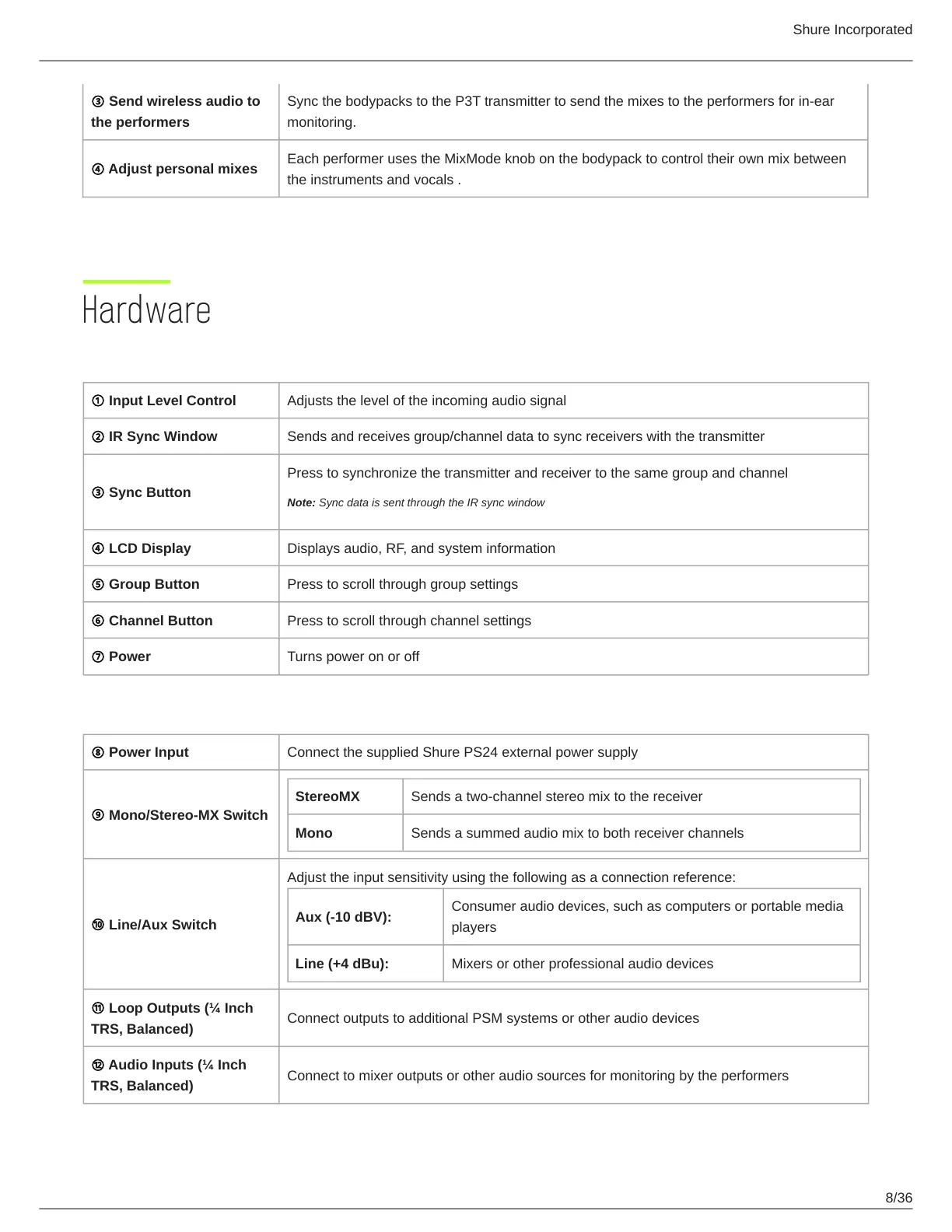

Shure Incorporated
8/36
③ Send wireless audio to
the performers
Sync the bodypacks to the P3T transmitter to send the mixes to the performers for in-ear
monitoring.
④ Adjust personal mixes
Each performer uses the MixMode knob on the bodypack to control their own mix between
the instruments and vocals .
Hardware
P3T Transmitter Front and Rear Panels
① Input Level Control Adjusts the level of the incoming audio signal
② IR Sync Window Sends and receives group/channel data to sync receivers with the transmitter
③ Sync Button
Press to synchronize the transmitter and receiver to the same group and channel
Note: Sync data is sent through the IR sync window
④ LCD Display Displays audio, RF, and system information
⑤ Group Button Press to scroll through group settings
⑥ Channel Button Press to scroll through channel settings
⑦ Power Turns power on or off
⑧ Power Input Connect the supplied Shure PS24 external power supply
⑨ Mono/Stereo-MX Switch
StereoMX Sends a two-channel stereo mix to the receiver
Mono Sends a summed audio mix to both receiver channels
⑩ Line/Aux Switch
Adjust the input sensitivity using the following as a connection reference:
Aux (-10 dBV):
Consumer audio devices, such as computers or portable media
players
Line (+4 dBu): Mixers or other professional audio devices
⑪ Loop Outputs (¼ Inch
TRS, Balanced)
Connect outputs to additional PSM systems or other audio devices
⑫ Audio Inputs (¼ Inch
TRS, Balanced)
Connect to mixer outputs or other audio sources for monitoring by the performers
