⑬ BNC Antenna Connec
tor
Connect the supplied ¼ wave antenna, directional antenna, or a Shure PA411 antenna com
biner

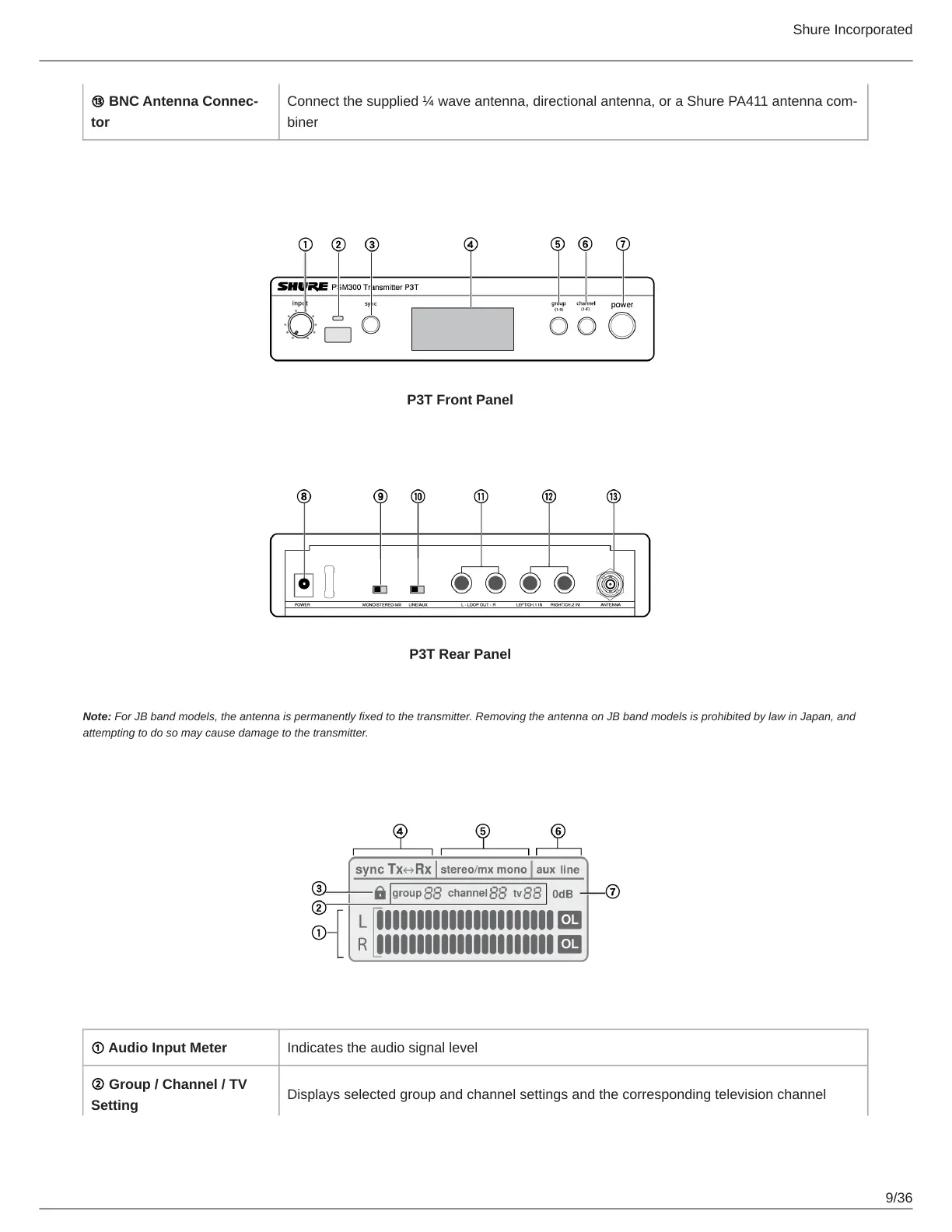

P3T Front Panel
P3T Rear Panel
Note: For JB band models, the antenna is permanently fixed to the transmitter. Removing the antenna on JB band models is prohibited by law in Japan, and
attempting to do so may cause damage to the transmitter.
P3T Transmitter Display
① Audio Input Meter Indicates the audio signal level
② Group / Channel / TV
Setting
Displays selected group and channel settings and the corresponding television channel
