www.Siargo.com FS4001 User Manual
3. Knowing the products

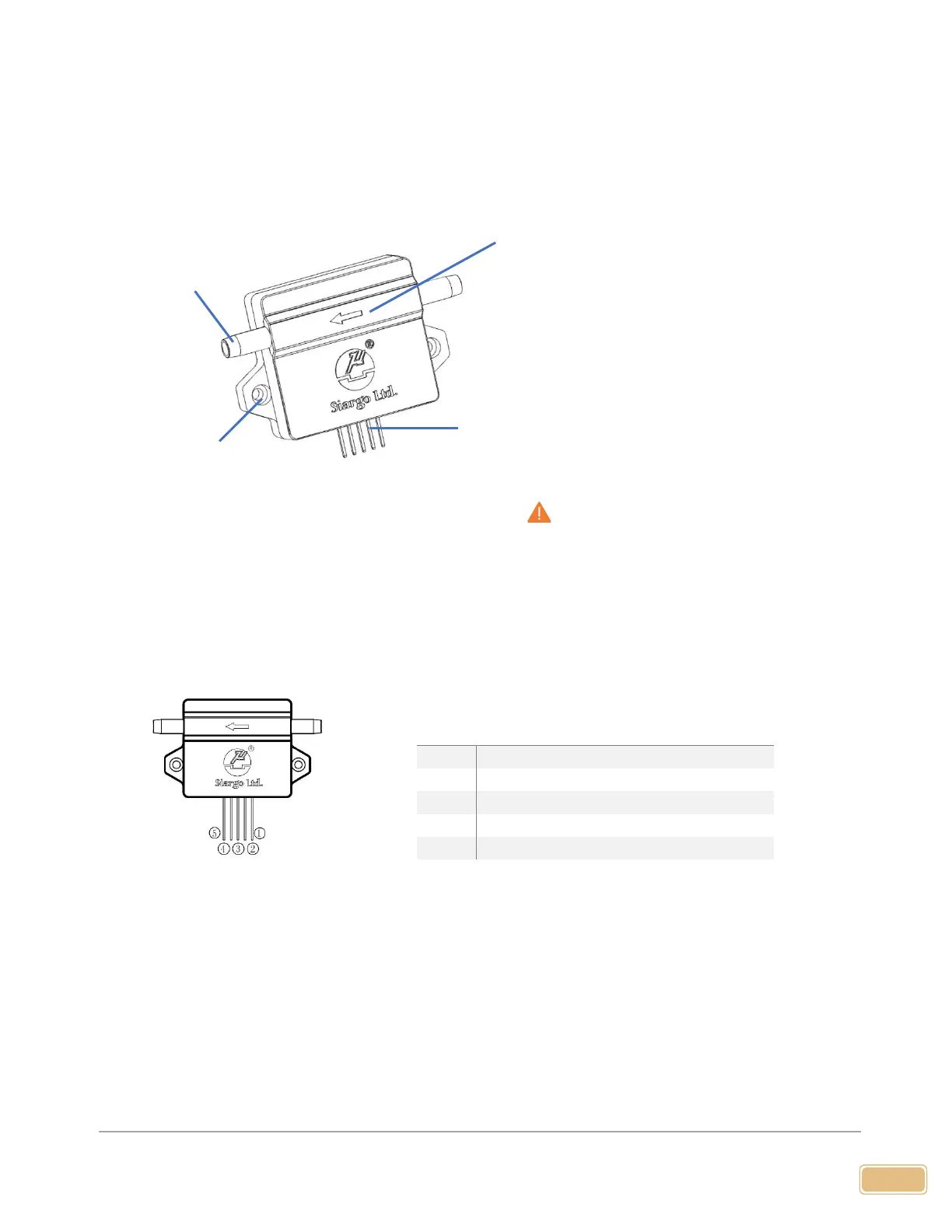

3.1 Product description
3.2 Power and data pinout description
Table 3.2: FS4001 pin assignment.
Pins: 2.54 mm centers, 0.635 mm square
Note: The product offers two digital communications as options, I
2
C or RS232 that can be selected at the
time of order. These two communication protocols share the ports as defined in Table 3.2. For the
detailed protocols of the corresponding option, please refer to Section 5.
PIN
DEFINITION
1
SCL, I
2
C clock / RX, RS232
2
GND, ground
3
VCC, power supply, 8~24Vdc
4
Analog output, 0.5~4.5 Vdc
5
SDA, I
2
C data / TX, RS232
Direction for flow
measurement. For dual
directional model, the
arrow does not apply.
Barbed connedtor
Installation hole
Power and data
connector.
Note: Digital I
2
C and RS232 share the
ports, please specify the model at the
time of order.
