3.3 Mechanical dimensions

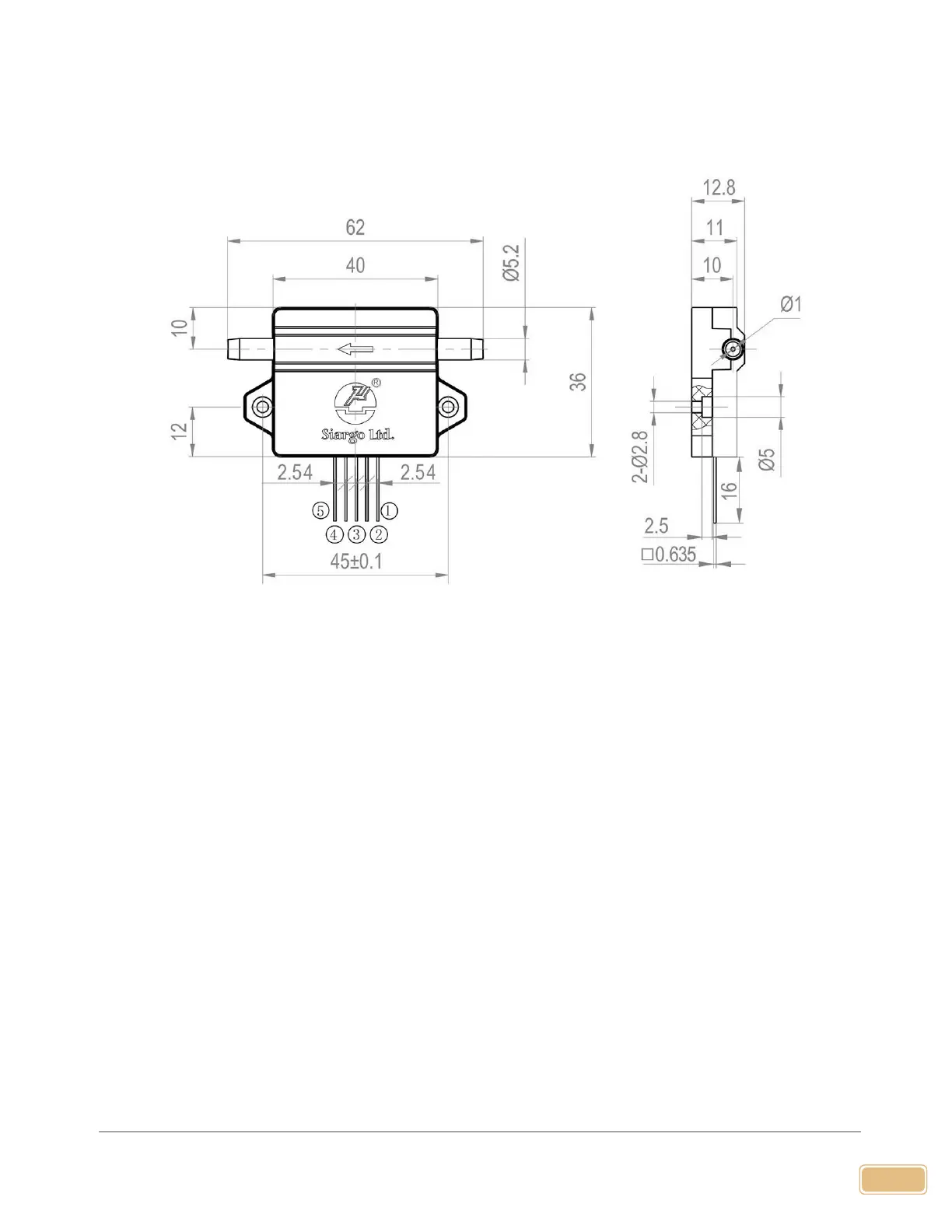

Figure 3.3.1. FS4001 mechanical dimensions.
4. Installation
Do not open or alter any part of the product, which would lead to malfunction and irrecoverable
damage.
For the installation, the product comes with a barbed connector, soft pipe connection is normally
applied. The sensor can be soldered directly onto the PCB, or a cable can be used for the data and
power. Make sure to the mechanical leakage proof of the connections and all electrical precautions
are applied. Please make sure the electrical pins are properly engaged, in case of a cable is used for
the connection. It should be noted that the sensor is designed for medium to low pressure per the
applications, therefore, the system design would be important for the flow stability and related flow
noises.
