Sic Marking i124s - Installation Setup and Connections

NOTI124SUS-R01.docx Translation of the original instructions 5/19
2/ INSTALLATION
a) Fixing
The marking system must be installed on a perfectly rigid and stable appropriate support
frame.
b) Connections

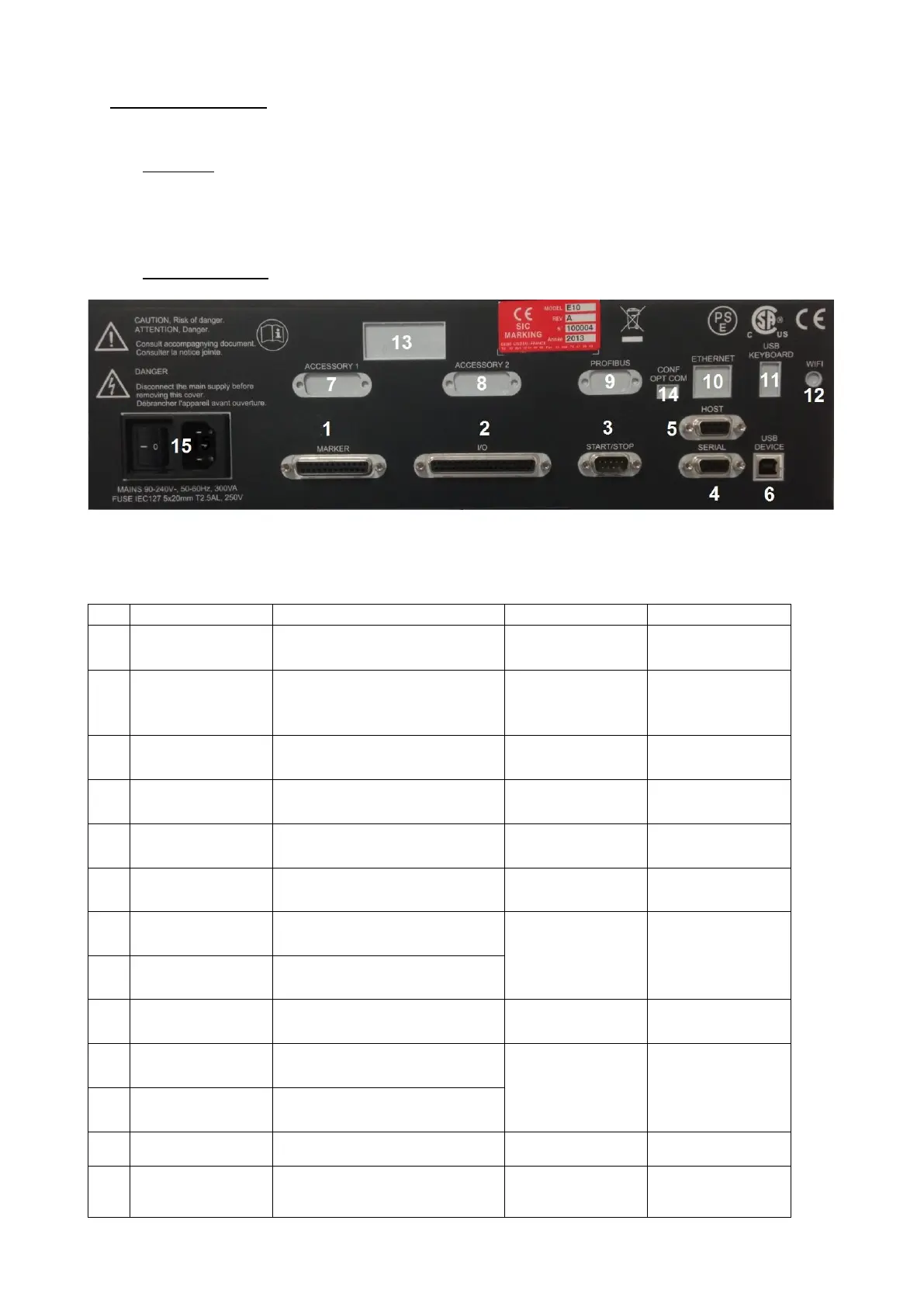

Figure 1 : Rear of e10
Rear of E10 controller
N°
TITLE
CONNECT TO :
CODE ARTICLE
1
MARKER
MARKING MACHINE
2
I/O
INPUT/OUTPUT/MARKING
FILE
3
START/STOP
CONTROL HANDBOX
4
SERIAL
PC / PLC
5
HOST
PC / PLC
6
USB DEVICE
PC
7
ACCESSORY 1
D-AXE
OPTION
3 300 050
8
ACCESSORY 2
Z-AXE / 4th AXE
9
PROFIBUS
PC/PLC
OPTION
10
ETHERNET
PC/PLC
OPTION
3 300 051
11
USB KEYBOARD
USB KEYBOARD
12
WIFI
ANTENNA
13
TRAPPE A.U /
BATTERIE
OPTION
