Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350

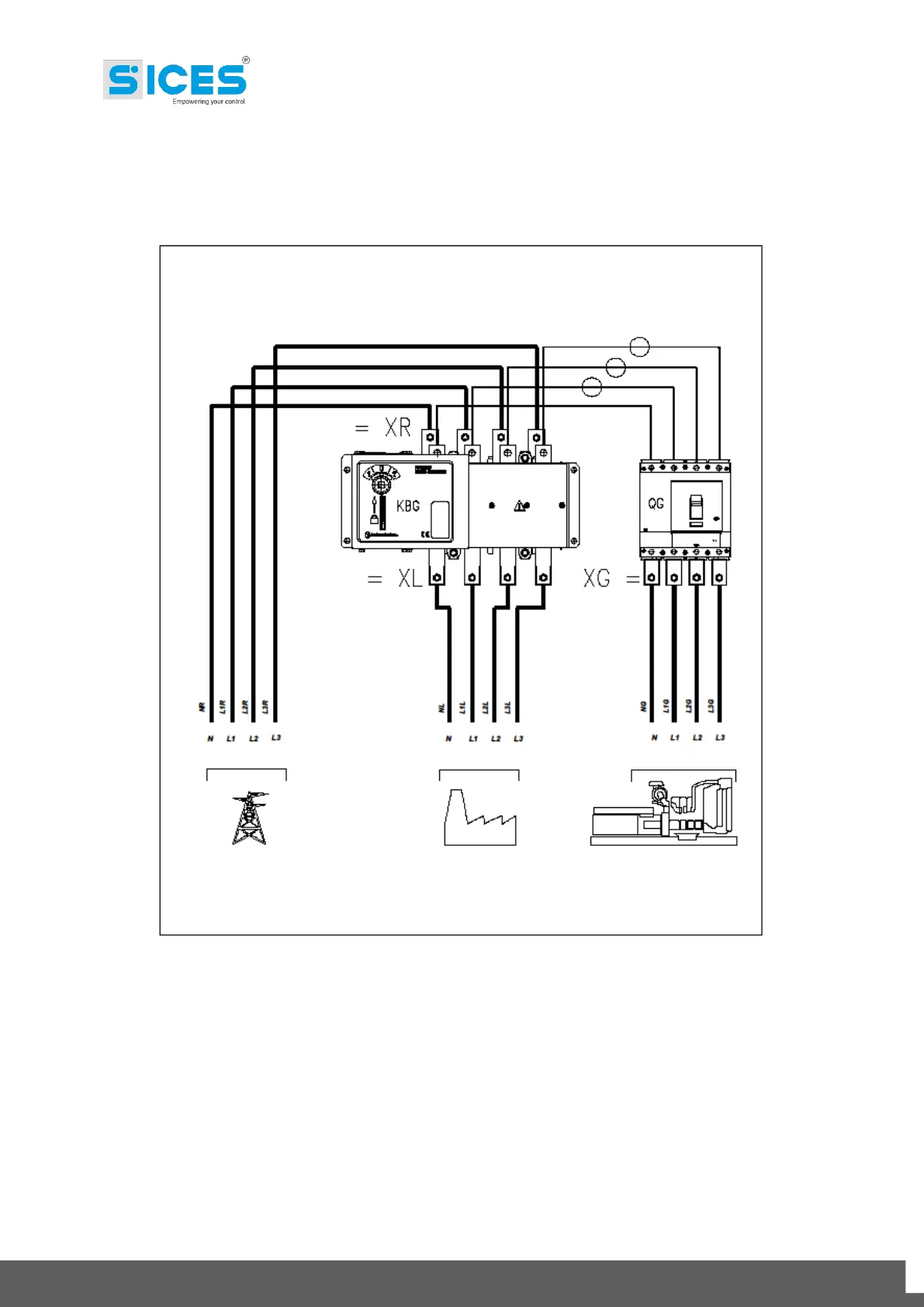

Fig.2 – Connection of the power cables on the bars. KBG and QG horizontally.
SIZE 100KVA - 500÷15800kVA
MAINS LOAD GENSET
MAINS
LOAD
GENSET
MAINS LINE LOAD LINE GENSET LINE
