Mounting
!
"
§
$

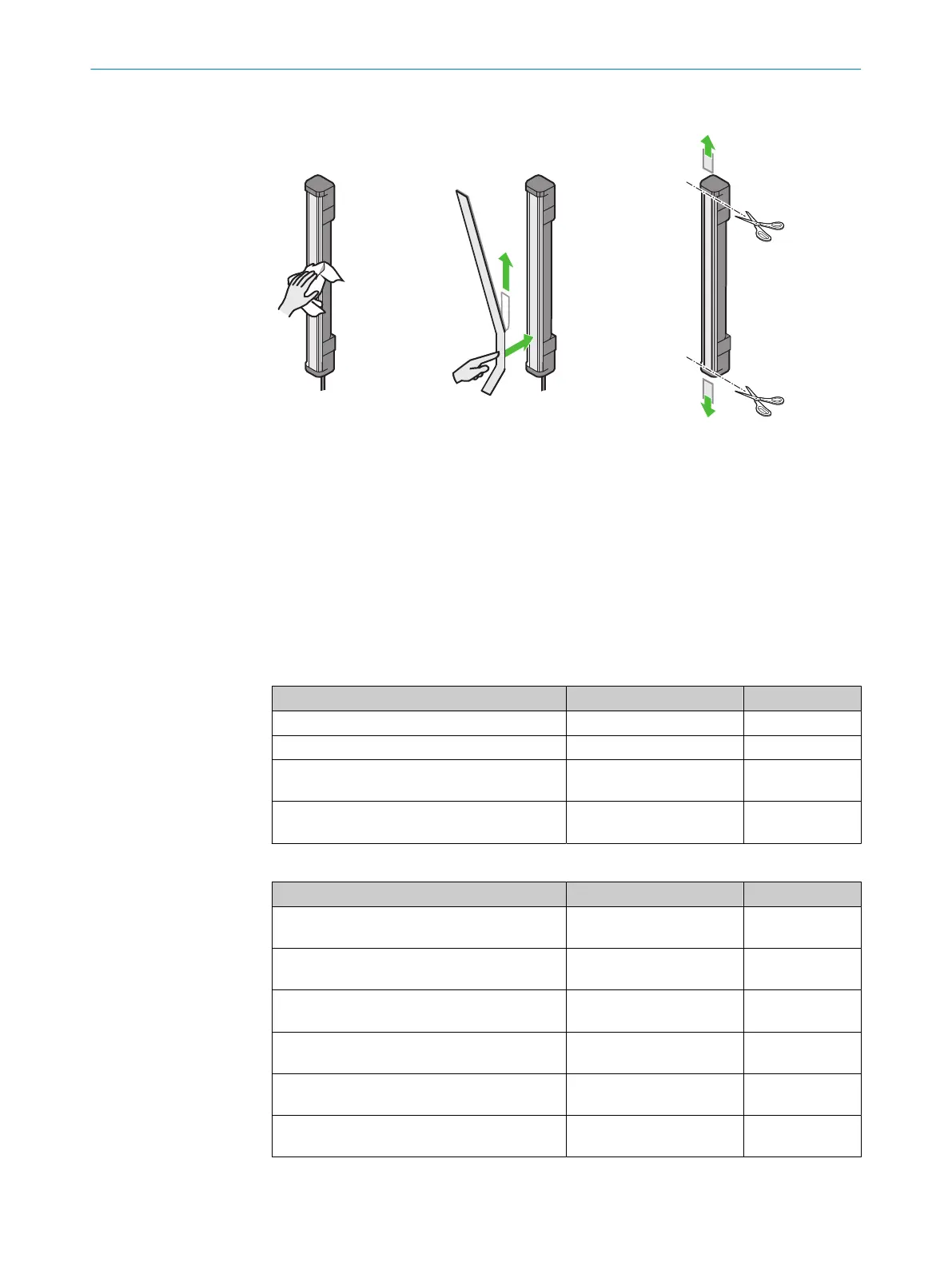

Figure 46: Mount the weld spark guard
!
Clean the front screen
"
Remove backing film
§
Press against the weld spark guard
$
Cut off excess ends
Further topics
•
"Minimum dis
tance to reflective surfaces", page 26
15.4 Connectors
Table 44: SP1 system plug ordering information
Connection type Type codes Part number
System connection (M12, 5-pin) 1000 2076832
System connection (M12, 8-pin) 1200 2076834
System connection (M12, 5-pin) and extension
connection (M12, 5-pin)
1100 2076833
System connection (M12, 8-pin) and extension
connection (M12, 5-pin)
1300 2076835
Table 45: Ordering information for M12 connecting cable, 5-pin (0.34 mm
2
)
3)
Part Type code Part number
Female connector, straight, 2 m c
able, flying
leads
YF2A15-020UB5XLEAX 2095617
Female connector, straight, 5 m cable, flying
leads
YF2A15-050UB5XLEAX 2095618
Female connector, straight, 10 m cable, flying
leads
YF2A15-100UB5XLEAX 2095619
Female connector, straight, 15 m c
able, flying
leads
YF2A15-150UB5XLEAX 2095620
Female connector, straight, 20 m cable, flying
leads
YF2A15-200UB5XLEAX 2095614
Female connector, straight, 30 m cable, flying
leads
YF2A15-300UB5XLEAX 2095621
ACCESSORIES 15
