SICK IDM 1 Series Quick Start

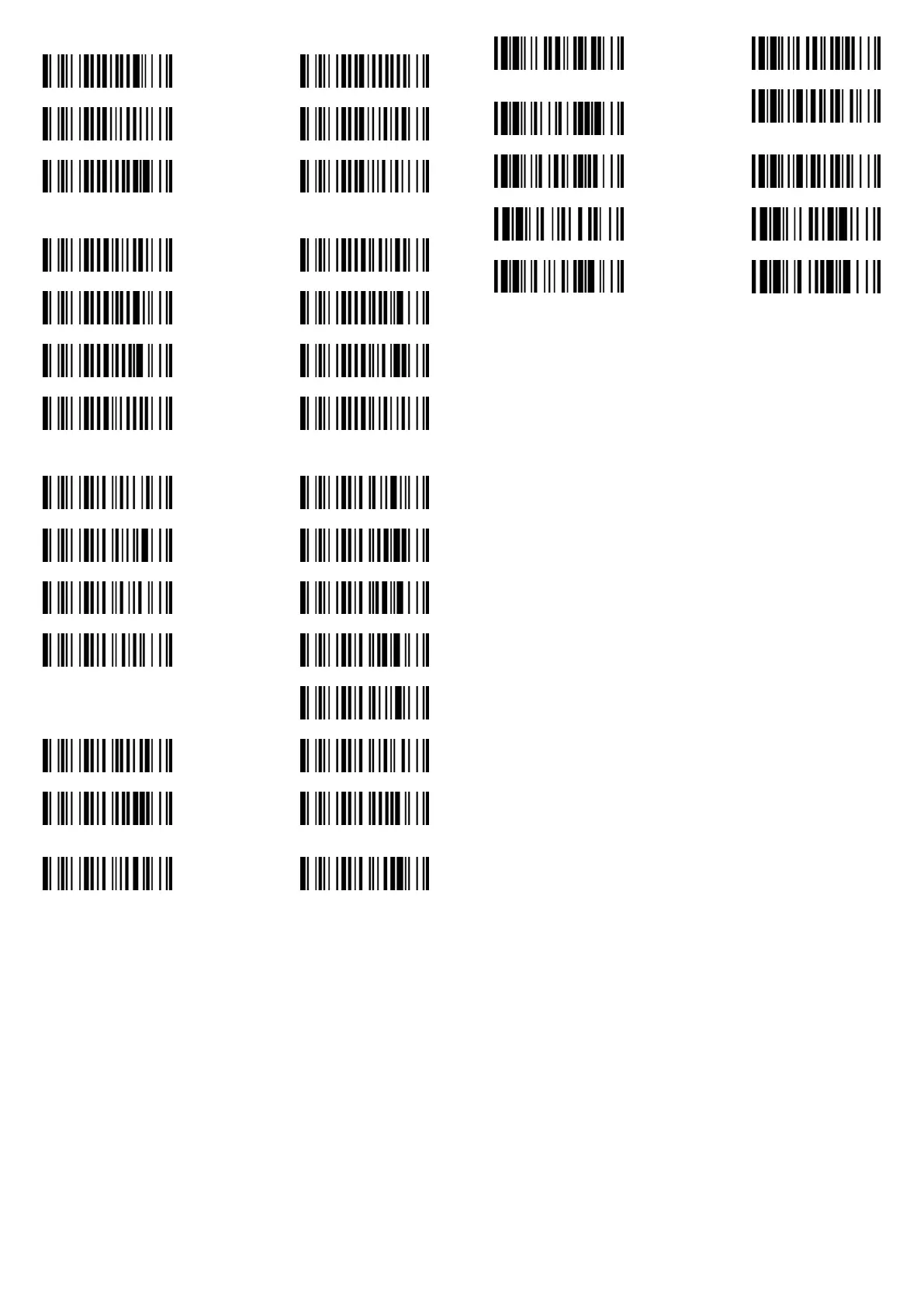

4.11.1 Data set suffix
None LF
Tab SPACE
CR ◆ CRLF
4.11.2 Baud rate
115,200BPS 57,600BPS
38,400BPS 19,200BPS
9,600BPS ◆ 4,800BPS
2,400BPS 1,200BPS
4.11.3 Data frame
7, odd, 1 7, odd, 2
7, mark, 1 7, mark, 2
7, even, 1 7, even, 2
7, space, 1 7, space, 2
7, none, 2
8, none, 1 ◆ 8, none, 2
8, odd, 1 8, even, 1
8, space, 1
(IDM1x1 only)
8, mark,
1 (IDM1x1 only)
4.12 System commands
•
Factory settings: After scanning the Factory default command, all parameters
are reset to their default values.
•
Master default: After scanning the Master default command, the scanner
retains the following preset parameters: Host interface selection, Keyboard inter‐
face setting (with the exception of data set suffix, preamble, postamble), Serial
interface setting (with the exception of data set suffix, preamble, postamble),
and Scanner/laser emulation setting. The other parameters are reset to the
default values.
•
Save configuration: Once the scanner has been configured, you can save the
configuration by scanning the Save configuration command. If you scan User
default, the scanner loads the saved configurations. If you scan Master default
or Factory default, the user-defined configuration is deleted.
•
Use configuration software: Scanning the IDM Set Up Tool (Host Link) command
enables the handheld scanner to be configured via the IDM Set Up Tool
configuration software.
•
Search: Scanning the Paging command enables the connected smart base
station to be located.
•
Clone: When using PICO mode, this function enables host interface parame‐
ters to be transferred from one connected hand-held scanner to others. To
do this, the host interface parameters must be configured with a hand-held
scanner and saved via the Save configuration command. By scanning the Clone
command with other hand-held scanners, these receive the same configura‐
tion; to do this, there must be a wireless connection between the hand-held
scanners and the base station.
System information Master default
IDM Set Up Tool (Host
Link)
Save configuration
Factory default User default
Sleep mode Power off
Paging Clone
8028120//2022-10-28/en IDM Bluetooth (IDMxx1-4xx) | SICK 4
