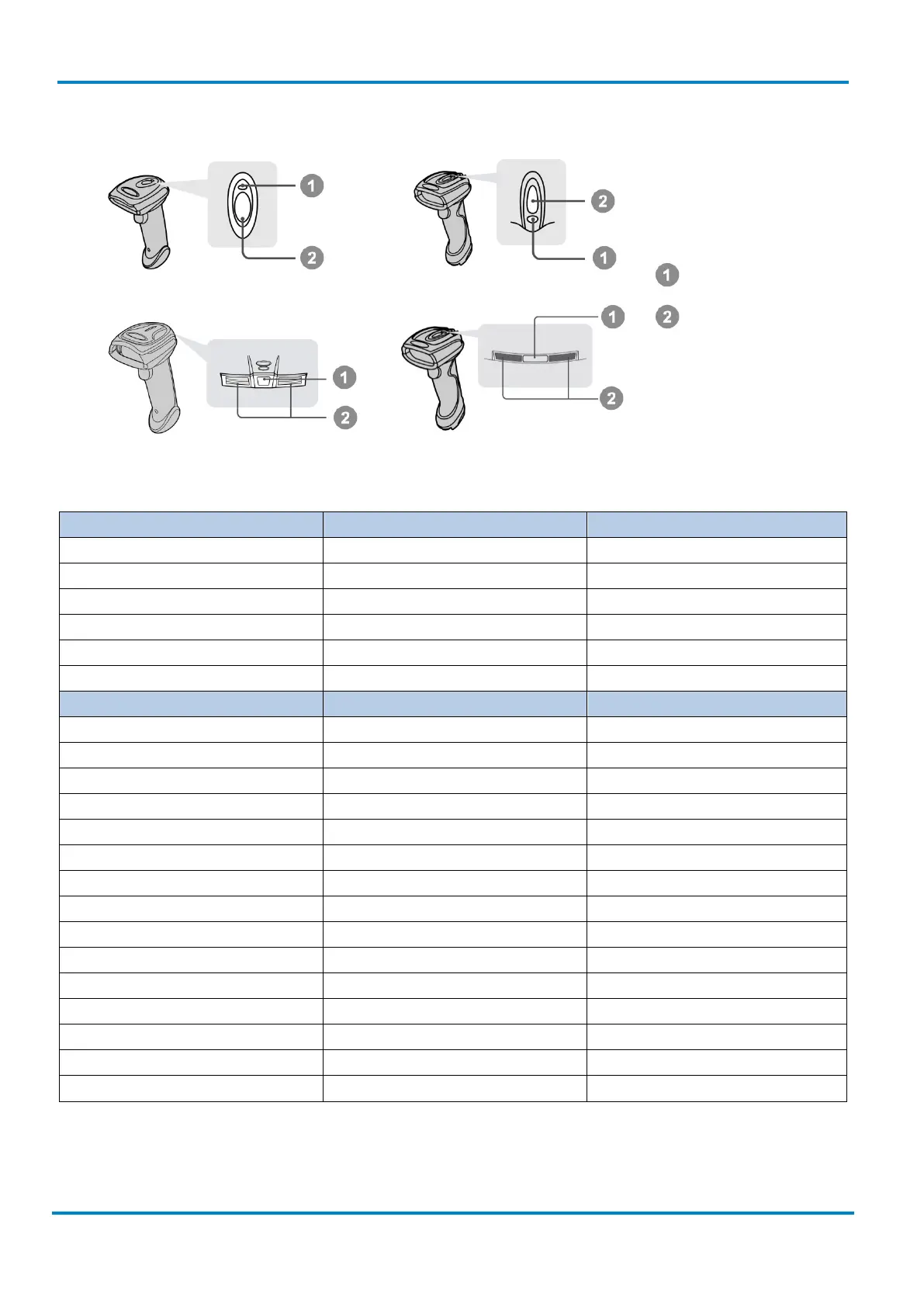

2.1.5 Indications
IDM140 Bluetooth
IDM160 Bluetooth
IDM241 Bluetooth
IDM261 Bluetooth
IDM Bluetooth Scanners
Description
Link indicator
Beeper
Radio connection
1 blue blink per 2.5 sec.
Off
Radio disconnection
3 blue blinks per 2 sec.
Off
During connection
Quick blue blinks
Short clicks
Radio connection built
1 blue blink per 2.5 sec.
4 beeps in ascending tone
Radio connection lost
3 blue blinks per 2 sec.
4 beeps in descending tone
Data Transmission
Quick blue blink
Short clicks
Description
Status Indicator
Beeper
Under charging (on cradle)
Steady red
Off
Fully charged (on cradle)
Steady green
Off
Under batch scanning
1 green blink per 2.5 sec.
Off
Pair failure
Steady red
2 Di-do Di-do beeps
Out of memory
2 red blinks
2 long beeps
Battery power low
1 red blink at regular interval
1 beep at regular interval
Battery power extremely low
8 red blinks
8 beeps
Good read
1 green blink
1 good read beep
Under Configuration
Steady red
Off
Uninstall state
Alternative red and green blinks
Off
Upgrade state
Steady red
Short click
Time out warning
Off
3 long beeps
Paged by smart cradle
Off
6 page beeps
Sleep state / Battery no power
Off
Off
Power Off
Off
Off
Link Indicator
Status Indicator
