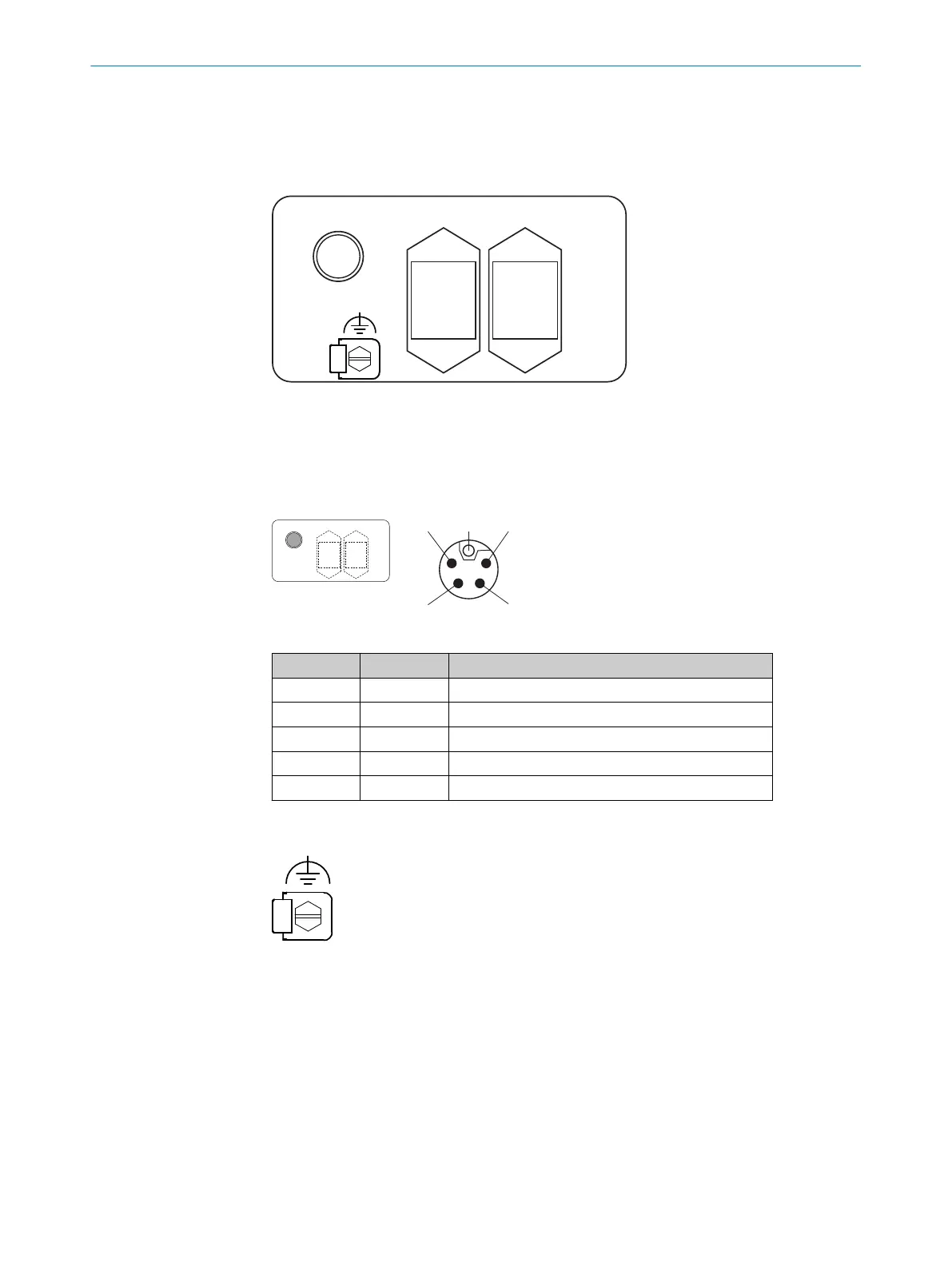

6 Connection overview
MICSX-CPNNZZZZ1, MICSX-CLNNZZZZ1 (part numbers: 2087905, 2106404)
FE
XD1
XF1 XF2
7 Pin assignment
7.1 Voltage supply (XD1)
M12 male connector, 5-pin, L-coded.
41
2 3
5
Pin assignment of the voltage supply
Pin Marking Function
1 +24 V DC 24 V DC supply voltage
2 NC Not connected
3 0 V DC 0 V DC supply voltage
4 NC Not connected
5 FE Functional earth/shield
7.2 Alternative FE connection
Figure 1: Alternative FE connection
Scr
ew connection of the alternative FE connection
•
Screw: M5 × 12
•
Screw head: hexagon with slot, width across flats WAF 8
•
Tightening torque: 3.5 Nm to 5.0 Nm
Suitable cable lugs
•
Forked cable lug or ring cable lug
•
Width ≤ 10 mm
•
Hole diameter for screw: typically 5.2 mm
MOUNTING INSTRUCTIONS
8021229/13IA/2019-05-16 | SICK M O U N T I N G I N S T R U C T I O N S | microScan3 – PROFINET (RJ45, SCRJ)
13
Subject to change without notice

SICK microScan3 - PROFINET Specifications

General

Number of fields	128
Protective field range	Up to 5.5 m
Number of monitoring cases	128
Number of simultaneously monitored protective fields	8
Number of simultaneously monitored warning fields	8
Angular resolution	0.1°
Response time	30 ms
Interfaces	PROFINET
Safety integrity level	SIL3 (IEC 61508)
Performance level	PL e (ISO 13849-1)
Ambient operating temperature	+50 °C
Protection class	IP65
Supply voltage	24 V DC
Storage temperature	–25 °C ... +70 °C
Housing material	plastic
