5. Carefully insert the new system plug into the safety laser scanner.
6.
Screw in the system plug using the captive screws. Tightening torque: 2.25 Nm to
2.75 Nm.
7. Reconnect the connecting cables to the system plug.
8. Configure the safety laser scanner.
9. Perform commissioning again, taking particular care to conduct all of the thorough
checks described. For more information, see the operating instructions.
A
9
1
2
ß
3
5
4
7
6
8
B C
1
1 2
2
D

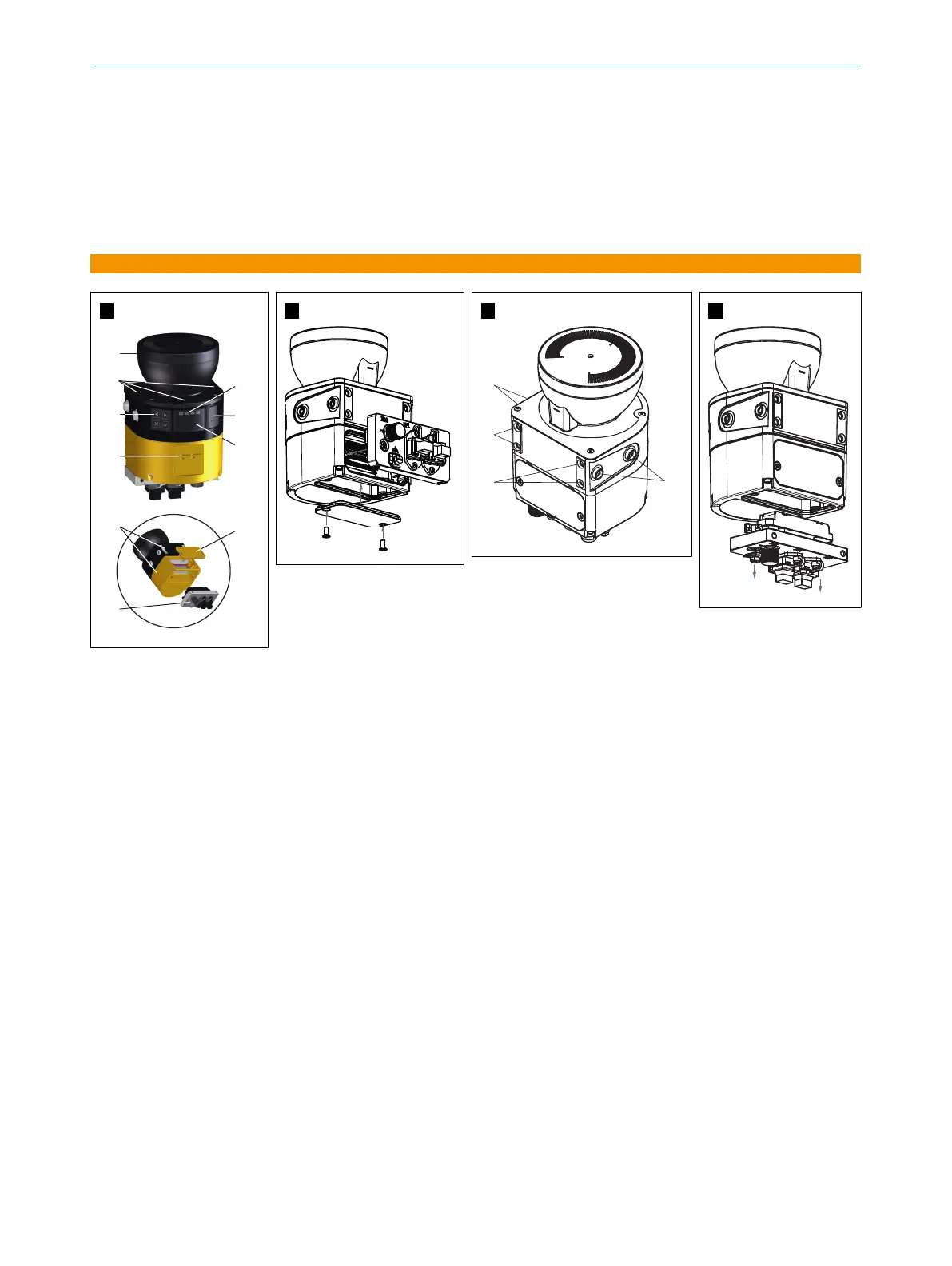

MOUNTING INSTRUCTIONS
8021229/13IA/2019-05-16 | SICK M O U N T I N G I N S T R U C T I O N S | microScan3 – PROFINET (RJ45, SCRJ)
17
Subject to change without notice

SICK microScan3 - PROFINET Specifications

General

Number of fields	128
Protective field range	Up to 5.5 m
Number of monitoring cases	128
Number of simultaneously monitored protective fields	8
Number of simultaneously monitored warning fields	8
Angular resolution	0.1°
Response time	30 ms
Interfaces	PROFINET
Safety integrity level	SIL3 (IEC 61508)
Performance level	PL e (ISO 13849-1)
Ambient operating temperature	+50 °C
Protection class	IP65
Supply voltage	24 V DC
Storage temperature	–25 °C ... +70 °C
Housing material	plastic
