SICK ReLy EMSS1 - Dimensional Drawings; Electrical Service Life; Dimensional Drawing

0,1 0,5 1,0 5,0 10
1
0
100
1000
10000
1
→
2
→
DC 1: 24V
AC 1: 230V
AC 15: 230V
DC 13: 24V

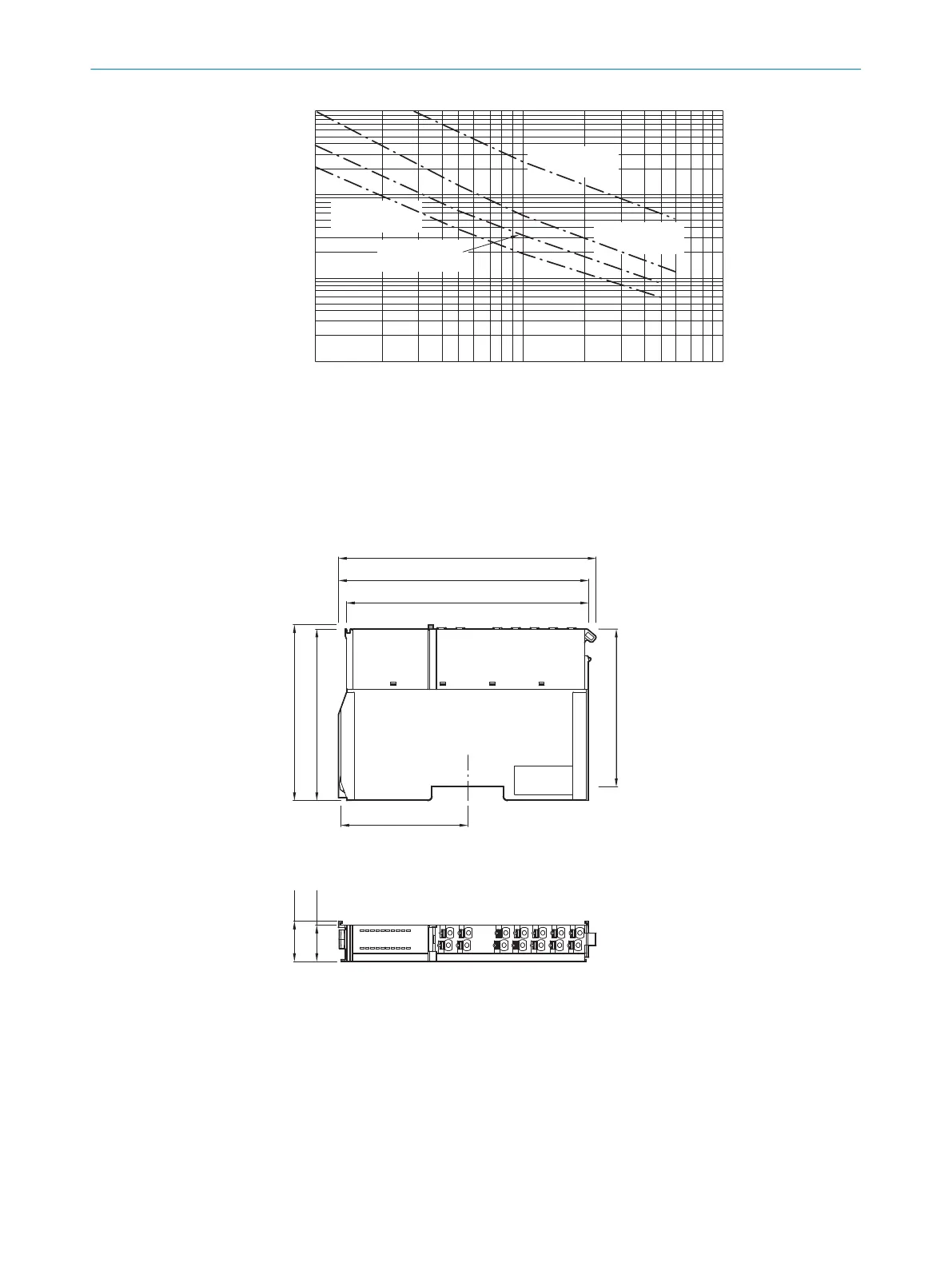

Figure 12: Electrical service life
1
Switching operations × 1,000
2
Switching current (A)
10.2 Dimensional drawings
64,4
120,7
124,6
128,3
85,5 87,7
18 20,1
78,7
Figure 13: Dimensional drawing
10 T
ECHNICAL DATA
30
