SICK RFH5 Series

3.2 Product characteristics
3.2.1 Device view
Ø 16.4 (0.65)
M18 x 1
M12 x 1
63.5 (2.50)
21.5 (0.85)
13.5 (0.53)
11 (0.43)
8 (0.31)
10 (0.39)4 (0.16)
1
2
3
4
5
6

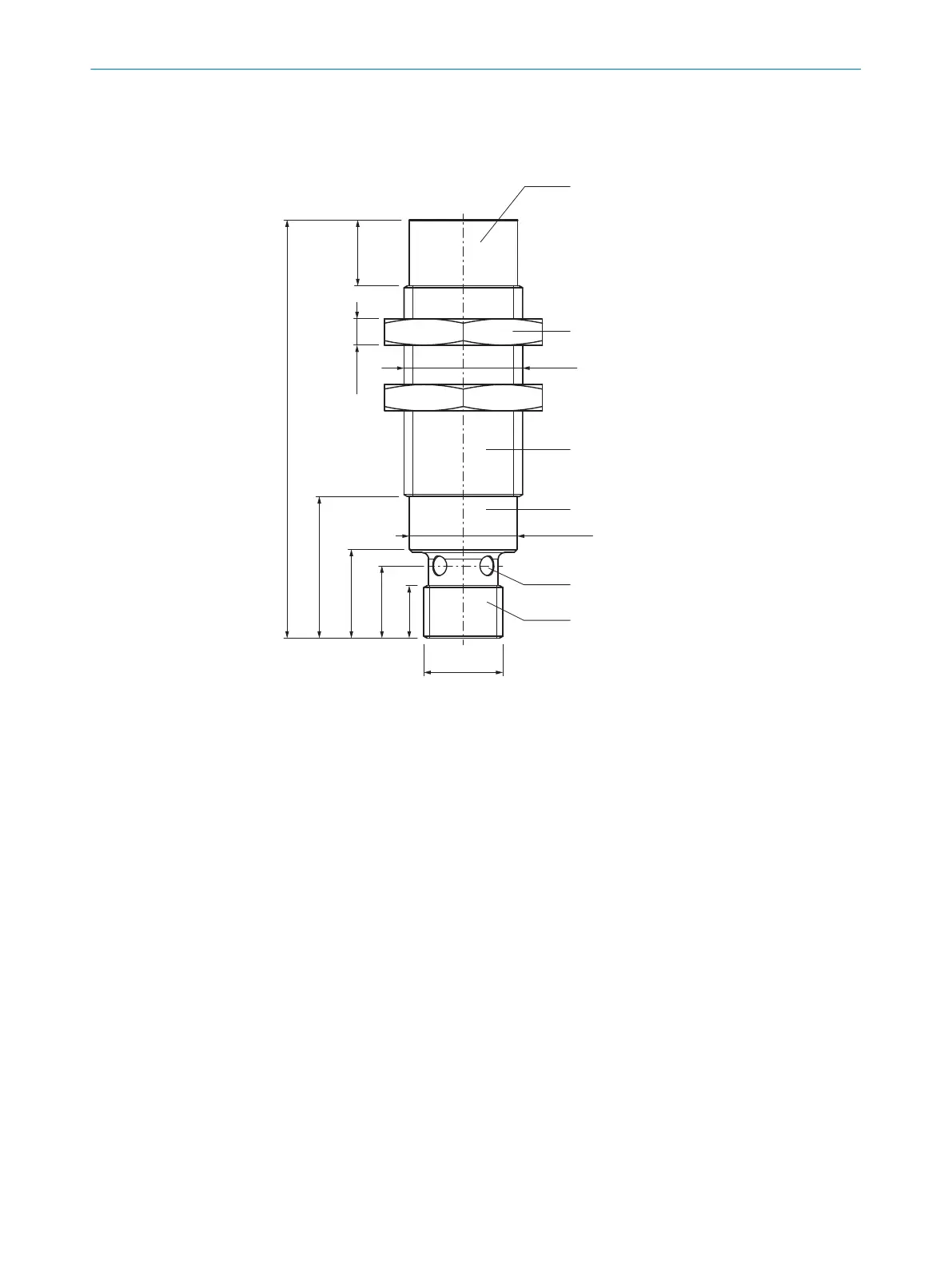

Figure 4: RFH505: Structure and dimensions, unit: mm (inch), decimal separator: period
1
Cap with integrated antenna
2
2 x fixing nuts, width across flats SW 24
3
Male thread (M18)
4
Field for product identification data
5
4xLED, multi-colored (process feedback)
6
IO-Link connection (male connector, M12, 4-pin, A-coded)
