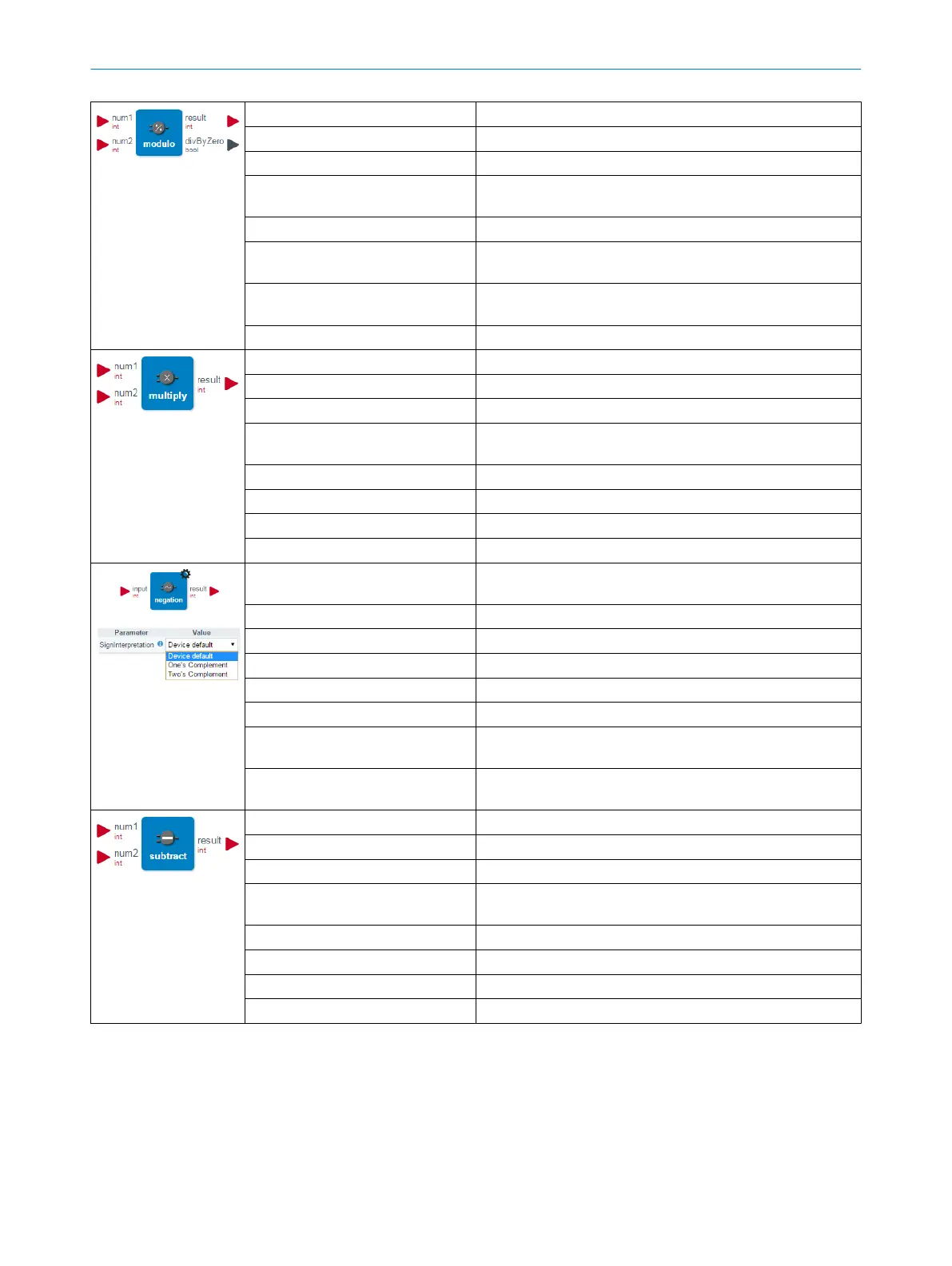

Description Modulo operation between the two input values.
Number of inputs 2
Input data type Integer
Input description num1: first input value
num2: second input value
Number of outputs 2
Output data type Output 1 ("/"): Identical to input data type
Output 2 ("/0"): 1-bit
Output description result: Result with rest after dividing the two input values
divByZero: When dividing by 0 (not possible) this output is set
Settings No settings available
Description Multiplication between the two input values.
Number of inputs 2
Input data type Integer
Input description num1: first input value
num2: second input value
Number of outputs 1
Output data type Output 1 ("x"): Identical to input data type
Output description result: Result after multiplying the two input values
Settings No settings available
Description Negation of the input value either one´s or two´s comple‐
ment depending on the configuration.
Number of inputs 1
Input data type Signed Integer
Input description input: analog input value
Number of outputs 1
Output data type Output 1 ("-"): Identical to input data type
Output description result: The one's or two's complement of the input value. (So
the analog output value is the opposite of the input value).
Settings Selection of the one's or two's complement (Default Two's
Complement)
Description Subtraction of the two input values.
Number of inputs 2
Input data type Integer
Input description num1: first input value
num2: second input value
Number of outputs 1
Output data type Output 1 ("-"): Identical to input data type
Output description result: Result after subtraction of the two input values
Settings No settings available
