SICK SiLink2 Master IOLA2US-01101 - Installation with FDT Container

Operating instructions IO-Link USB Master SiLink2 Master
Installing Software
14 ©SICKAG•PresenceDetection•Subjecttochangewithoutnotice•8017387
2. InstallSOPASETcongurationprogramaccordingtotheinstallation
wizard.
3. InstallSDDleoftheIO-Linkdevice.
4. ConnectSiLink2MastertothePCandtotheIO-Linkdevice.
→SeePage11,Chapter5.
5. ConnectIO-LinkdeviceaccordingtotheConnectionWizardforIO-Link.

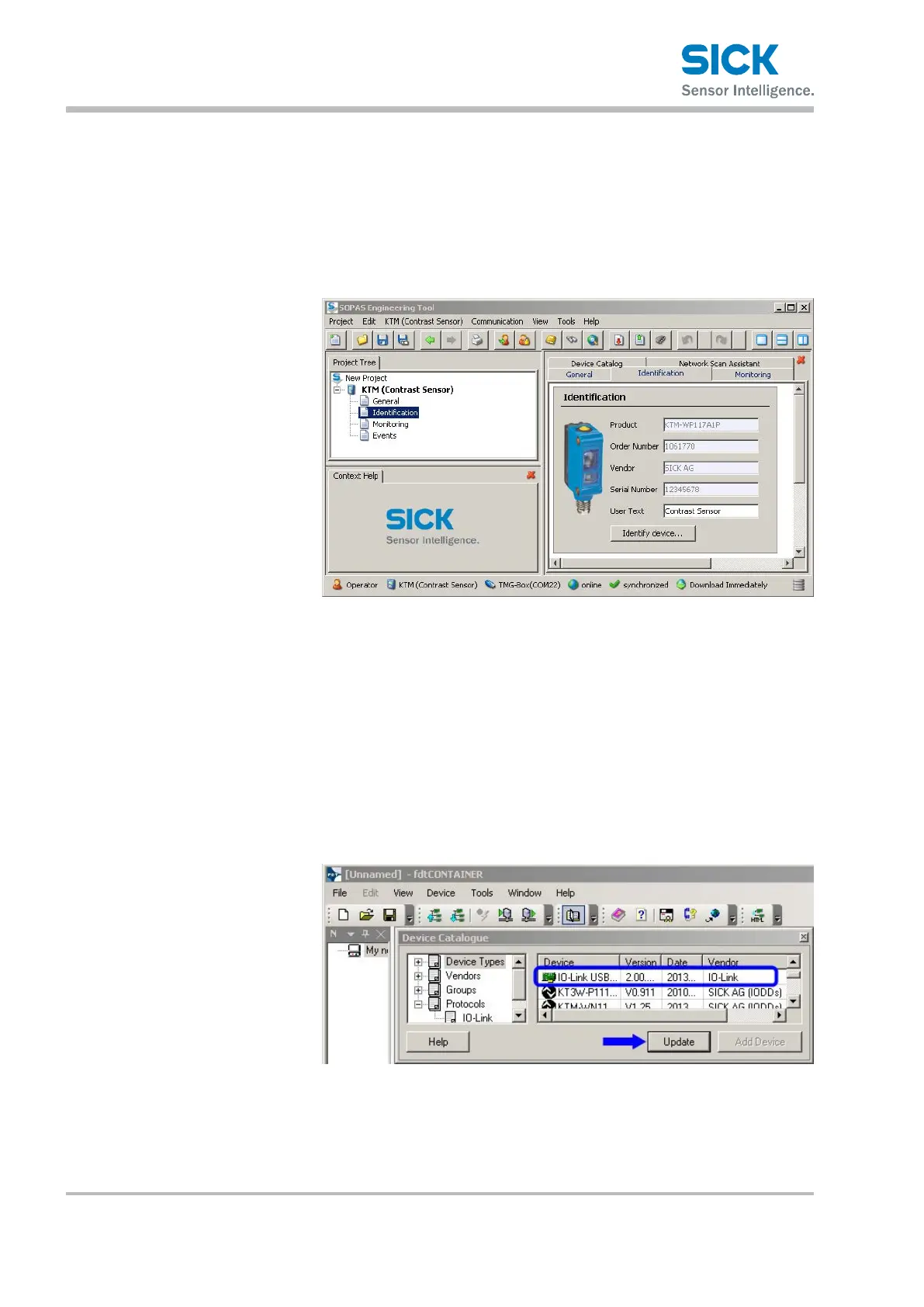

Fig. 8: IO-Link device in SOPAS ET
6.3 InstallationwithFDTContainer
YoucanusethegatewayDTMfromversion2.00upwards.
1. Startinstallationofthegatewayusingthe'setup.exe'le.
2. InstallDTMoftheIO-LinkdeviceorIODDinterpreter.Inordertodothis,
startinstallationusingthe'setup.exe'le.
3. UpdatedevicecatalogviatheFDT-basedcongurationprogram.
Inordertodothis,clickthe'Update'button.
Fig. 9: Update device catalog
