SICK WTB4S-3 - Page 43

Image: C
Image: G

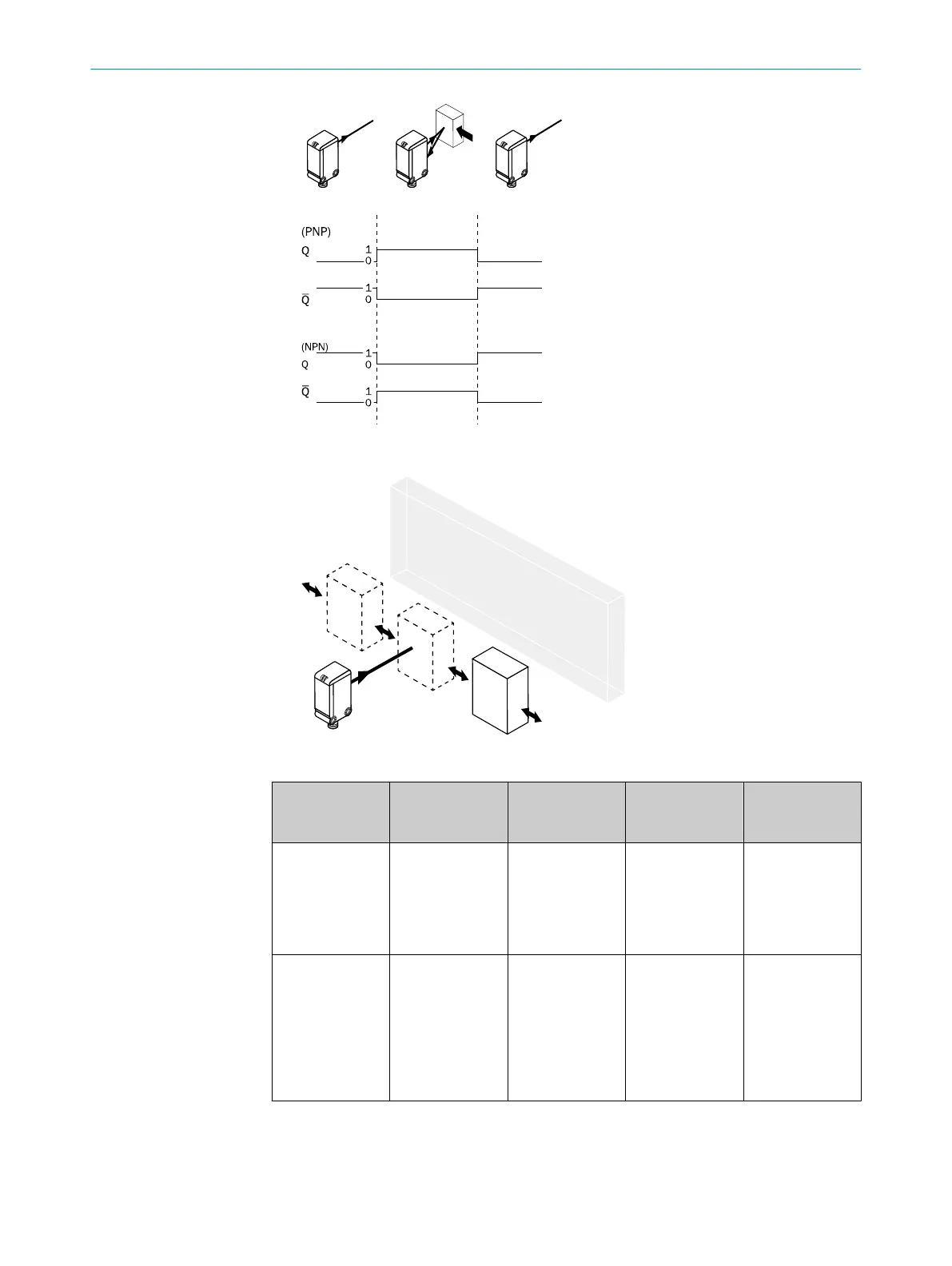

物体示教模式 /
Teach-in mode
for objects
示教时间 /
Teach-in time
校准 /
Alignment
LED 指示灯 /
LED indicator
结果 /
Results
单示教按键 /
Single teach-in
pushbutton
约 0.5 s /
Approx. 0.5 s
传感器光点朝向
物体 /
Sensor to object

根据物体调整开
关距离 /
Sensing range
is adjusted
according to
object
ET：将 Pin 2 或
白色缆芯连接至
UV > 2 … < 2 s
(PNP)。 /
ET: Connect pin
2 or white wire
to UV for > 2 to
< 2 s (PNP).
> 2 s 传感器光点朝向
物体 /
Sensor to object

根据物体调整开
关距离 /
Sensing range
is adjusted
according to
object
53
故障诊断
表 I 中罗列了传感器无法执行某项功能时应采取的各项措施。
