SICK WTM10L - Page 56

0
10
(0.39)
20
(0.79)
0
Minimum object height in mm (inch)
Distance in mm (inch)
Recommended sensing range for
the best performance
30
(1.18)
y
x
450
(17.72)
350
(13.78)
250
(9.84)
150
(5.91)
50
(1.97)
2
6%/6%
90%/6%
33
6%/6%
90%/6%
6%/6%
90%/6%
1
Example:
Reliable detection of the object
Black background (6 % remission factor)
Distance of sensor to background x = 300 mm
Required minimum object height y = 10 mm
For all objects regardless of their colors
Background
x
y

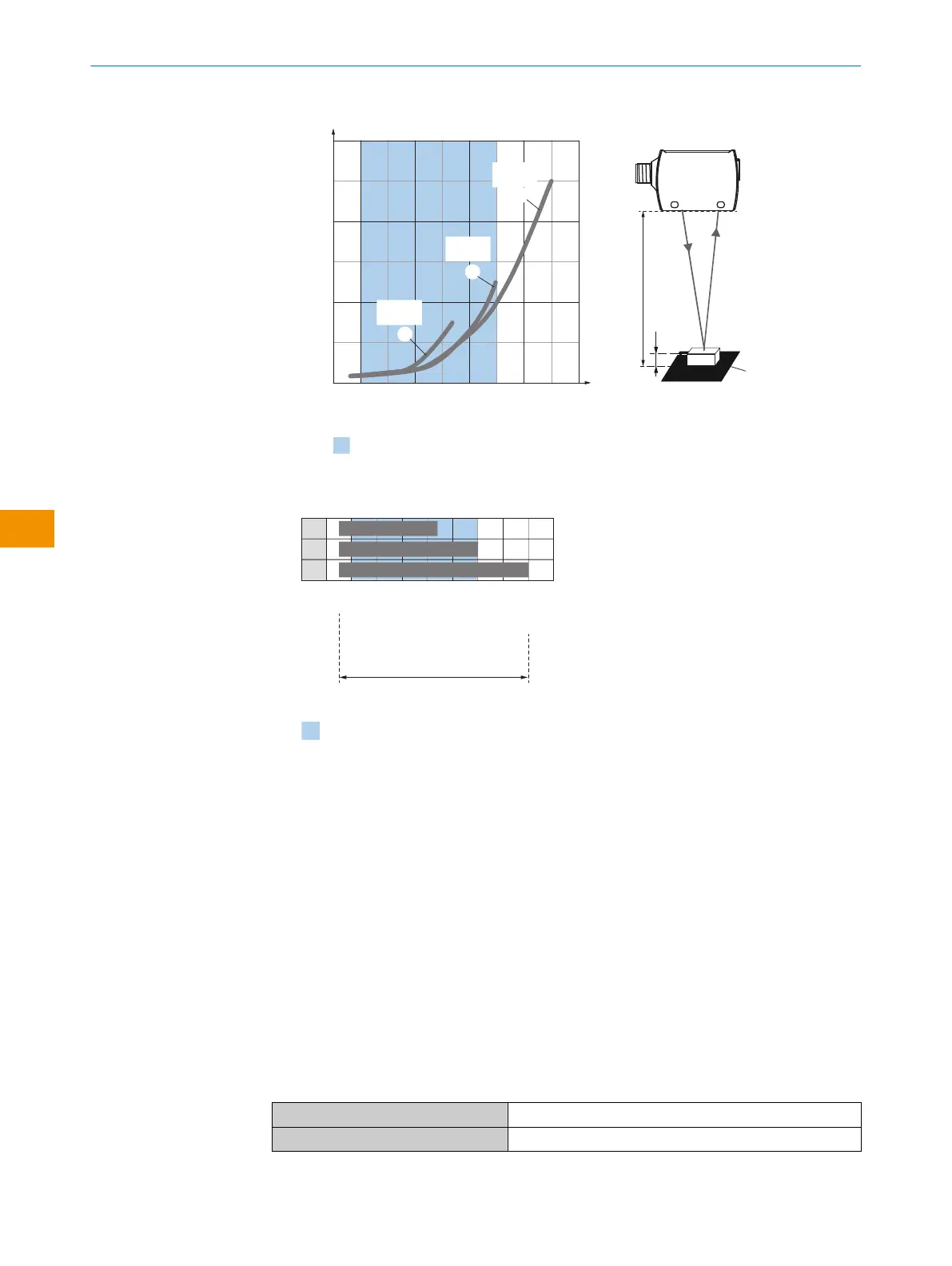

Figure 16: Characteristic curve, WTM10L-xxxxx2
0
Distance in mm (inch)
1
2
3
C/D
A
B
Recommended sensing range for
the best performance
450
(17.72)
350
(13.78)
250
(9.84)
150
(5.91)
50
(1.97)
25
25
400
300
25
220
Figure 17: WTM10L-xxxxx2
1
Black object, 6% remission factor, Mode 1: Speed
2
Black object, 6% remission factor, Mode 2: Standard
3
Black object, 6% remission factor, Mode 3: Precision
A Sensing range min. in mm
B Sensing range max. in mm
C Field of view
D Adjustable switching threshold for background suppression
Blue Recommended sensing range for the best performance
6.4 Settings
Factory configuration
The following configurations are preconfigured:
Table 11: Factory configurations
Detection mode BGS
Operating mode Standard mode
