Sicma S.p.A.
Miglianico (CH)
page 20
Get rid of exhaust oil in compliance with the relevant rules of
the country where you operate. It is thus forbidden to pour it
on the ground.
Before executing maintenance activities on the machine, stop
engine, disengage power takeoff, pull parking brake and
place the equipment on the ground.
BLADES REPLACEMENT
To assure a perfect functioning of the machine, check often that its hoes are in good condition and
perfectly fixed by the locking bolts; in case they are broken or bent replace them with new spare
parts, remembering to keep always the original position.
CS, ST, SM, SP, RG, SF, SD, HLV-HLF, SHV-SHF-SHE and SM-F tillers are equipped with 6 hoes
per flange; on CS, ST and SM models it is possible to reduce their number to 4 when particular soil
conditions require this modification.
Before starting the hoes replacement activities, stop engine,
pull parking brake and disengage power takeoff; lift then the
tiller with the tractor elevator and place it on supports to
avoid an accidental fall.

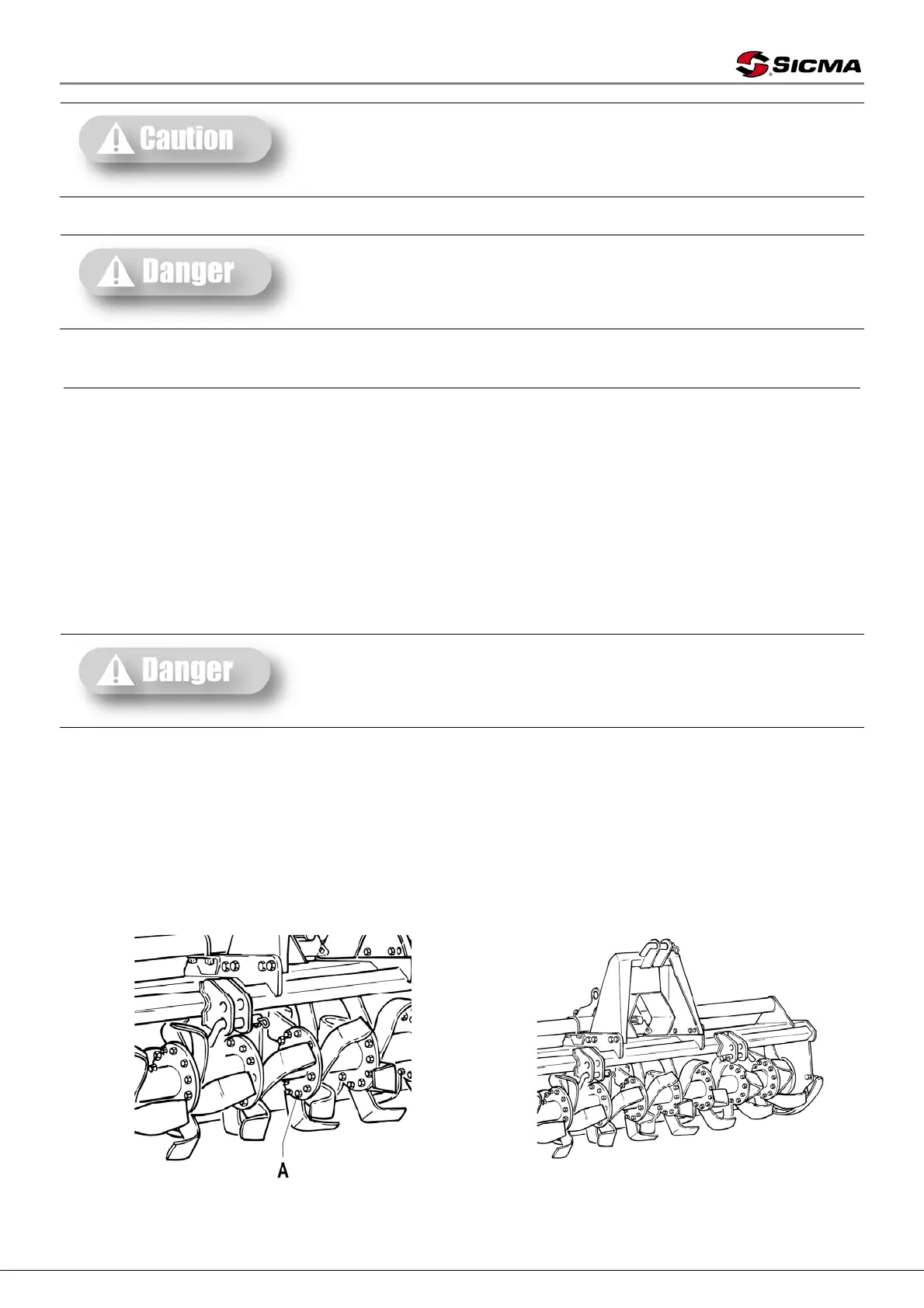

Pay attention to hoes bolts A (picture 25): these ones must be assembled with their screwhead on
the hoes side and their washer and nut on the flange side; bolts, thus, will not unscrew while the
machine is being used.
If you have to replace a sequence of more than one hoe, do it one by one in order to keep as better
as you can the original helical-run position (picture 26).
Picture 25 Picture 26
