Side-Power SP 155 TC User Manual

30
SP 155 TC / SP 200 TC / SP 220 TC / SP 285 TC 2.0 - 2002
1
5 6 7 8 9 10 11 12 1413 15
16
17
18
19
20
21
22
25
27
23
24
28
29
30
31
33
34
35
36
37 38 39
40
47
43
46
49
68
48
5253545556575859
666564
6162 60
67
2 3 4
51 50
26
41
45
44
63
32
42

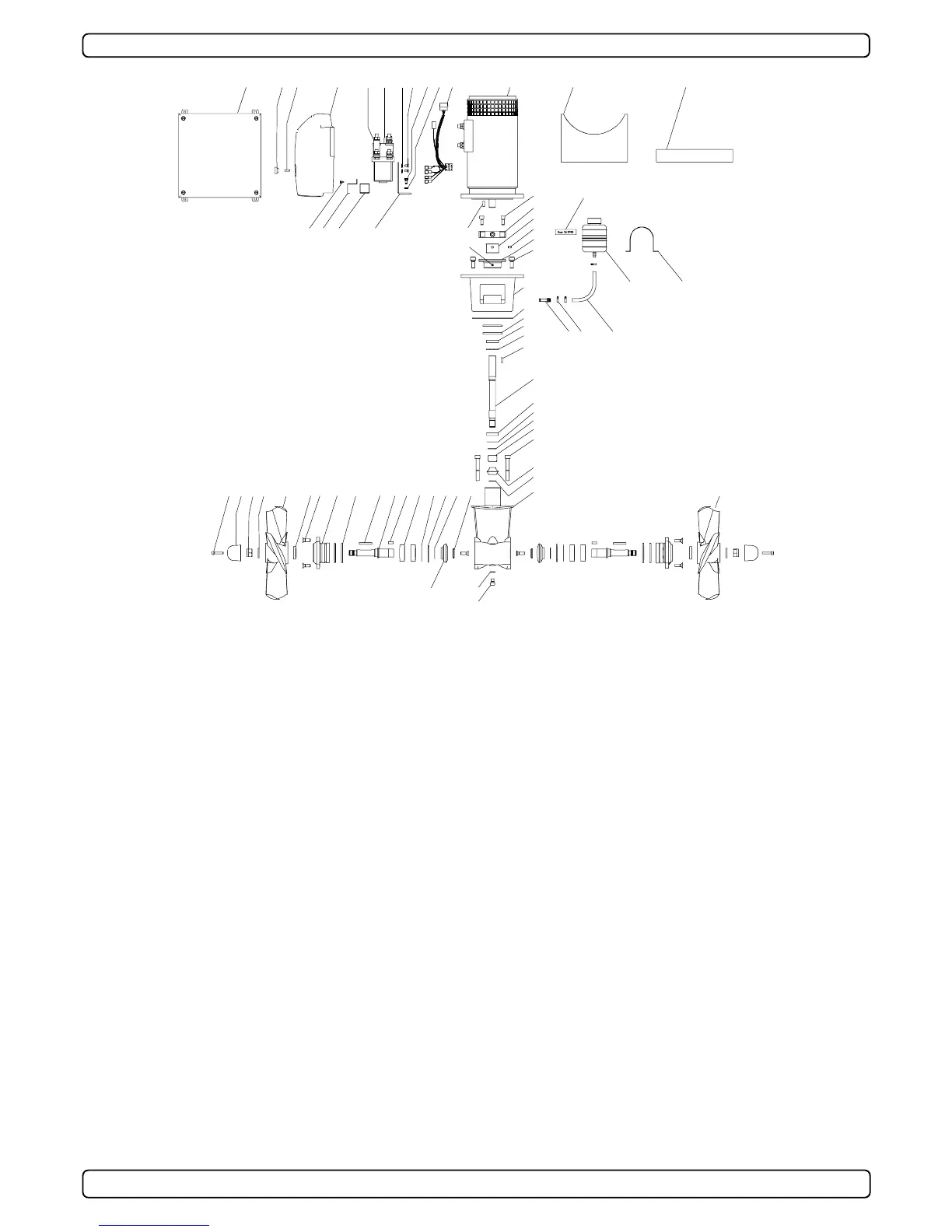

Spareparts SP 285 TC/ SP 200 TC 32V
#: Pcs.: Part. #: Description
20-2000 Service gearhouse w/props
10 1000 Zinc anode kit
2 2 Zinc anode
1 2 Screw (M6x30 DIN6912 A4)
20 1001 Screw / Bolt kit
7 6 Screw (M8x25 DIN7991 A4)
25 2 Bolt (M10x50 DIN912 A2)
43 4 Bolt (M10x30 DIN912 A2)
51 2 Spring Washer (DIN6798 - A6)
52 2 Bolt (M6x12 DIN933 A2)
53 4 Bolt (M5x8 DIN7985 A2)
54 4 Spring Washer (DIN6798 - A5)
20 1002 Bearing kit
14 2 Shims 42-52-0,1/0,3/0.5
16 4 Shims 25-35-0,1
13 4 Ball bearing
29 1 Ball bearing
20 1003 Gear kit
17 2 Crown wheel
24 1 Pinion drive
30 1 Drive shaft
23 1 Retaining ring
32 1 Retaining ring
27 1 Retaining ring
18 2 Washer
26 1 Needle bearing
20 1004 Key kit
10 2 Propeller key (6x6x40 A4)
12 2 Key (6x6x16)
31 1 Key (6x6x16)
66 1 Key for motor (8x7x25 DIN6885)
10 1005 Oil plug kit
19 1 Gasket
20 1 Oil plug (M8x12 DIN912 A4)
20 1006 Sealing ring kit
9 4 O-ring (Ø56x3 70NBR)
35 1 Gasket 2mm
33 1 Sealing ring
6 2 Sealing ring
34 1 O-ring (Ø50x4 70NBR)
10 1007 Oil container kit
39 1 Oil hose
38 3 Hose clamp
41 1 Fastening bracket
#: Pcs.: Part. #: Description
37 1 Hose socket
40 1 Oil container
20 1008 Flexible coupling, complete
44 1 Locking skrew (M6x10 DIN916)
46 1 Locking skrew (M6x10 DIN916)
45 1 Flexible coupling flange
48 1 20 1452 Rubber element
47 1 Flexible coupling hub
20 1009 Motor bracket, complete
36 1 Motor bracket
34 2 O-ring
43 4 Screw
37 1 Hose socket
20 1010 Motor 15kW 48V
52 1 Motor 15kW 48V
68 1 Key
15 1011 Relay kit 24V
58 1 Relay 24V
53 1 20 1273 Solenoid loom
67 1 Relay bracket
57 4 Spring Washer
56 4 Screw
55 2 Bolt
54 2 Spring Washer
15 1012 Relay cover, complete
60 1 Cover
62 2 Nut
61 2 Set screw
20 1013 Gear house with flange
22 1 Gear house
8 2 Flange
20 1014 Propeller nut with washer
3 2 Propeller nut, Nyloc (M16 DIN985 A4)
4 2 Washer
20 1015 Motor support
51 1 Holder
50 1 Rubber strip
5 1 20 1270 Propeller LH
21 1 20 1269 Propeller RH
11 2 20 1198 Propeller shaft
63 1 20 124 Converter box 24-48V
