IV394E Rev. 00
Installation and user manual
Date of issue:
2015-12-11
Pag. 33 di 34 + FR
Appendix 5. UPS message table
This section lists the event and alarm messages that the UPS might display. The
messages are listed in alphabetical order. This section is listed with each alarm message
to help you troubleshoot problems.

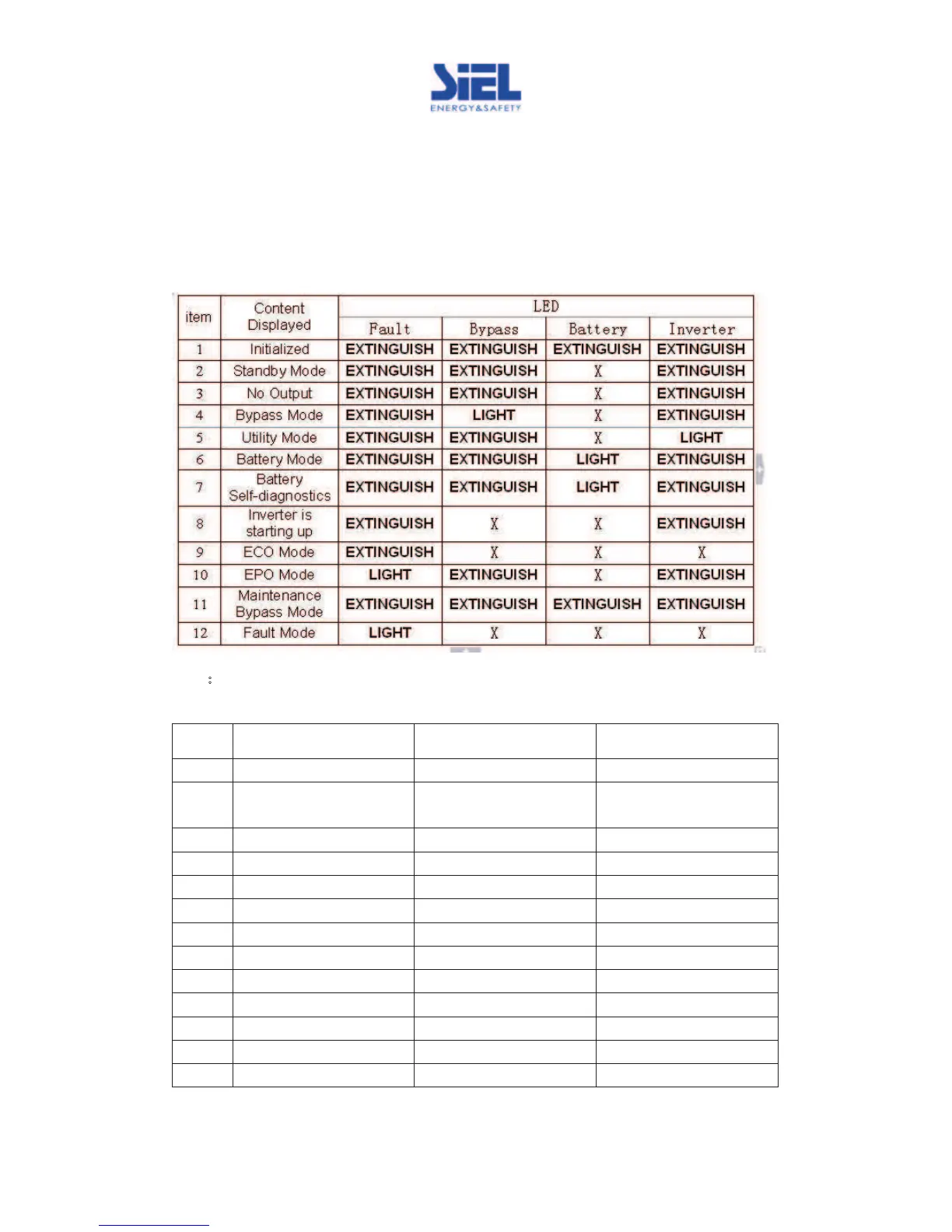

4.1 Operational Status and Mode(s)
Noteφ
“X” means that it will be determined by other conditions.
4.2 Alarm Information
Item
UPS Alarm Warning
Buzz LED
1
Rectifier Fault
Beep continuously
Fault LED lit
2
Inverter fault(I
ncluding
Inverter bridge is shorted)
Beep continuously Fault LED lit
3
Inverter Thyristor short
Beep continuously
Fault LED lit
4
Inverter Thyristor broken
Beep continuously
Fault LED lit
5
Bypass Thyristor short
Beep continuously
Fault LED lit
6
Bypass Thyristor broken
Beep continuously
Fault LED lit
7
Fuse broken
Beep continuously
Fault LED lit
8
Parallel relay fault
Beep continuously Fault LED lit
9
Fan fault
Beep continuously
Fault LED lit
10
Reserve
Beep continuously
Fault LED lit
11
Auxiliary power fault
Beep continuously
Fault LED lit
12
Initialization fault
Beep continuously
Fault LED lit
13
P-Battery Charger fault
Beep continuously
Fault LED lit
