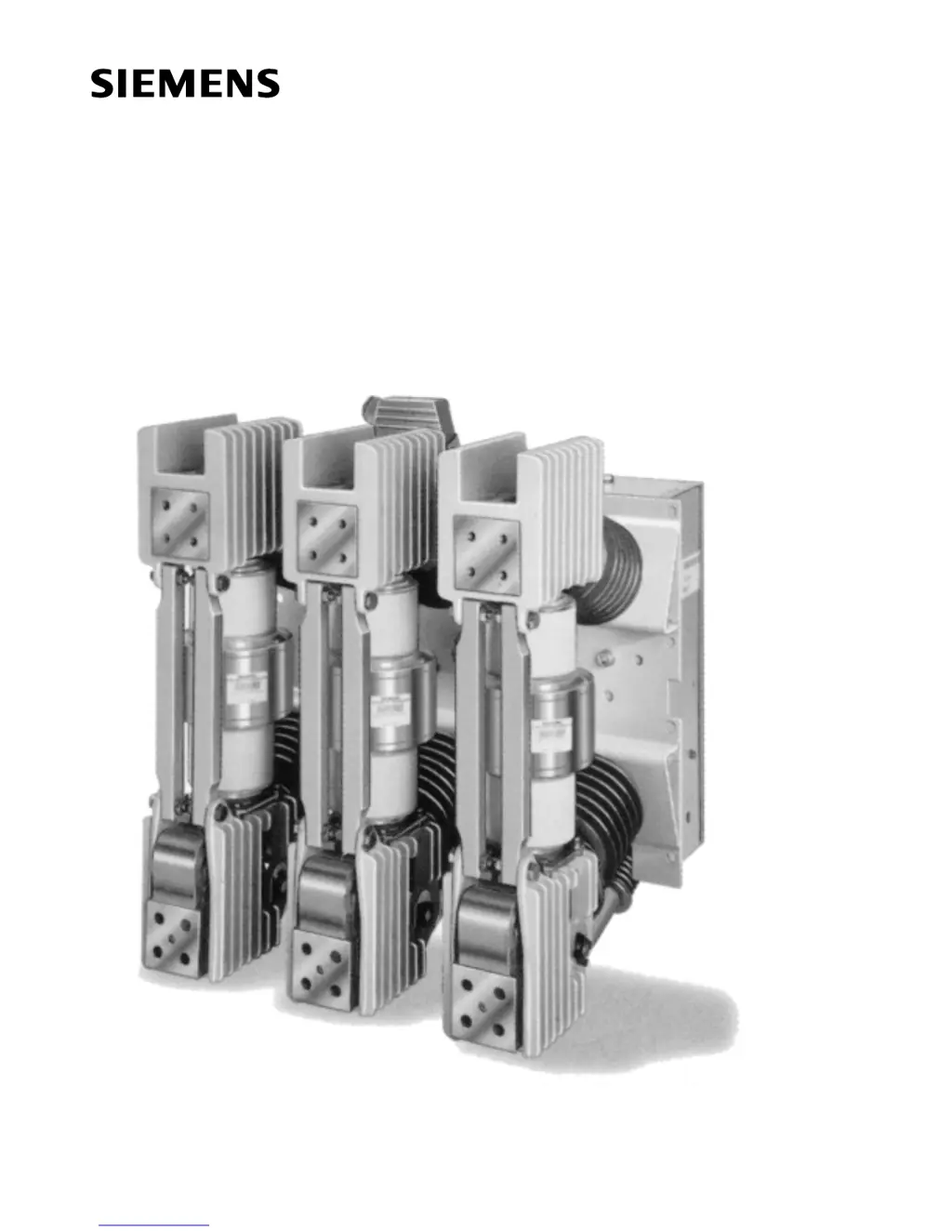

Vacuum Circuit Breaker
Operator Module
Type 3AH
4.16kV to 38kV
Instructions
Installation
Operation
Maintenance
SGIM-9918
Medium-Voltage
Equipment

Table of Contents

Other manuals for Siemens 3AH

Preview: Installation Operation & Maintenance
Installation Operation & Maintenance20 pages

Questions and Answers

  • O
    owenstabithaJul 28, 2025
    What to do if my Siemens 3AH circuit breaker will not trip?
    • E
      Elizabeth HarperJul 28, 2025
      If your Siemens Other circuit breaker won't trip, several factors could be at play. First, check if the secondary control power is de-energized or if the control power fuses are blown and correct as indicated. Inspect for any damage to wiring, terminals, or connectors, and repair as necessary. Also, verify that there is a tripping signal to secondary disconnect contact 1, check for continuity, and correct the relay logic. Ensure that secondary disconnect contacts 1 or 2 are engaging properly, and replace them if required. Check the trip coil (52T) for failure, and replace it if necessary. Finally, confirm that auxiliary switch NO contacts 23-24 or 33-34 are not open when the breaker is closed; check the linkage and switch, and replace or adjust as needed.
  • D
    David BentleyAug 3, 2025
    What causes a Siemens Other breaker to fail to close?
    • L
      lunadanielAug 3, 2025
      Several issues can cause a Siemens Other breaker to fail to close. The secondary control circuit might be de-energized, or the control circuit fuses could be blown; check and energize or replace if necessary. The secondary disconnect contacts 15 or 16 might not be engaging, so check and replace if required. Damage to wiring, terminals, or connectors could also be the cause; check and repair as necessary. A failure of the charging motor (88) or the motor cut-off switch LS21 or LS22 failing to operate can also prevent the breaker from closing, so replace if required. For a mechanical failure of operating mechanism, it is recommended to refer to factory or authorized service shop.
  • F
    Felicia BrownAug 12, 2025
    What causes nuisance or false trips in Siemens 3AH Other?
    • D
      deborahmorrisAug 12, 2025
      Nuisance or false trips in Siemens Other can stem from electrical or mechanical issues. If the tripping signal remains energized on secondary disconnect contact 1, check for improper relay logic. In the case of a mechanical problem, it could be due to a mechanical failure of the operating mechanism. Check and contact factory or authorized service shop.
  • H
    Hannah SchultzAug 19, 2025
    What to do if there is nuisance or false close in Siemens 3AH Other?
    • D
      Dr. Charlene MullenAug 19, 2025
      Nuisance or false closing in Siemens Other can be due to electrical or mechanical problems. For electrical issues, check for a nuisance or false closing signal to secondary disconnect contact 13, check the relay logic and correct as required. If the issue is mechanical, there may be a mechanical failure of operating mechanism. In this case, check and contact factory or authorized service shop.

Summary

Introduction and Safety

Introduction

Overview of the manual's purpose and scope for safe operation.

Qualified Person

Definition of a qualified person for safe equipment handling.

Signal Words

Explanation of hazard signal words (Danger, Warning, Caution).

Dangerous Procedures

Key safety procedures to follow during operation.

Field Service Operation

Information on obtaining Siemens field service support.

Receiving, Handling and Storage

Introduction

Purpose of the section for pre-installation inspection.

Receiving Procedure

Steps for inspecting shipping containers and contents.

Shipping Damage Claims

Procedure for reporting and handling shipment damage.

Handling Procedure

Guidelines for safely lifting and moving the circuit breaker.

Storage Procedure

Recommendations for indoor and outdoor storage conditions.

Installation Checks and Initial Functional Tests

Introduction

Overview of checks and tests for the breaker module.

Inspections, Checks and Tests without Control Power

Procedures for initial checks before applying power.

Spring Discharge Check

Verifying the breaker springs are discharged.

Manual Spring Charging Check

Procedure for manually charging the closing spring.

Automatic Spring Charging Check

Verifying automatic spring charging with control power.

Final Mechanical Inspections

Final checks of the breaker's mechanical state.

Interrupter;Operator Description

Introduction

Overview of the breaker operator's application and standards.

Vacuum Interrupters

Description and cutaway of vacuum interrupter.

Primary Disconnects

Details on primary disconnect pad provisions.

Phase Barriers

Information on insulating barriers.

Stored Energy Operating Mechanism

Description of the energy storage mechanism.

Interrupter;Operator Module

Overview of the integrated module.

Construction and Components

Details on construction, pole, current path, interrupter, and mechanism.

Mechanism Housing and Controls

Details on the mechanism housing, controls, and indicators.

Pole and Current Path Details

Further details on pole assembly connections and current path.

Vacuum Interrupter Movement and Switching Operation

Vacuum interrupter movement, closing and tripping sequences.

Operating Mechanism Functions

Explanation of operating mechanism functions.

Stored Energy Mechanism Details and Components

Detailed view and components of the stored energy mechanism.

Secondary Releases and Tripping Coils

Explanation of shunt and undervoltage trip coils.

Motor Operating Mechanism and Auxiliary Switch

Description of the motor and auxiliary switch functions.

Mode of Operation

Explanation of stored-energy trip-free operation.

Charging, Closing, and Tripping Sequences

Detailed sequences for charging, closing, and tripping.

Trip Free Operation

Mechanism for overriding closing by trip command.

Rapid Auto-Reclosing and Manual Operation

Capability for auto-reclosing and manual breaker operation procedures.

Secondary Release and Trip Functionality

Details on secondary (dual trip) and undervoltage releases.

Undervoltage Release and Release Construction

Undervoltage release function and construction of releases.

Capacitor Trip Device

Auxiliary tripping option for lack of control power.

Shock Absorber and Auxiliary Switch Functions

Purpose of shock absorber and role of auxiliary switch.

Maintenance

Introduction and Maintenance Intervals

Importance of periodic inspections and recommended intervals.

Recommended Hand Tools

List of tools for maintenance tasks.

Recommended Maintenance and Lubrication

Overview of periodic maintenance and lubrication.

Primary Power Path and Mechanism Checks

Inspection of primary path, disconnects, and mechanism.

Cleanliness and Lubrication Procedures

Cleaning procedures and lubrication guidelines for components.

Primary Power Path and Vacuum Integrity

Inspecting primary path, disconnects, and vacuum integrity.

Stored Energy Mechanism and Lubrication

Checking mechanism and applying lubrication.

Lubrication of Moving Parts

Lubrication guidelines for various components.

Fastener Inspection and Spring Charging Checks

Checking fasteners and performing spring charging/erosion checks.

Electrical Control Checks and Wiring Inspection

Verifying wiring, terminals, and control operations.

Automatic Spring Charging Check

Verifying automatic spring charging with control power.

Electrical Close and Trip Check

Testing close and trip functions with control power.

Vacuum Interrupter Vacuum Check

Mechanical check of vacuum interrupter integrity.

High-Potential Tests and Voltages

Procedures and voltages for HP tests.

Vacuum Integrity Test Procedure

Steps for testing vacuum integrity.

As-Found Insulation and Contact Resistance Tests

Verifying insulation and contact resistance.

Test Equipment Requirements

Equipment needed for insulation and resistance tests.

Insulation and Contact Resistance Test Procedure

Detailed procedure for HP and resistance tests.

Inspection and Cleaning of Breaker Insulation

Cleaning barriers and insulators.

Functional Tests

Performing manual and automatic charging checks.

Overhaul

Introduction to Overhaul

Guide to identifying and correcting malfunctions.

Recommended Overhaul Schedule

Recommended overhaul schedule based on operations.

Components for Replacement at Overhaul

Components to be replaced during overhaul.

Vacuum Interrupter Replacement Procedure

Procedure for replacing vacuum interrupters.

Removing the Vacuum Interrupter

Step-by-step guide for removing an interrupter.

Installing the Vacuum Interrupter

Step-by-step guide for installing a new interrupter.

Checking the Contact Stroke

Procedure for measuring contact stroke.

Hydraulic Shock Absorber Check

Examining the shock absorber for leaks.

Maintenance and Troubleshooting

Periodic Maintenance Tasks Summary

Summary of periodic maintenance tasks for each sub-assembly.

Troubleshooting: Breaker Fails to Close

Potential causes and remedies for closing failures.

Troubleshooting: Nuisance or False Close

Causes and remedies for unintended closing.

Troubleshooting: Circuit Breaker Will Not Trip

Causes and remedies for tripping failures.

Troubleshooting: Nuisance or False Trip

Causes and remedies for unintended tripping.

Appendix

Circuit Breaker Ratings (Constant MVA)

Technical specifications and ratings for 3AH circuit breakers.

Circuit Breaker Ratings (Constant kA)

Technical specifications and ratings using constant kA basis.

Siemens 3AH Specifications
