LEDs
CP 343-1 Lean
30 Equipment Manual, 01/2023, C79000−G8976−C198−09
LEDs for displaying the operating mode
The different combinations of the LEDs on the front panel indicate the status:

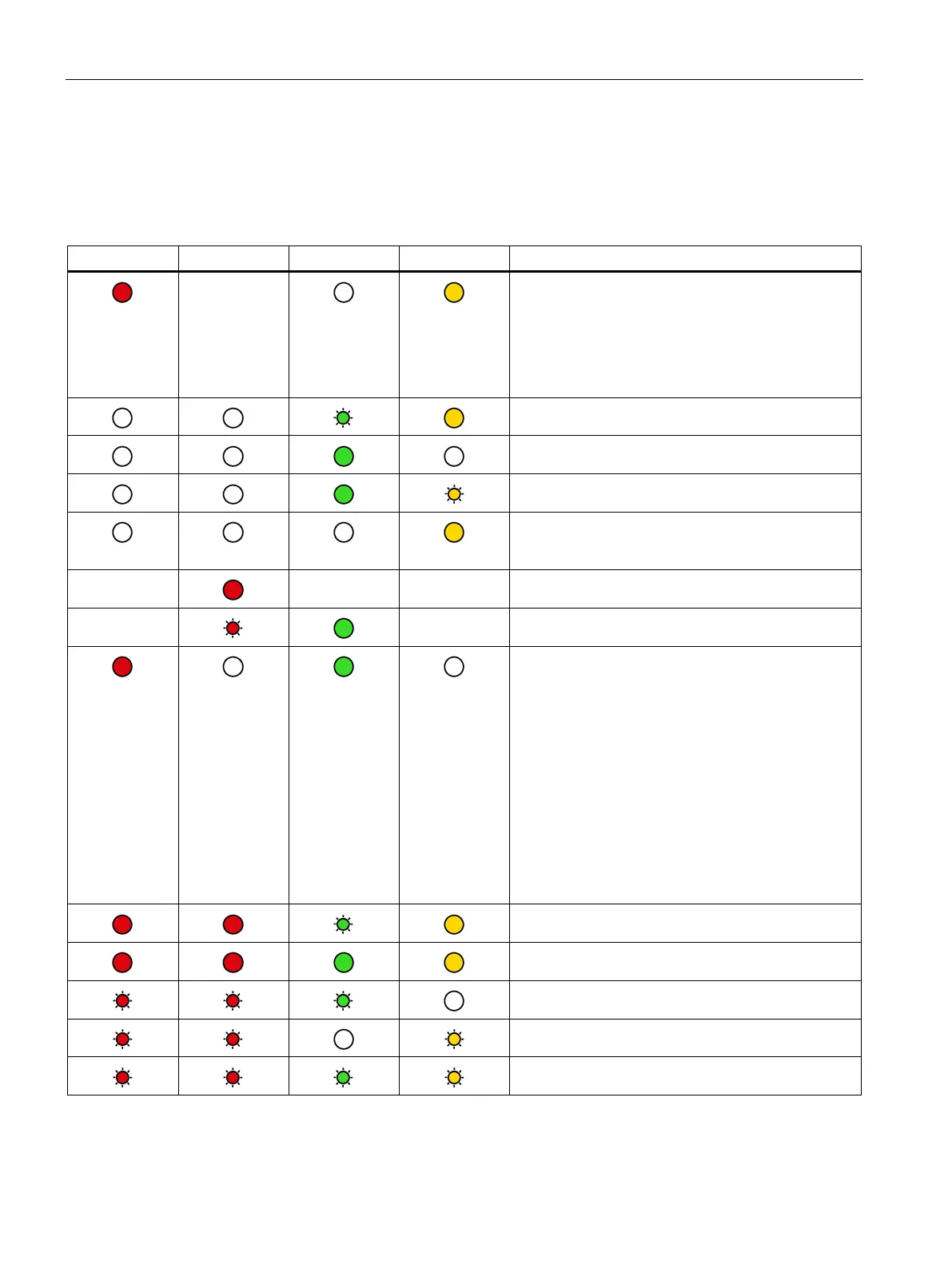

Table 4- 1 LEDs: SF, BF, RUN, STOP
• Starting up after power "ON"
or
• Stopped (STOP) with errors
In this state, the CPU or intelligent modules in the
rack remain accessible using PG functions.
Stopping (RUN → STOP)
Stopped (STOP)
In STOP mode, configuring and performing
diagnostics on the CP remain possible.
-
- - Duplicate IP address detected
The CP is configured as a PROFINET IO device; there is
no data exchange with the PROFINET IO controller.
Running (RUN) with error. Possible causes:
• Event display in conjunction with the MRP
function. The CP diagnostics buffer provides
detailed information.
or
• Extended port diagnostics reports an error.
Examples:
– Current port setting (transmission medium,
duplex) does not correspond to the
configuration.
– Port interconnection does not correspond to
the configuration.
Loading using the Firmware Loader is active. *
)
Firmware activation after loading using the Firmware
)
Firmware was successfully downloaded.
)
Firmware download aborted. *
)
Module fault / system error
)
Does not apply to loading via the update center in Web diagnostics.
