Requirement
• The connection box is de-energized.
• Torque screwdriver with T10 insert
Procedure

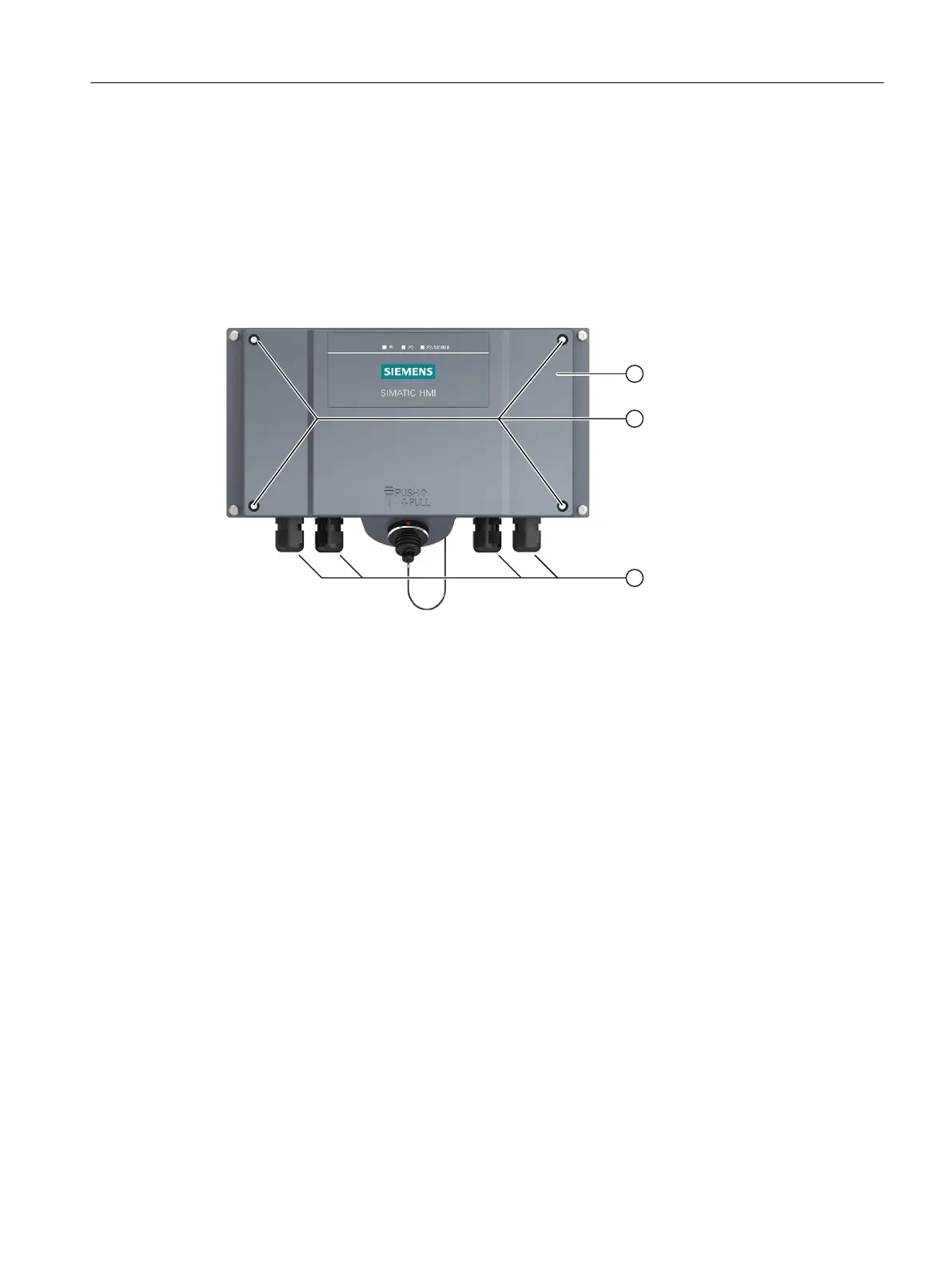

Open
① Cover
② Screws
③ Screw glands M16x1.5 for cable diameters 5 to 10 mm
Connecting
4.4 SIMATIC connection box
Handheld Terminal HT 10
Equipment Manual, 09/2020, A5E47430965B AA 43
