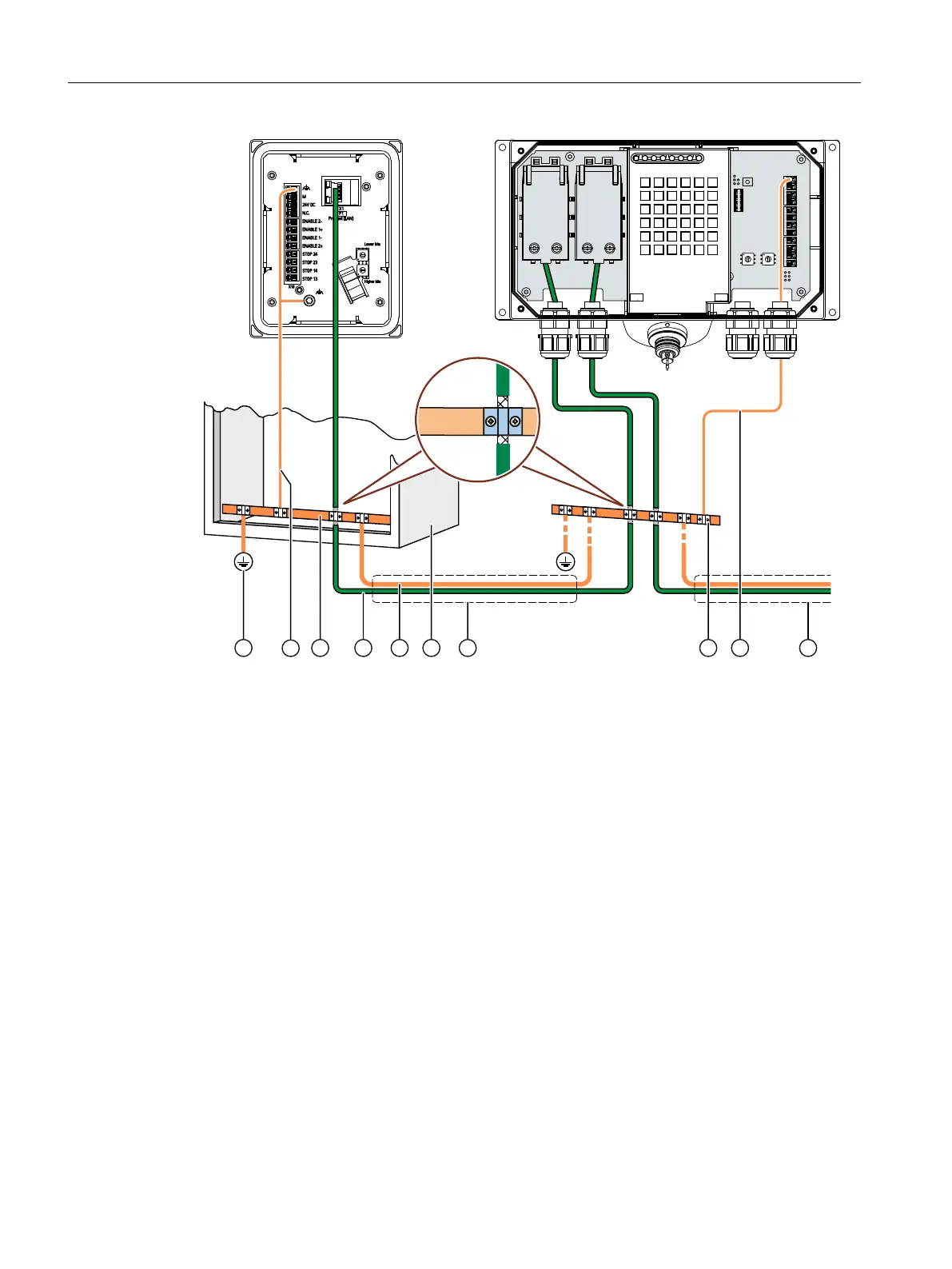

① Ground connection
② Equipotential bonding conductor, cross-section 1.5 mm
2
③ Equipotential busbar for equipotential bonding cables, grounding connection and shield support
of the data cables
④ Ethernet cable
⑤ Equipotential bonding conductor, cross-section ≥ 16 mm
2
⑥ Parallel routing of the equipotential bonding conductor and data cable
⑦ Cable clip
⑧ Control cabinet
Connecting
4.4 SIMATIC connection box
Handheld Terminal HT 10
46 Equipment Manual, 09/2020, A5E47430965B AA
