Note
Changing the box ID of a connection box
Observe the following information when changing the box ID of a connection box:
• If you want to change the box ID of a connection box, remove the connection box from its
power supply before you set the box ID with the rotary coding switch.
• After you have conrmed the changed box ID in the dialog "Safety operation", unplug the
HMI-device connecting cable from the connection box and then plug it into the connection
box again.

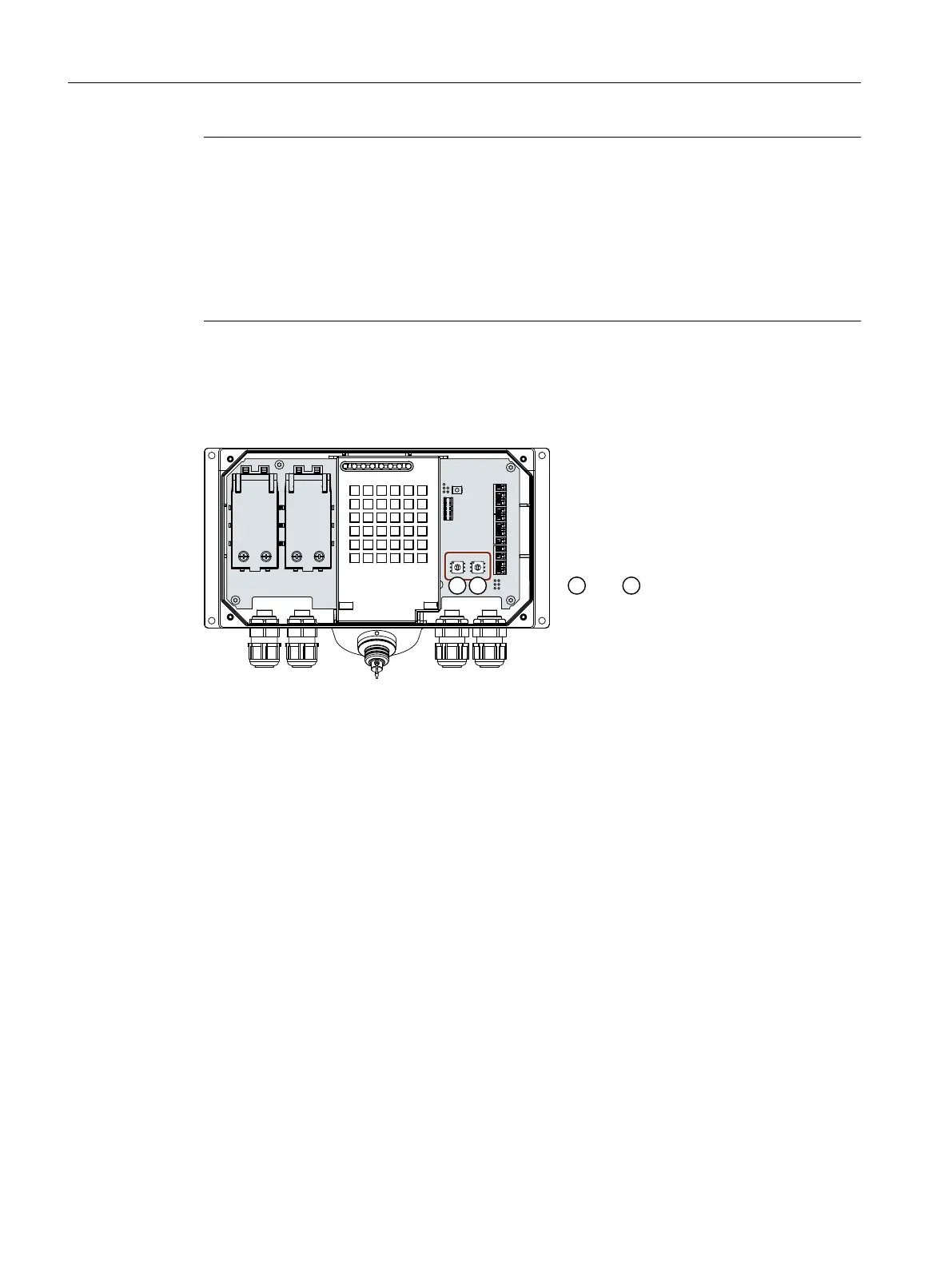

Rotary encoder switch
Position of the rotary coding switch in the connection box standard and advanced:
Requirement
• The connection box is open.
• The connection box is disconnected from its power supply.
• A suitable tool made of plastic
Connecting
4.4 SIMATIC connection box
Handheld Terminal HT 10
52 Equipment Manual, 09/2020, A5E47430965B AA
