Dimension drawings
10.6 PMC Style
SITRANS P300 with HART communication
Operating Instructions, 06/2005, A5E00359579-02
10-7

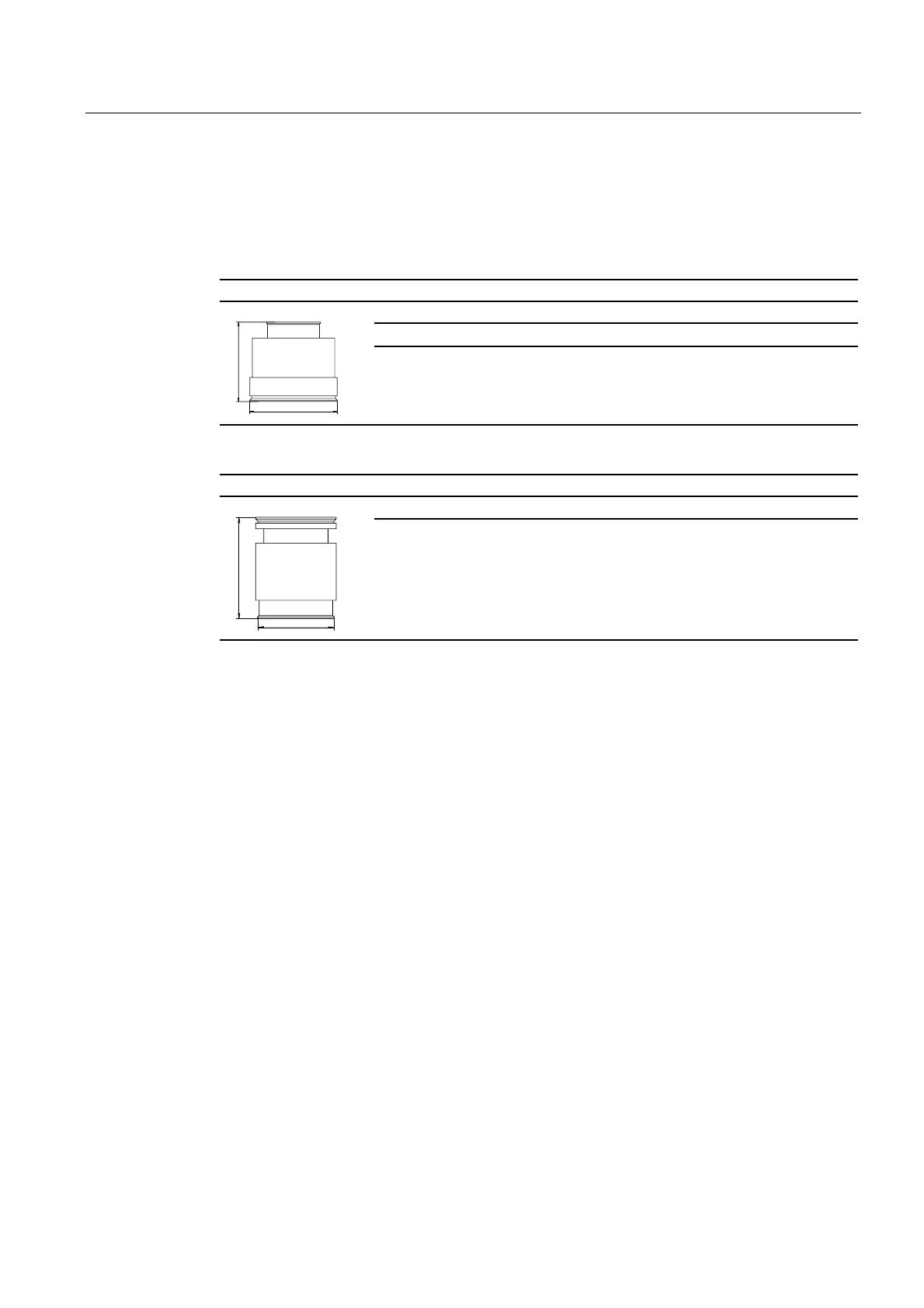

10.6 PMC Style
Connections for the paper industry
PMC Style Standard
DN PN ⊘D H
2
– – 40.4 mm (1.6'') Approx. 36.8 mm (1.4'')
'
+

M44x1.25 cap nut
PMC-Style Minibolt
DN PN ⊘D H
2
+
'
– – 26.3 mm (1'') Approx. 33.1 mm (1.3'')
