7XR6004 English
C53000-B119U-C137-1 15

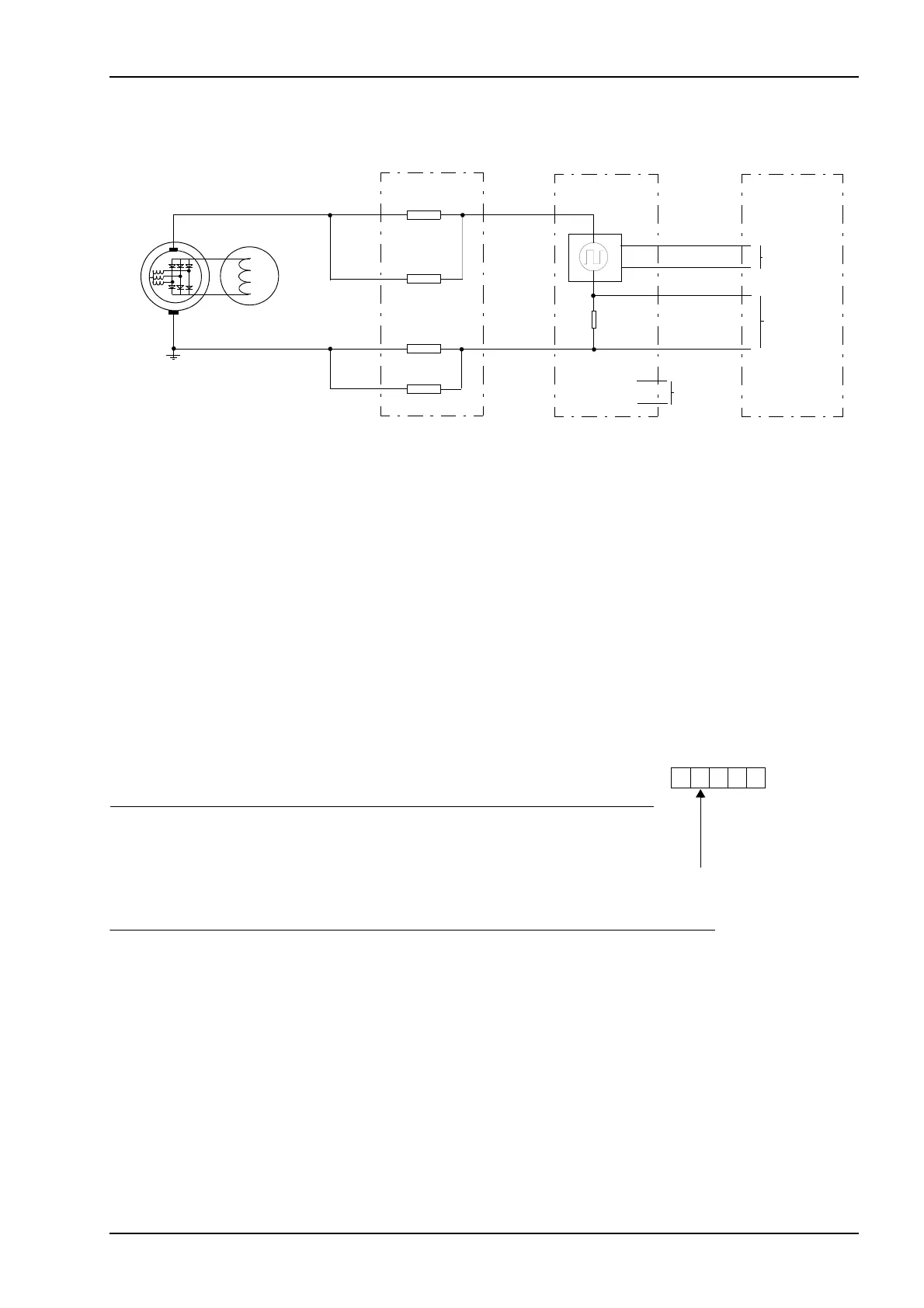

Figure 7 Connection example for excitation via rotating rectifiers with measurement brushes
Ordering Information
U
Steuer
U
Mess
7UM*
7XT71
7XR6004
A3
A11
A6
B11
B18
B14
27
25
21
19
17
15
100 V~
7
9
20 kΩ
20 kΩ
20 kΩ
20 kΩ
8 9 10 11 12
Resistor Unit
7 X R 6 0 0 4 – 0 A 0 0
Construction
B
C
Surface-mounting case for panel, screw-type terminals
Flush-mounting case for panel/cubicle, screw-type terminals
