English 7XT3400-0*A00/DD
10 C53000-B119U-C130-1

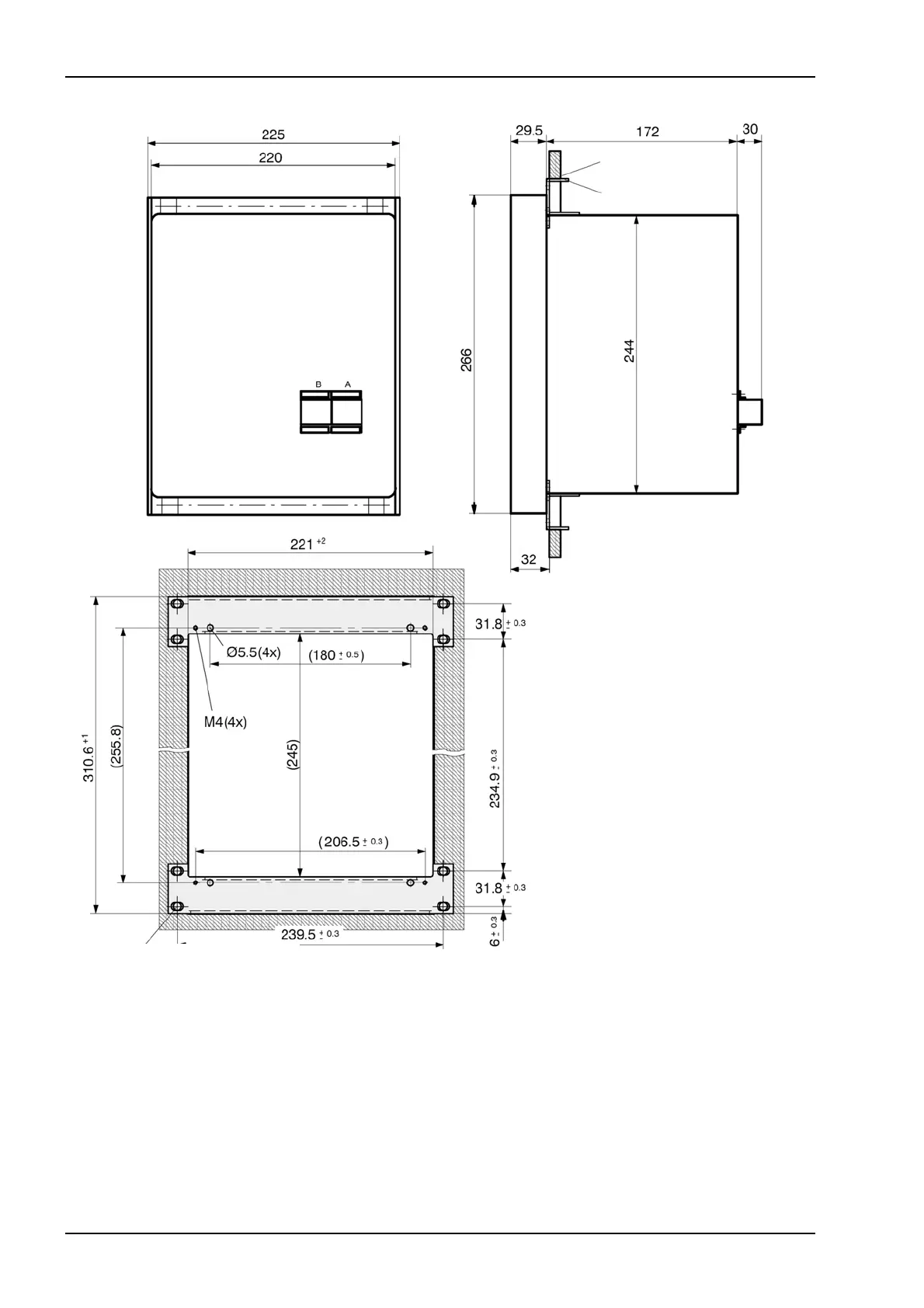

Figure 4 7XT34 Housing for panel flush mounting or cubicle installation 7XP20 40-2
Mounting plate
Set square *)
Hole diameter 7 mm (8 ×)
for screws size M6
For panel flush mounting, 2 set squares
C73165- A63-C201-1, 4 distance ele-
ments C73165-A63-C203-1 and 8 stand-
ard screws size M4 are necessary since
the mounting rails of the device are not
sufficient for the high weight of the de-
vice.
Fix the set squares to the panel, using 8
standard screws size M6, according to
the drawing.
Mount the device to the set squares us-
ing standard screws size M4.
If the device is mounted in switch-gear
cabinets, the set squares can be omitted
provided the cabinet processes ade-
quate solid mounting rails. If not, use 2
set squares C73165-A63-C200-2 (size
28 SEP = 19 inches)
*)
Dimensions in mm
