A baud rate of 300 bps is only intended for paging applications.
2
Serial number = PA-0302B222-01, Unit ID = 2222
3
NOMINAL VOLTAGE must be set to your system’s nominal voltage to
activate the meter’s power quality features.
Step 9: Verify Meter Operation

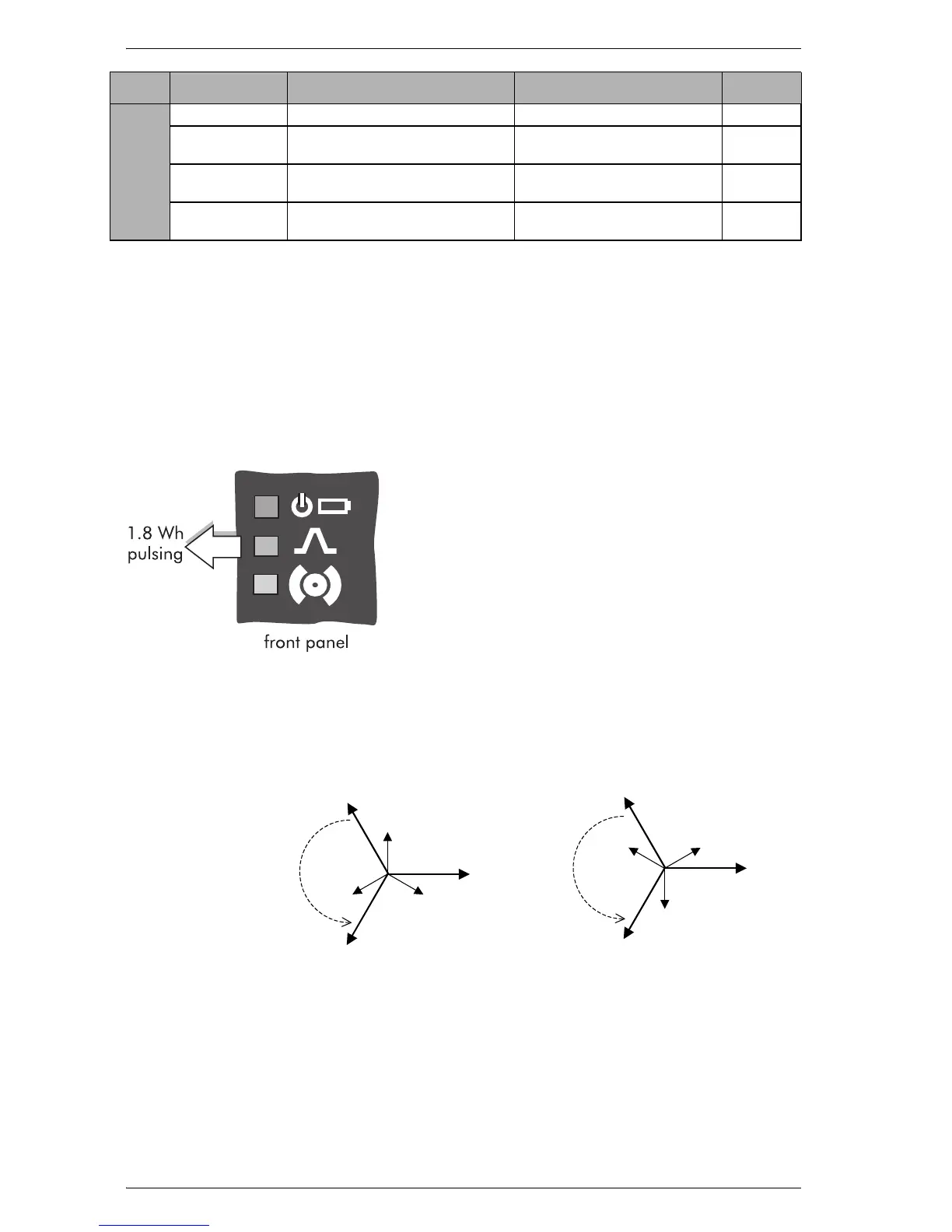

The LEDs on the back of the meter flash during communications. The LEDs
on the Front Panel indicate the following:
Phasor Diagrams
DELTA phasors for UNITY Power Factor (resistive load)
Applicable Volts Mode = DELTA
SECURITY
SETUP
PASSWORD Sets the meter password 00000000 to 99999999 00000000
ENABLED
Enables or disables security on the
meter
Yes o r No N o
WEB CONFIG
Enables or disables web browser
configuration of the meter
Enabled or Disabled Enabled
WEB ACTIVE
Enables or disables internal web
server on the meter
Yes o r No Ye s
Menu Setting Description Range (Values) Default
Top (green) LED indicates the meter is operational. The light
should always remain on when the meter is in service.
Middle (red) LED is a 1.8 Wh pulser. During normal
operations this LED should blink intermittently as the meter
measures power.
Bottom (red) LED is user programmable. It can be used for
Alarm notification. See the
9510 / 9610 User Guide
for
more information.
IA
IC
IB
VAB
VBC
VCA
IA
IC
IB
VAB
VBC
VCA
ABC Rotation
