Siemens ACVATIX SAYxP Series User Manual

7 / 10
Siemens Electromotoric actuators for valves A6V10628469_de--_c
Building Technologies 2018-03-12

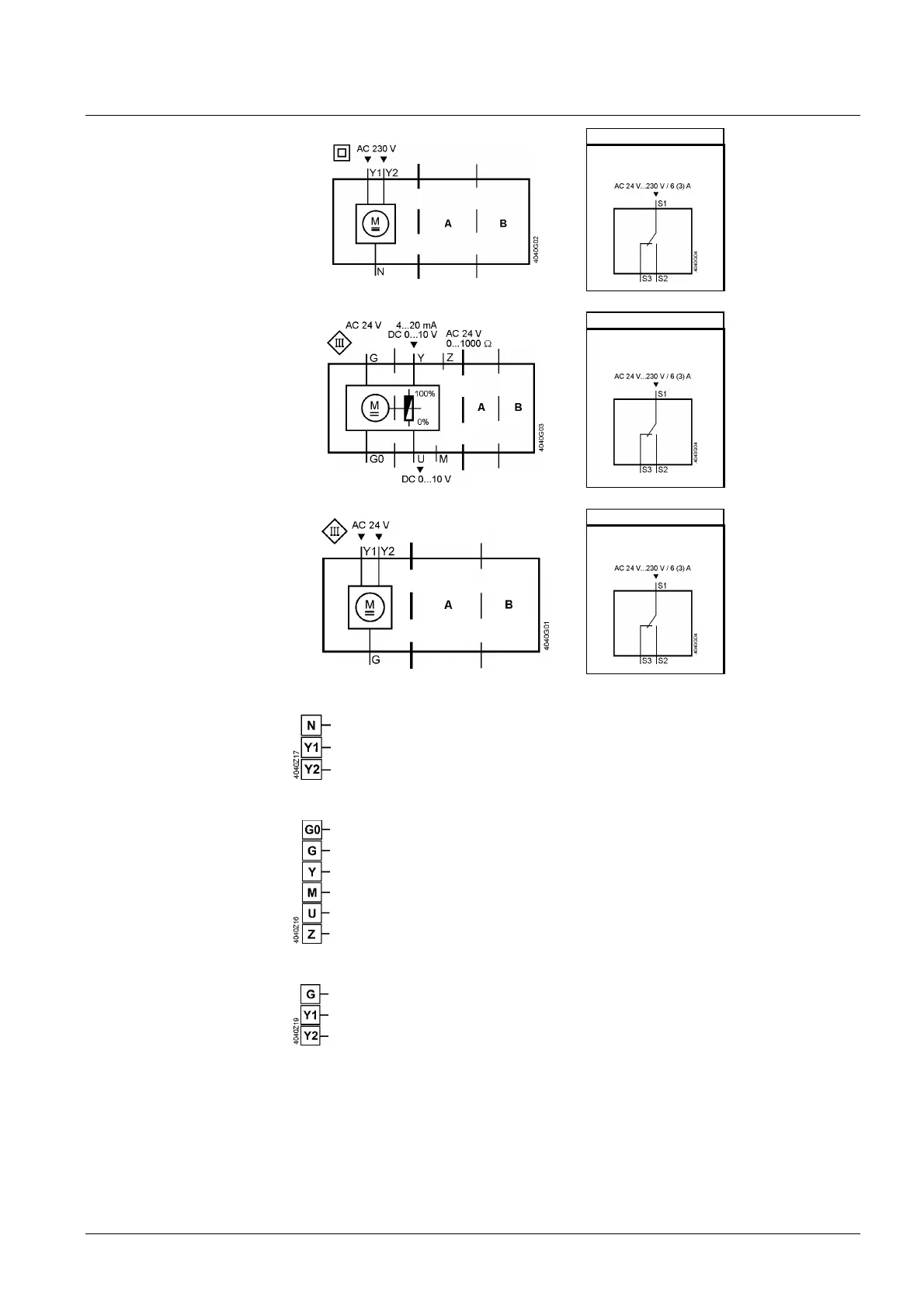

Connection Diagrams
Accessories
1x ASC10.51
Accessories
1x ASC10.51
Accessories
1x ASC10.51
AC 230 V, 3-position
Sytem neutral (SN)
Positioning signal (actuator’s stem retracts)
Positioning signal (actuator’s stem extends)
AC/DC 24 V, DC 0…10 V / 4…20 mA / 0…1000 Ω
Sytem neutral (SN)
Sytem potential (SP)
Positioning signal for DC 0…10 V / 4…20 mA
Measuring neutral
Position feedback DC 0...10 V
Positioning signal forced control
AC/DC 24 V, 3-position
Sytem potential (SP)
Positioning signal (actuator’s stem retracts)
Positioning signal (actuator’s stem extends)
Internal Diagrams
SAY31P03
SAY61P03
SAY81P03
Connection terminals
SAY31P03
SAY61P03
SAY81P03
