Siemens ARCADIS Varic Maintenance Instruction

ARCADIS Varic SPR2-310.662.01 Page 8 of 10 Siemens AG
Rev. 02 05.06 CS PS SP Medical Solutions
5 - 8 Function tests
SID' (source - film distance) 96.8 cm
C-arm basic position
C-arm to the left, tube assembly at stop
C-arm to the right, tube assembly at stop
If the deviations are within the given tolerance, no additional tests are necessary.

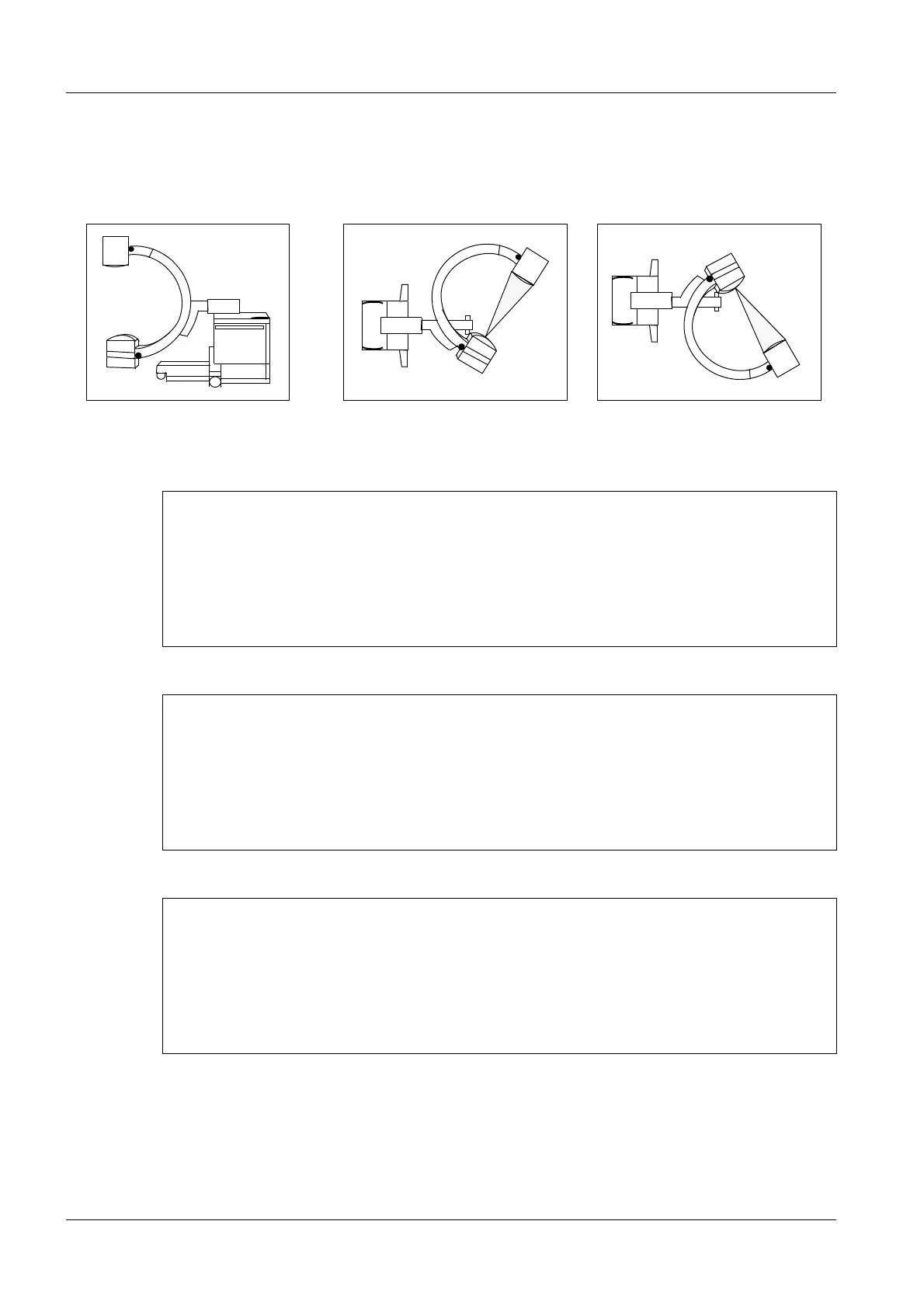

Fig. 7
Shading ∆ A ......... + ∆ C .......... = .......... mm
(must be
< 29 mm)
(3% of the SID)
∆ B ......... + ∆ D .......... = .......... mm
(must be
< 29 mm)
(3% of the SID)
∆ A ......... + ∆ B ......... + ∆ C .......... + ∆ D ....... = ........ mm (must be < 38 mm)
(4% of the SID)
Shading
∆ A ......... + ∆ C .......... = .......... mm
(must be
< 29 mm)
(3% of the SID)
∆ B ......... + ∆ D .......... = .......... mm
(must be
< 29 mm)
(3% of the SID)
∆ A ......... + ∆ B ......... + ∆ C .......... + ∆ D ....... = ........ mm (must be < 38 mm)
(4% of the SID)
Shading
∆ A ......... + ∆ C .......... = .......... mm
(must be
< 29 mm)
(3% of the SID)
∆ B ......... + ∆ D .......... = .......... mm
(must be
< 29 mm)
(3% of the SID)
∆ A ......... + ∆ B ......... + ∆ C .......... + ∆ D ....... = ........ mm (must be < 38 mm)
(4% of the SID)
Basic position
C-arm to the right,
Tube assembly at stop
C-arm to the left,
Tube assembly at stop
(top view)

Siemens ARCADIS Varic Specifications

General

Type	Mobile C-arm
Image Intensifier	9-inch or 12-inch
DICOM Compatibility	Yes
Frame Rate	Up to 30 fps
Focal Spot Size	0.3/0.6 mm
Monitor	Dual 18-inch TFT LCD monitors
