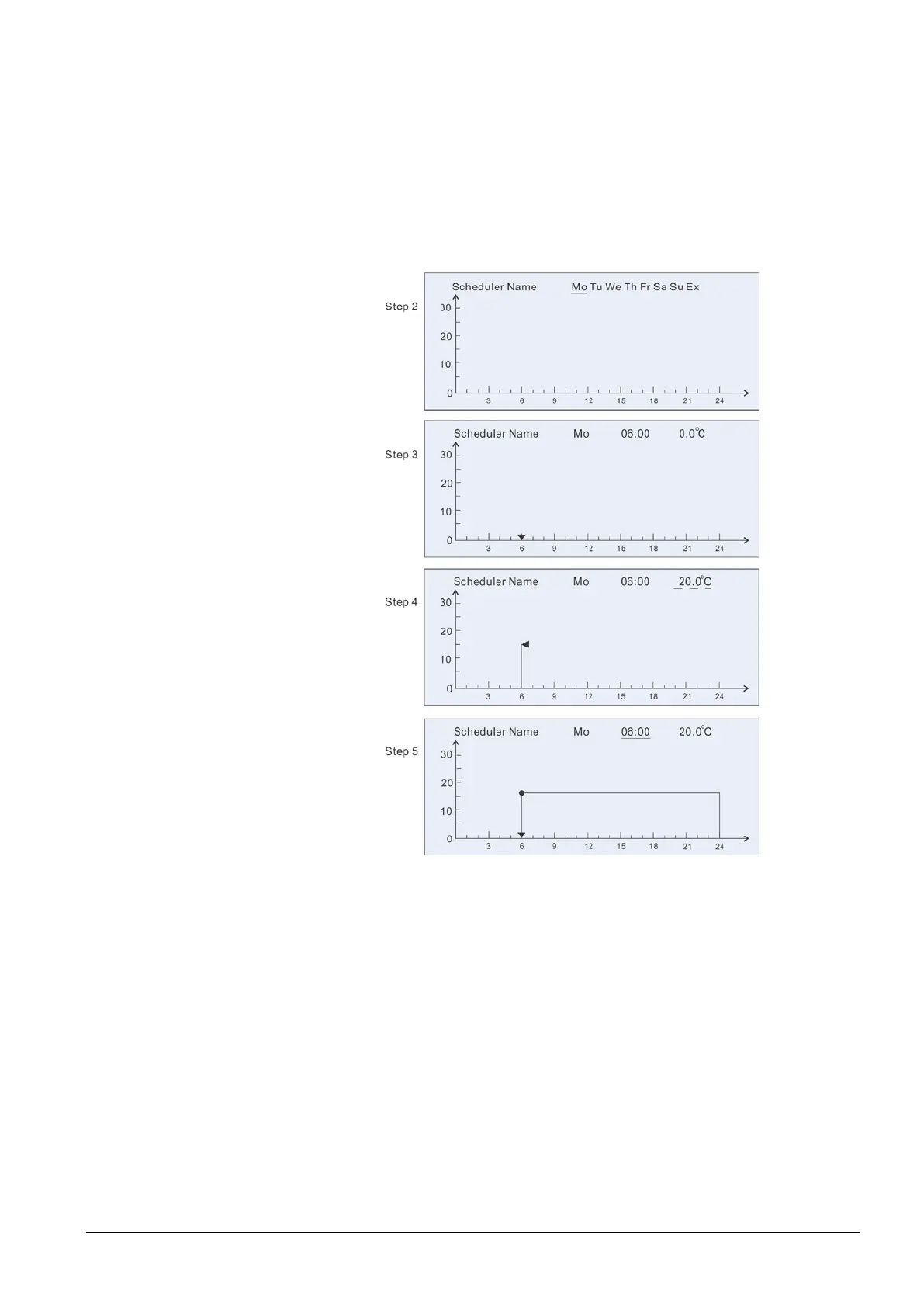

Follow the steps to set the set point scheduler.
1. Enter the Set point Scheduler page.
2. Press key UP/DOWN to select the weekday and press key ENTER.
3. Press key UP/DOWN to adjust the time point by 15 minutes, and press key
ENTER.
4. Press key UP/DOWN to adjust the value on the vertical axis. The value is
displayed on the top line. Press key ENTER.
5. Repeat step 3 through 4 until all scheduler entries are set.
