32 / 38
Siemens Climatix HMI-TM CB1P3917en_redesigned
Smart Infrastructure Functions and operations 2023-06-13
The iconic mode page is a special template. Fixed template ID pages are reserved
for iconic mode (65500 – 65532).

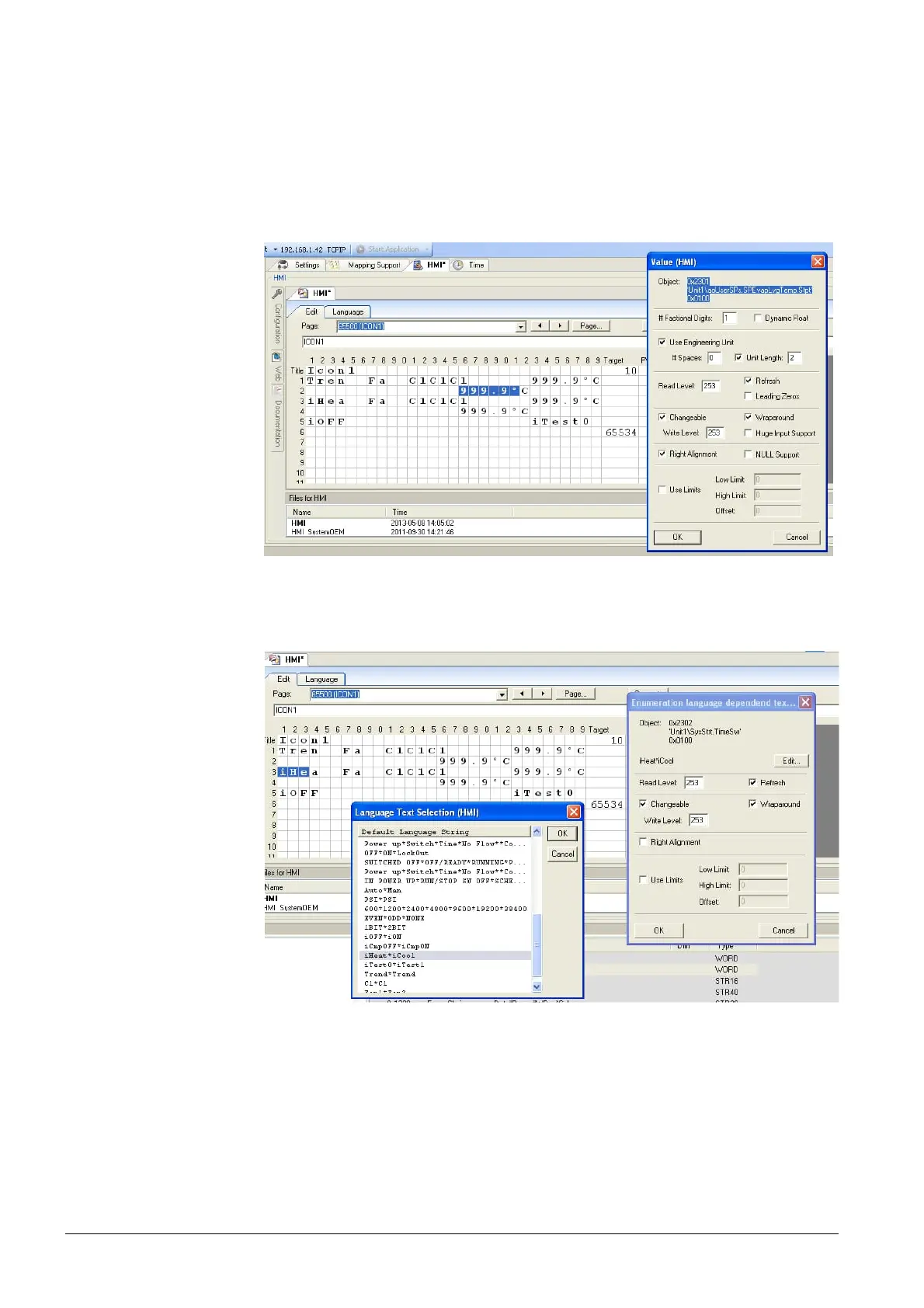

Use HMI editor in SCOPE tool to create iconic template page. It should be like
followings:
- Title line defines target menu page (e.g. “Icon1”). Set also user permission
settings.
- Value datapoints in iconic mode page template should be like:
Lines No. 1, 2 and 3 have the same datapoints (e.g. “999.9°C”). Tick features as
above picture (e.g. Right Alignment, Use Engineering Unit).
- Enumerations datapoint in Iconic mode page template should like:
Template ID
To Next Page
