9 / 38
Siemens Climatix HMI-TM CB1P3917en_redesigned
Smart Infrastructure HMI-TM overview 2023-06-13

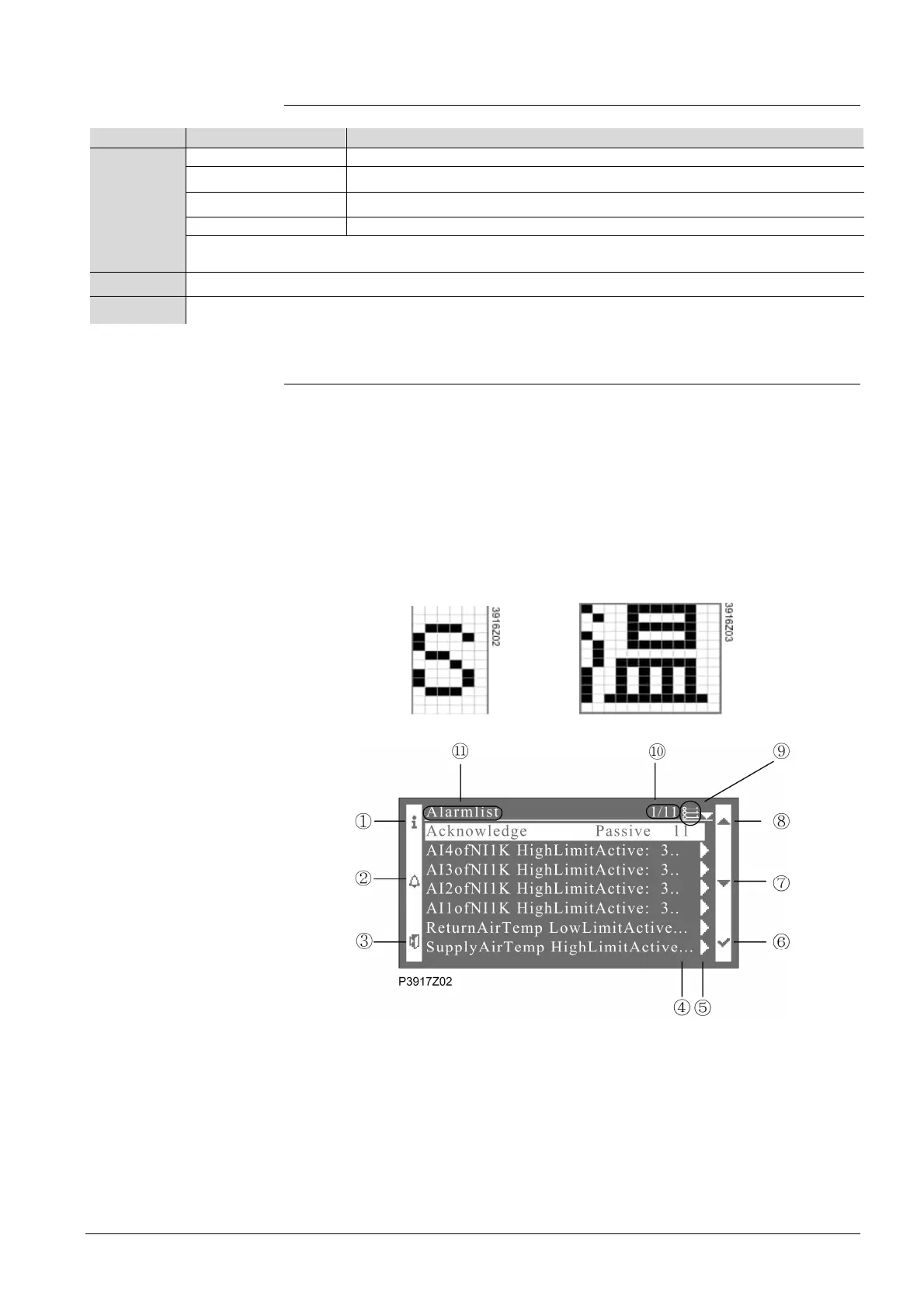

3.2 LED indicators
3.3 Display specification
The STN LCD with dot matrix resolution of HMI-TM is 240*128 pixels
(width*height).
The size of LCD screen is 93*58 mm (width*height). The size of visible area is
86.15*47.78 mm (width*height).
For Latin (English) characters, font sizes of 6*12 pixels and 7*14 pixels
(width*height) are supported; For Eastern Asian characters such as Chinese, font
sizes of 12*12 and 14*14 pixels (width*height) are supported.
Here are the examples:
LED Name Status Description
ALARM
Flashing in red To indicate active but unacknowledged alarm exists
Constant light in red To indicate active alarms exist and all alarms acknowledged
Green Definable
OFF To indicate no active alarm exists
The LED status can be defined by users, such as constant light in red/green/yellow, flashing in
red/green/yellow as well as OFF
INFO Definable (for detail information, refer to Climatix SCOPE online help)
ESC Definable (for detail information, refer to Climatix SCOPE online help)
