Siemens Climatix HMI-TM CB1P3917en_redesigned
Smart Infrastructure Functions and operations 2023-06-13

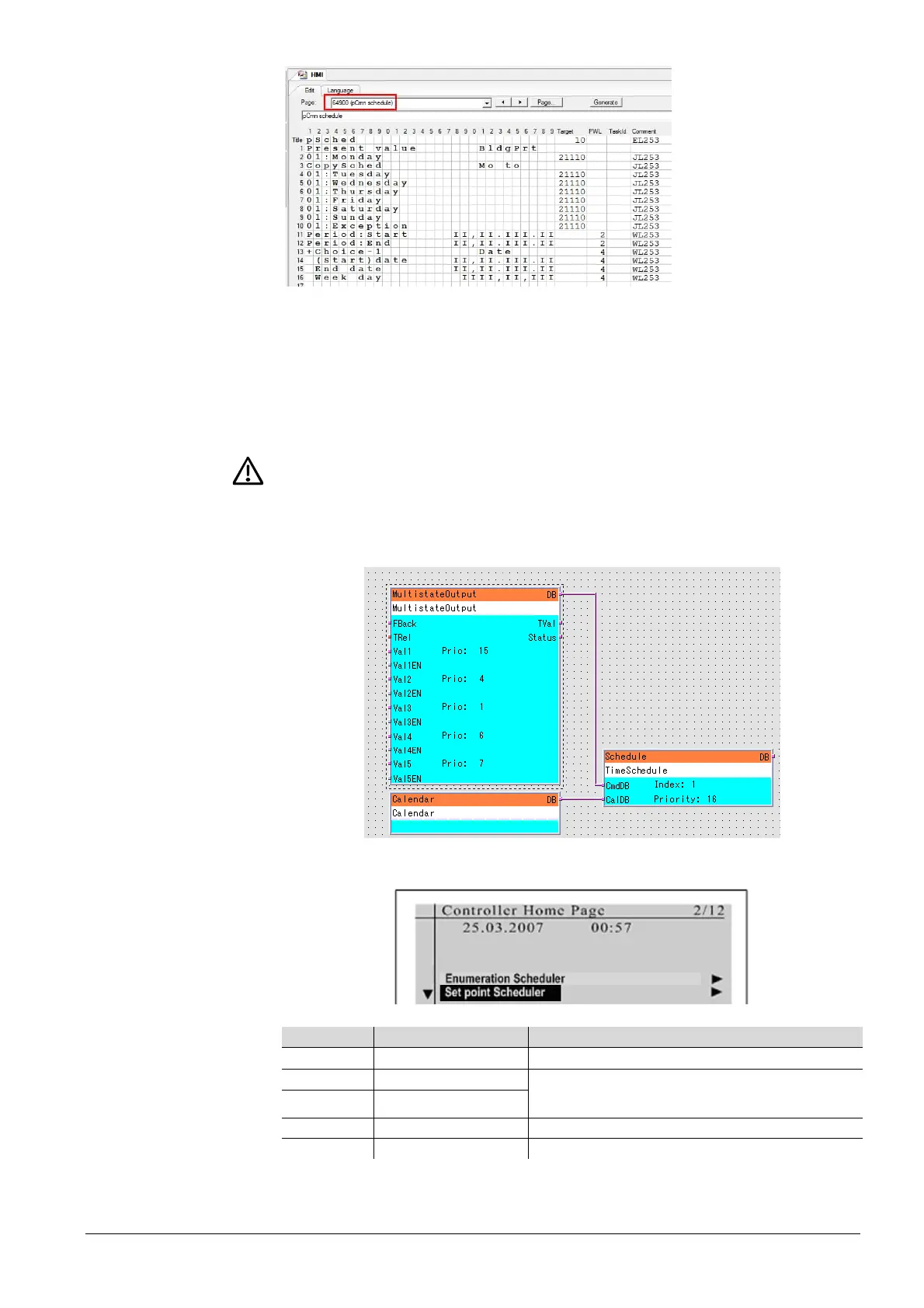

2. Define the sub page in target column.
a. Target Page No. of “Enumeration scheduler” is “64900..64909”.
Object type must be “0x220B”. It is connected to a Multistate
Object (e.g. StptMultistate or any other Multistate-Object).
b. Target Page No. of “Set point scheduler” is “64910..64919”. Object
type must be “0x220A”. It is connected to a Value Object (e.g.
StptValue or any other Analog-Object).
HMI DM/TM with BSP 10.xx or above can still display text time scheduler. Set up
target page for text time scheduler out of above ranges. Those page ranges are
dedicated for graphical time scheduler function with HMI BSP 10.xx or above.
3. Create a time scheduler function in SAPRO as follows:
4. The screen will be shown as follows:
Key
Action
Description
ESC Press To exit from the time scheduler page
UP Press
- To adjust date and time
- To change the enumeration or set point
DOWN Press
ENTER Press To confirm the selection
INFO Long press (3 sec.) To delete a time scheduler entry
Key definition
