33 / 38
Siemens Climatix HMI-TM CB1P3917en_redesigned
Smart Infrastructure Functions and operations 2023-06-13

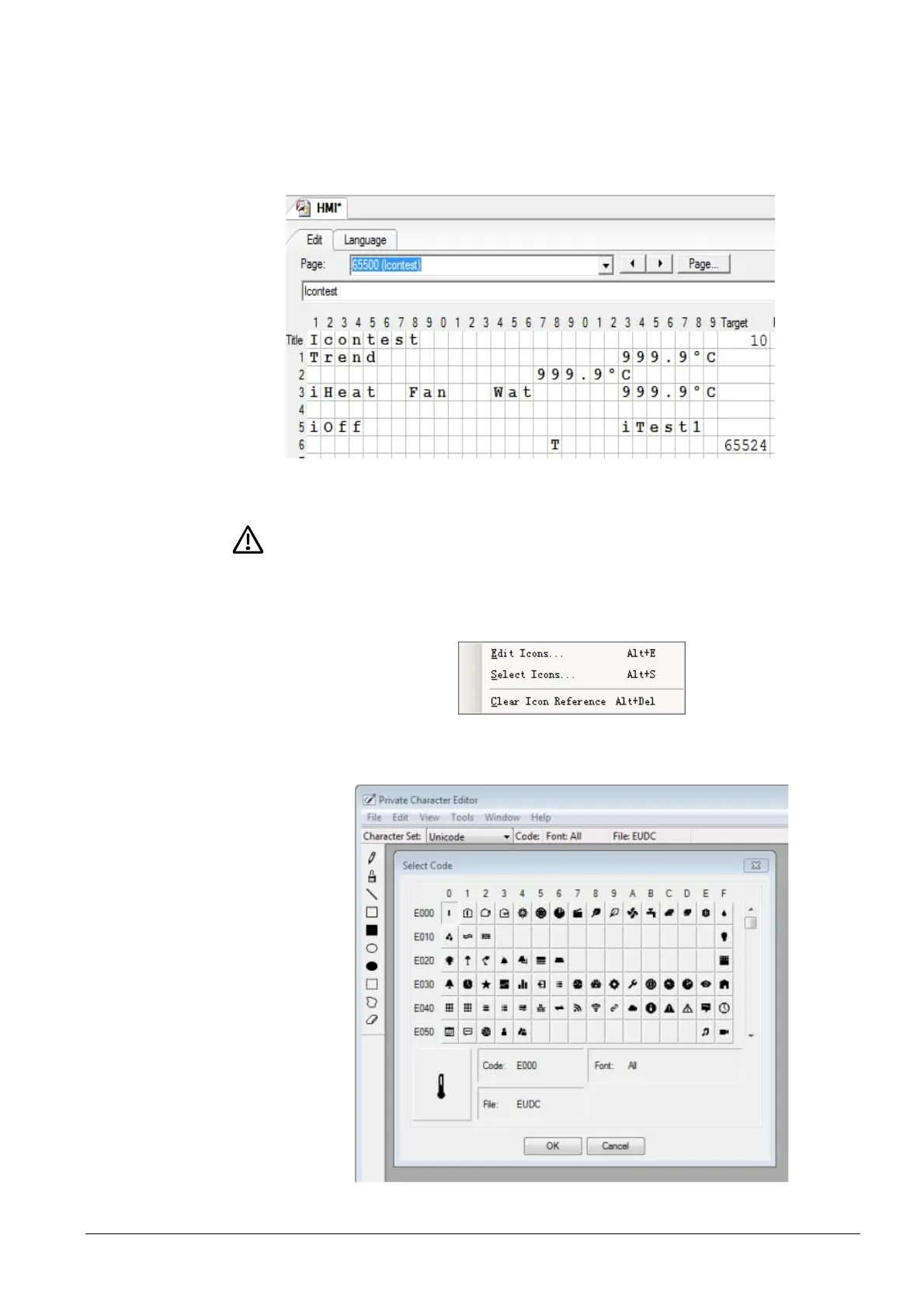

Lines No. 1, 3 and 5 have enumeration tokens (e.g. “iHea). Tick features as above
picture (Left Alignment).
- Right enumeration token on line no.5 must be right-aligned (e.g. “iTest1”)
- Further read-only tokens have free position within iconic page template (e.g.
“Fan”, “Wat”).
- Link to next iconic page template:
On line No. 6 there is target value as next iconic or menu page (e.g. 65524). If
template ID is set to menu page, the user level will be checked.
Enter an empty plain text at any place on line No.6 to set this target page.
To create an icon in SCOPE tool, do as follows:
1. Right click the mouse on Language tab of HMI page and select Edit Icons:
2. The dialog box of Select Code will popup. Select a blank icon and click
OK.
