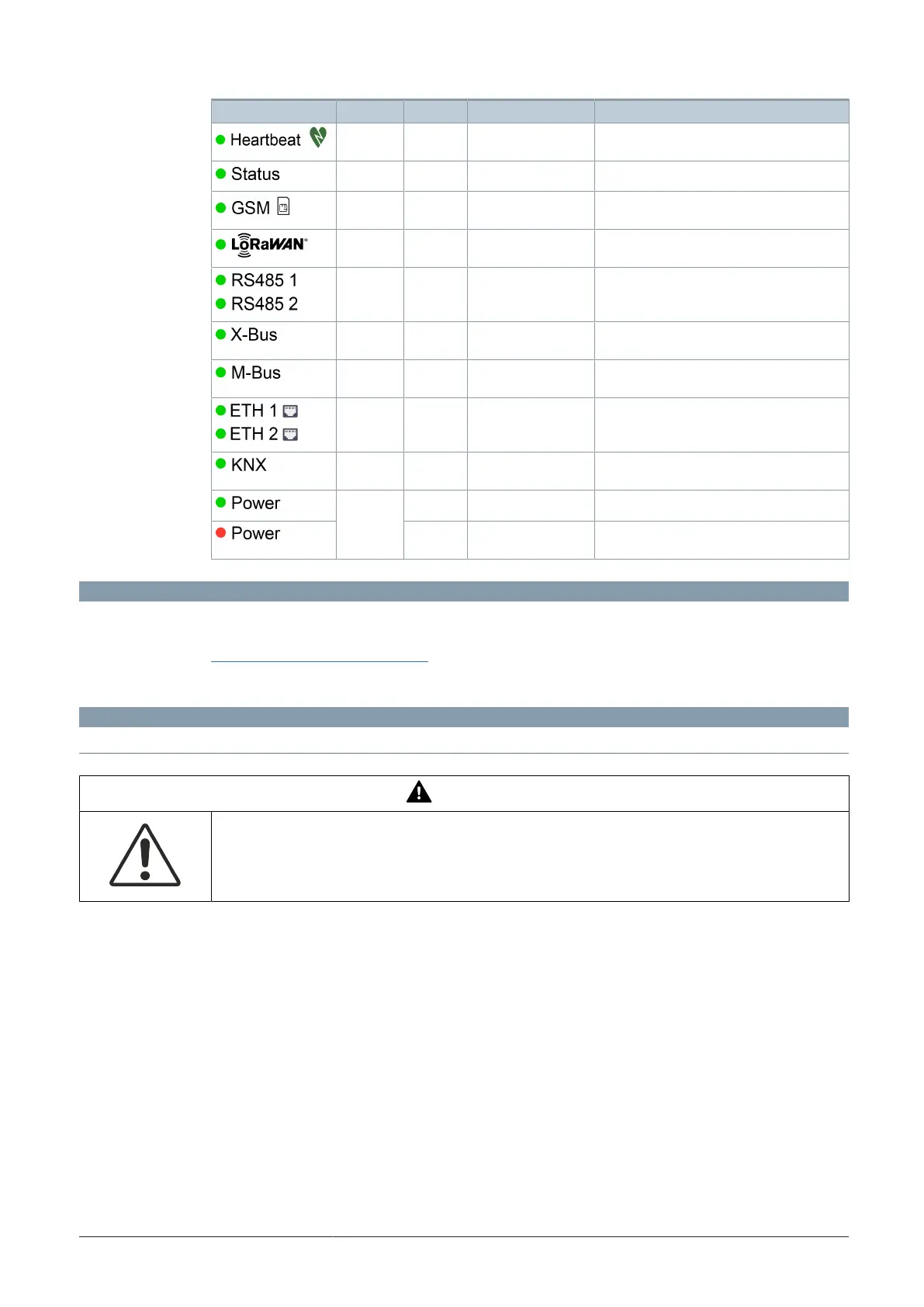

LED displays
LED Color Activity Function
Heartbeat Green Continuously OFF
Flashing
No heartbeat
Heartbeat OK
Status Currently not used
GSM
antenna
Green Continuously ON
Continuously OFF
GSM active
GSM inactive
LoRaWA
N antenna
Currently not used
RS485
1/2
Green Continuously ON
Continuously OFF
Communication
No communication to subsystem
X-bus Green Continuously ON
Continuously OFF
Communication
No communication to subsystem
M-bus Green Continuously ON
Continuously OFF
Communication
No communication to subsystem
Ethernet
1/2
Green Continuously ON
Continuously ON
Link activ
No connection
KNX Green Continuously ON
Continuously OFF
Communication
No communication to subsystem
Power
supply
Green Continuously ON Connected power supply is compatible
Red Continuously ON Connected power supply is not compatible.
To avoid damage, change the power supply.
