Description of the device
1.1 Product characteristics
CP 5711
10 Operating Instructions, 02/2018, C79000-G8976-C283-05
Appearance

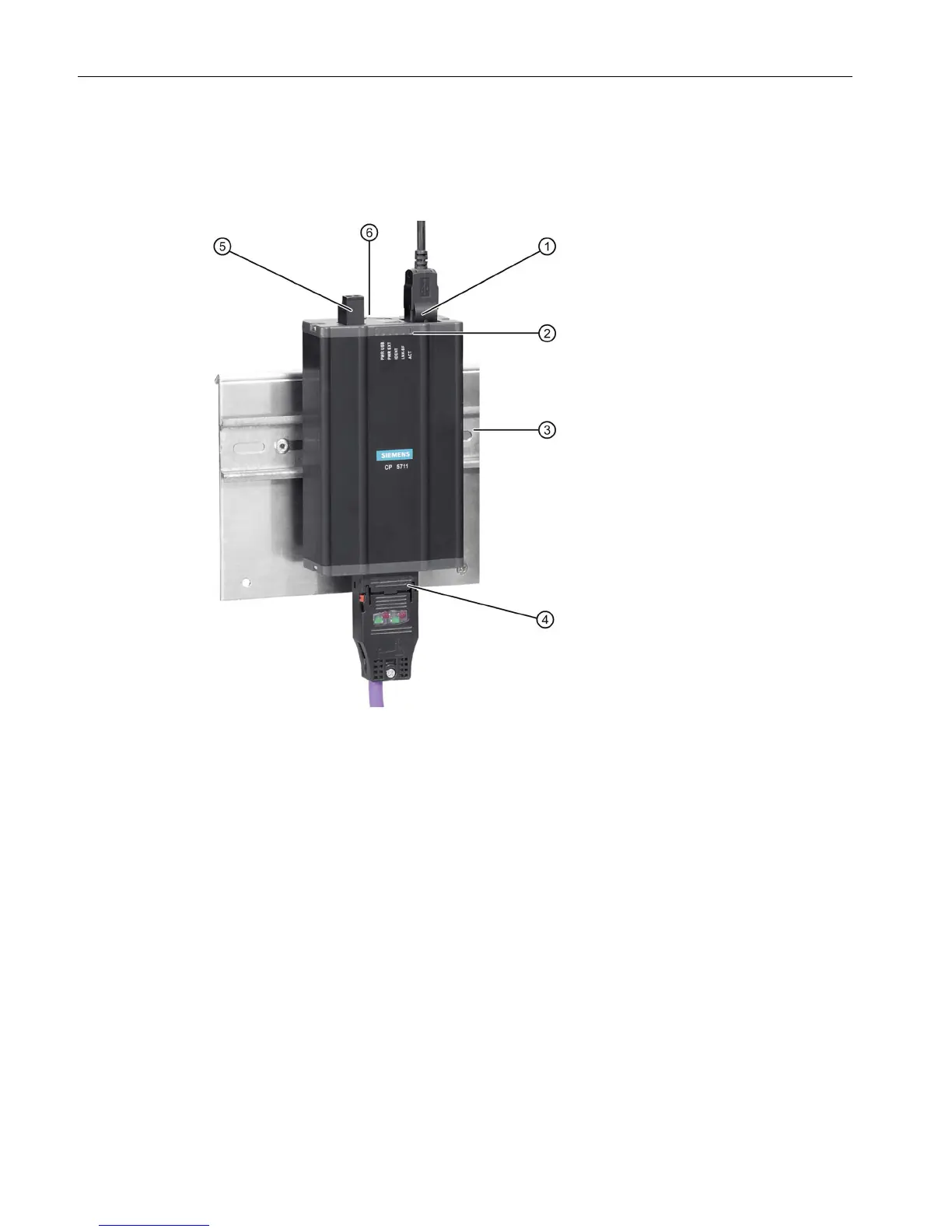

The following figure shows the CP 5711 communications processor mounted on a 35 mm
DIN rail:
1
USB interface type B with USB cable
2
LEDs
3
DIN rail
4
PROFIBUS interface with D-sub male connector
5
Terminals for external 24 V power supply
6
Ground connection (cannot be seen in the figure)
