Siemens CP 5711 - Installing on a DIN rail

Hardware installation
3.4 Installing on a DIN rail
CP 5711
Operating Instructions, 02/2018, C79000-G8976-C283-05
21
3.4
Installing on a DIN rail
Condition
To mount the communications processor on a 35 mm DIN rail, you require an additional DIN
rail holder. You can obtain this holder under the article number 6GK1 571-1AA00-0AH0.
Safety notice
WARNING
When used in hazardous environments corresponding to Class I, Division 2 or Class I,
Zone 2, the device must be installed in a cabinet or a suitable enclosure.
To comply with EC Directive 94/9 (ATEX95), this enclosure must meet the requirements of
at least IP54 in compliance with EN 60529.
Procedure

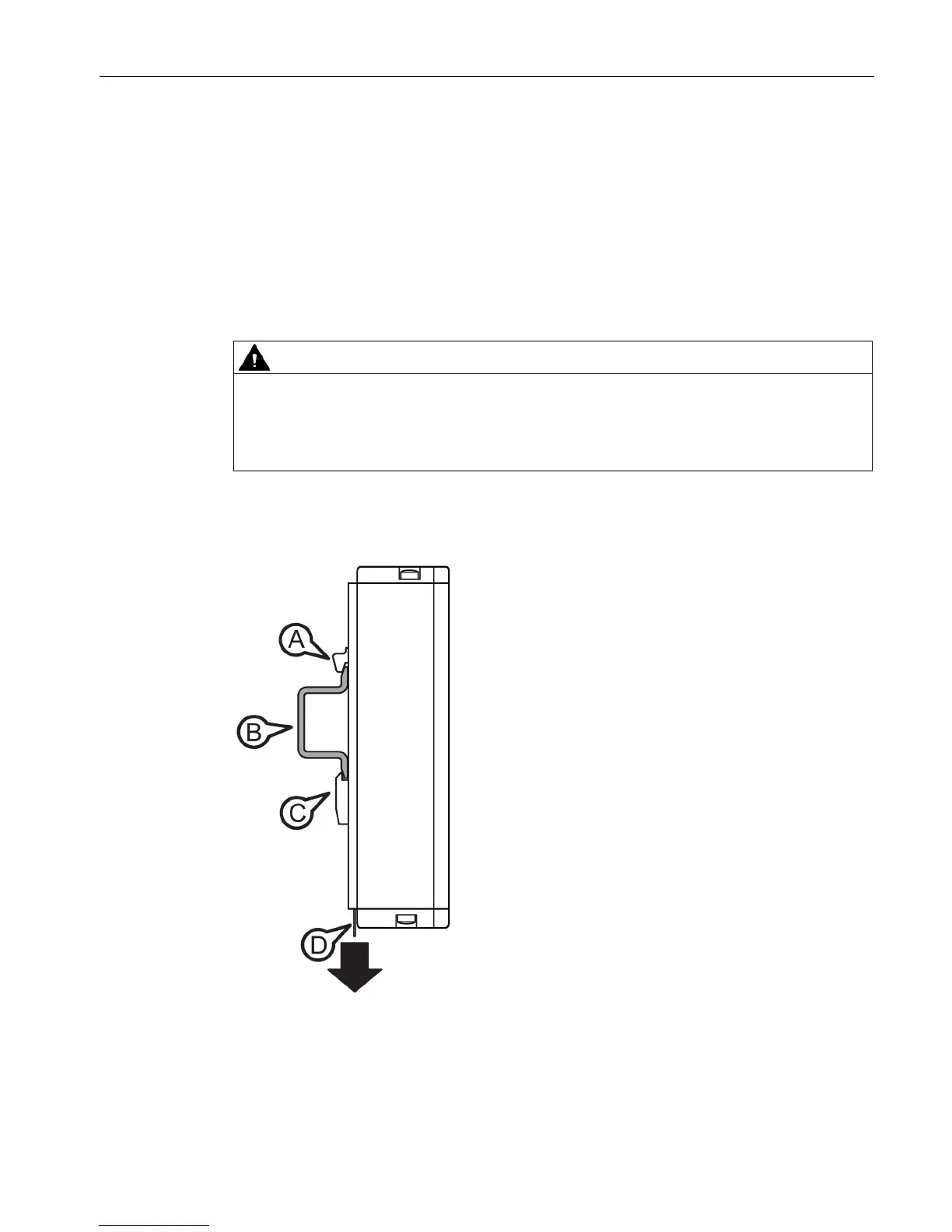

A
Upper DIN rail holder
B
DIN rail
C
Lower DIN rail holder with spring catch
D
Spring DIN rail slider
