Top view

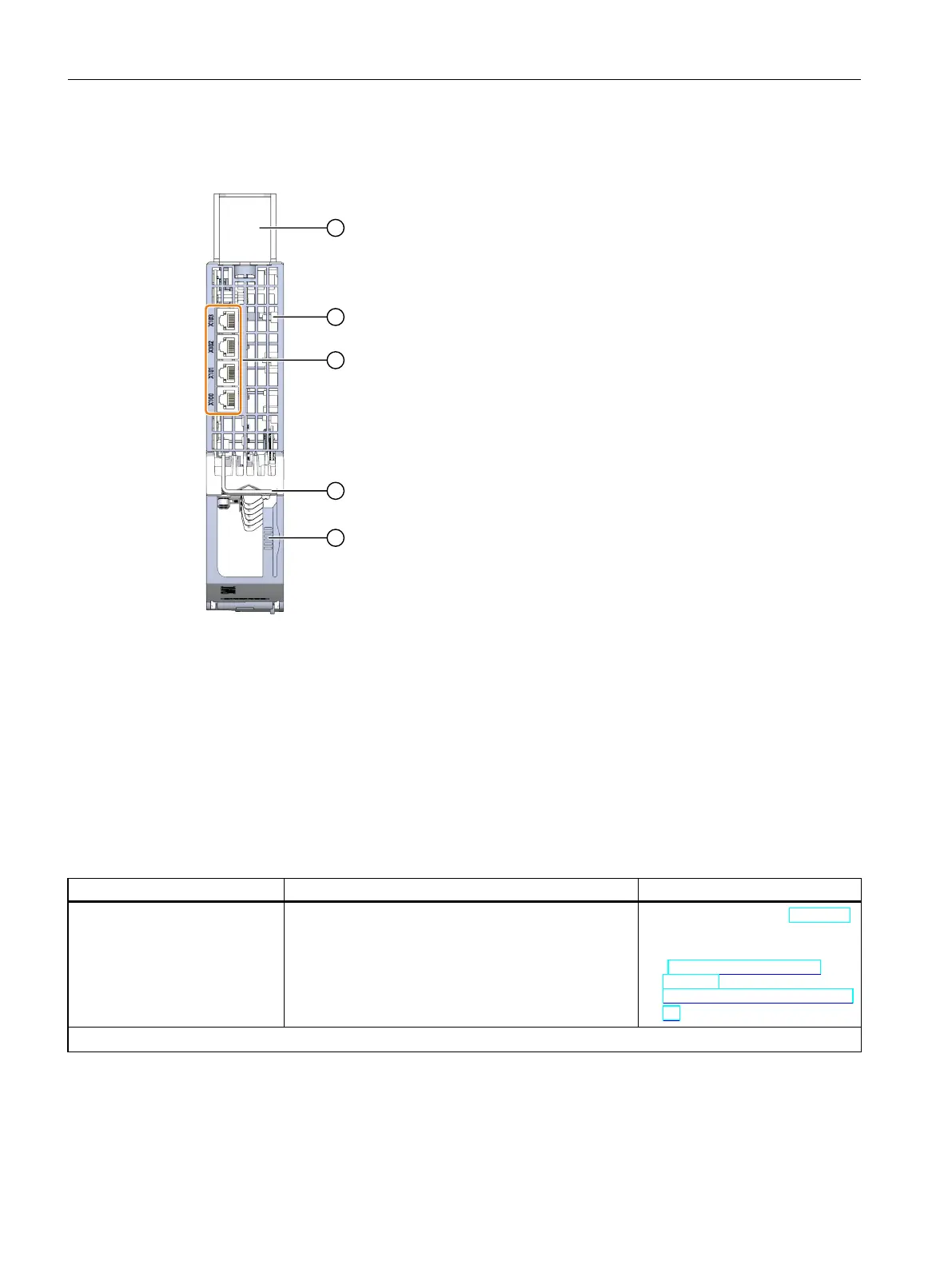

The figure below shows the top view of a SIMATIC Drive Controller.
① Spacer
② Ventilation slots
③ DRIVE-CLiQ interfaces
④ Holding clamp of shield support
⑤ Release for top cover
Figure 3-3SIMATIC Drive Controller top view
Properties
The SIMATIC Drive Controllers have the following properties:
Table 3-3Hardware properties
Properties Description Additional information
Supply voltage (X124) The 24VDC supply voltage for the SIMATIC Drive Con
troller is fed via a 4-pin cable connector located on the
front of the SIMATIC Drive Controller .
• Section Connecting (Page 43)
• SIMATIC Drive Controller sys
tem manual
(https://support.industry.
siemens.
com/cs/ww/en/view/1097666
65)
PROFINET IO
24
SIMATIC Drive Controller
Equipment Manual, 11/2022, A5E46600370-AC
Product overview
3.4 Hardware properties
