:LULQJ
S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
7-16 A5E00105492-03
If you need more than four shielding terminals, start wiring at the rear row of the
shielding contact element.
CPU
PS
22
2
1

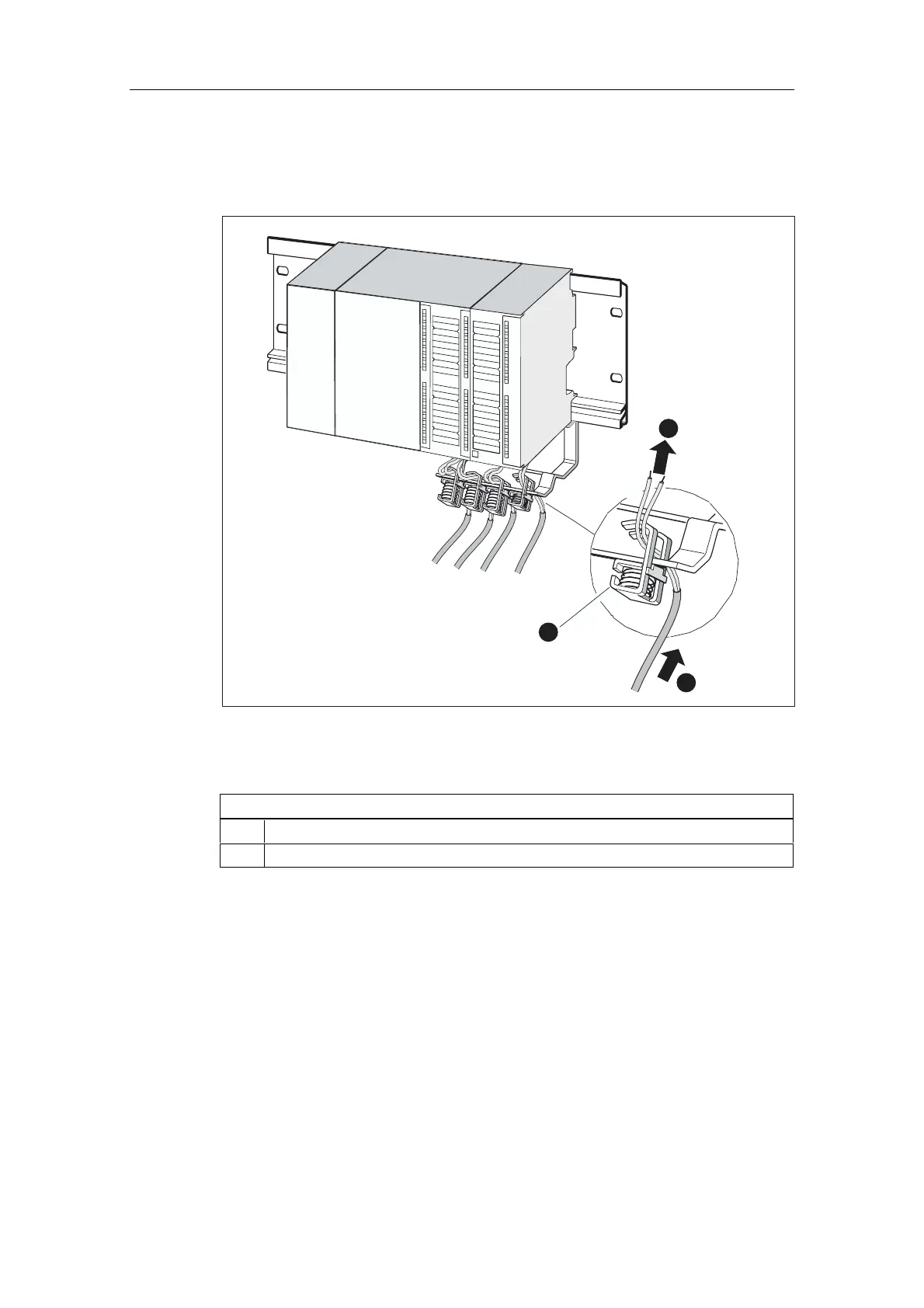

Figure 7-7 Connecting 2-wire cables to the shielding contact element
7KHGLDJUDPLOOXVWUDWHVXQGHUQXPEHU
Magnified view of shielding terminal
Wiring of shielding terminal
7LS
For your connection to the front connector, leave a sufficient cable length behind
the shielding terminal. This allows you to disconnect the front connector, e.g. for
repairs, without having to open the shielding contact element.
