Siemens CPU 315-2 DP Reference Manual

B-1
PLC S7-300, CPU Specifications CPU 312 IFM to CPU 318-2 DP
A5E00111190-01
Dimensioned Drawings
Introduction
This appendix contains the dimensioned drawings of S7-300 CPUs. The
specifications in these drawings are required of you for dimensioning your S7-300
assembly. The dimensioned drawings of the other S7-300 modules and
components are contained in the Module Specifications Reference Manual.
CPU 312 IFM

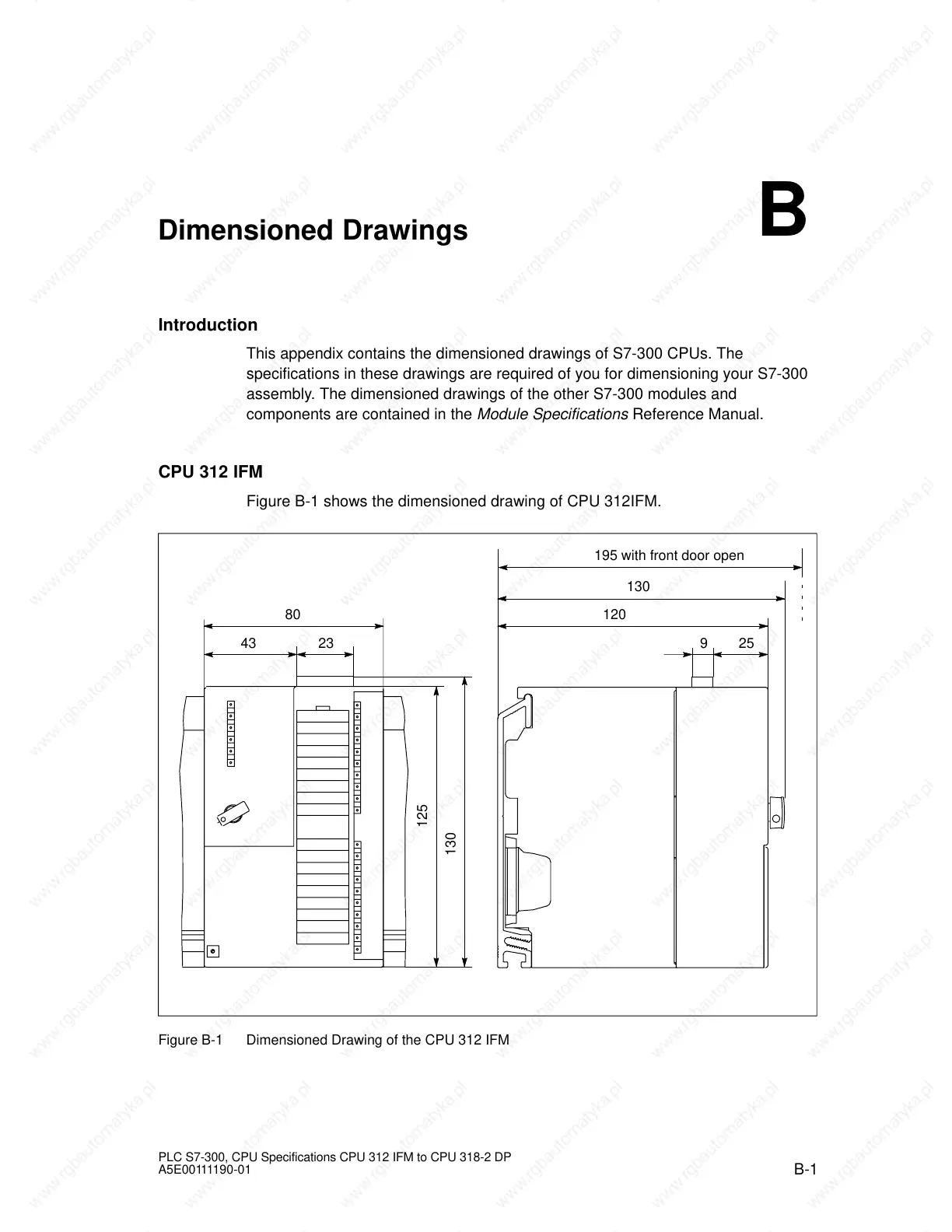

Figure B-1 shows the dimensioned drawing of CPU 312IFM.
130
12080
43 23
125
130
9 25
195 with front door open
Figure B-1 Dimensioned Drawing of the CPU 312 IFM
B

Siemens CPU 315-2 DP Specifications

General

Memory	64 KB
Power Supply	24 V DC
Order Number	6ES7 315-2AG10-0AB0
Number of DP Masters	1
Number of DP Slaves	124
Load Memory	64 KB
Number of Timers	256
Number of Counters	256
Data Memory	64 KB
Operating Temperature	0 to 60 °C
Integrated Interfaces	MPI, DP
Digital Outputs	Not integrated
Analog Inputs	Not integrated
Analog Outputs	Not integrated
Programming Languages	LAD, FBD, STL
Digital Inputs	Not integrated
Weight	660 g
