Siemens CPU 315-2 DP Reference Manual

CPUs
1-46
PLC S7-300, CPU Specifications CPU 312 IFM to CPU 318-2 DP
A5E00111190-01

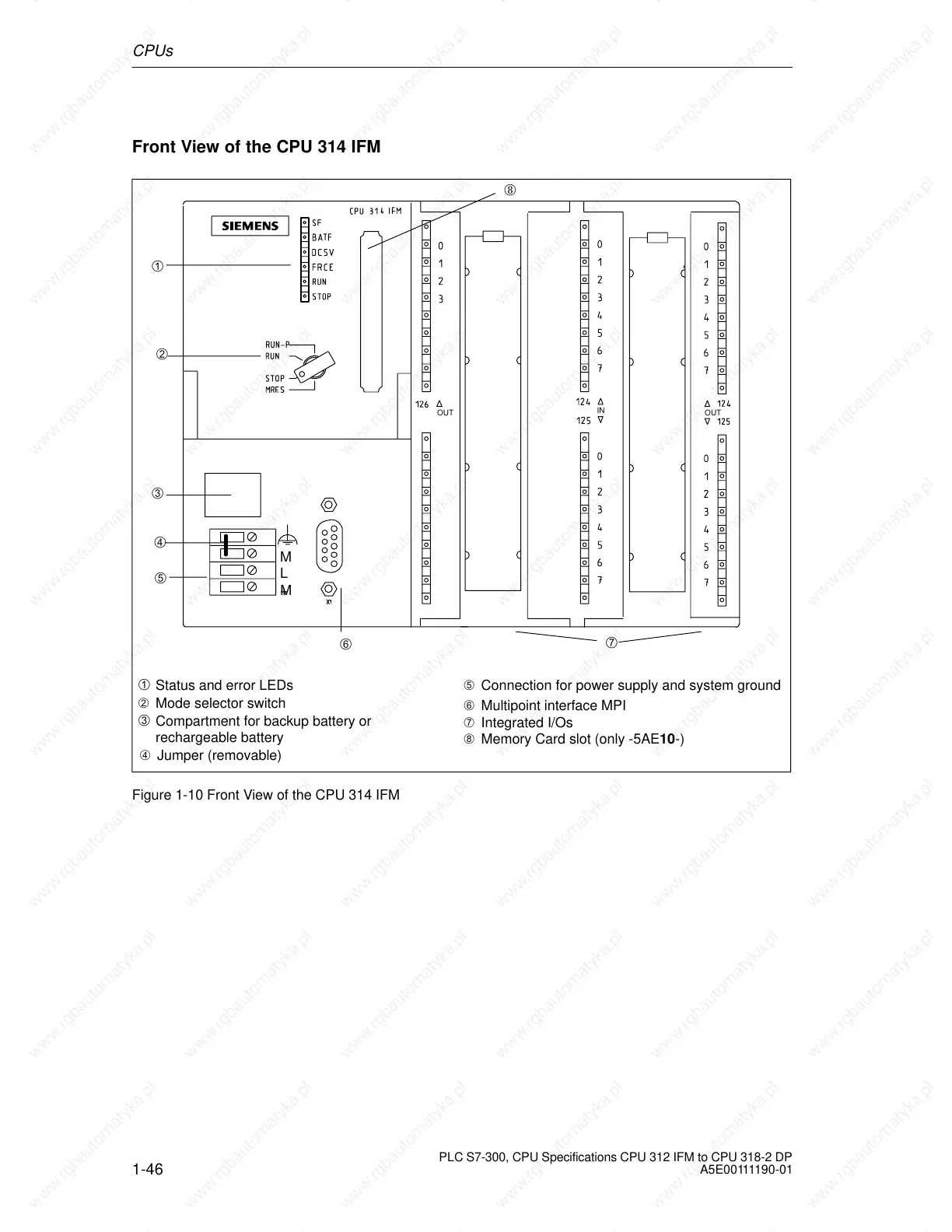

Front View of the CPU 314 IFM
IN
OUTOUT
M
L
+M






 Status and error LEDs
 Mode selector switch
 Compartment for backup battery or
rechargeable battery
 Jumper (removable)

 Connection for power supply and system ground
 Multipoint interface MPI
 Integrated I/Os

 Memory Card slot (only -5AE10-)
Figure 1-10 Front View of the CPU 314 IFM

Siemens CPU 315-2 DP Specifications

General

Memory	64 KB
Power Supply	24 V DC
Order Number	6ES7 315-2AG10-0AB0
Number of DP Masters	1
Number of DP Slaves	124
Load Memory	64 KB
Number of Timers	256
Number of Counters	256
Data Memory	64 KB
Operating Temperature	0 to 60 °C
Integrated Interfaces	MPI, DP
Digital Outputs	Not integrated
Analog Inputs	Not integrated
Analog Outputs	Not integrated
Programming Languages	LAD, FBD, STL
Digital Inputs	Not integrated
Weight	660 g
