Siemens CPU 315-2 DP Reference Manual

CPUs
1-27
PLC S7-300, CPU Specifications CPU 312 IFM to CPU 318-2 DP
A5E00111190-01

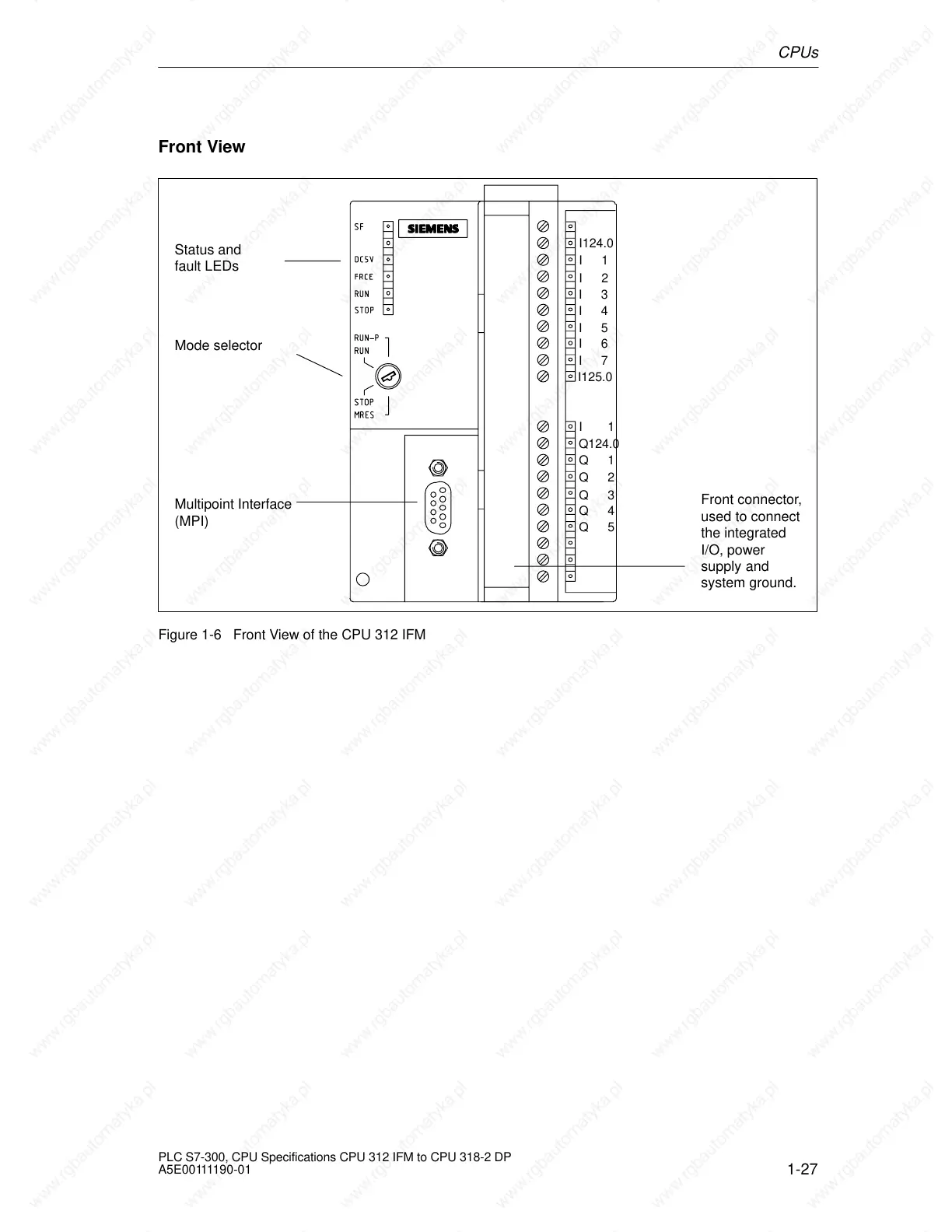

Front View
Status and
fault LEDs
Mode selector
Multipoint Interface
(MPI)
Front connector,
used to connect
the integrated
I/O, power
supply and
system ground.
I124.0
I1
I2
I3
I4
I5
I6
I7
I125.0
I1
Q124.0
Q1
Q3
Q2
Q4
Q5
Figure 1-6 Front View of the CPU 312 IFM

Siemens CPU 315-2 DP Specifications

General

Memory	64 KB
Power Supply	24 V DC
Order Number	6ES7 315-2AG10-0AB0
Number of DP Masters	1
Number of DP Slaves	124
Load Memory	64 KB
Number of Timers	256
Number of Counters	256
Data Memory	64 KB
Operating Temperature	0 to 60 °C
Integrated Interfaces	MPI, DP
Digital Outputs	Not integrated
Analog Inputs	Not integrated
Analog Outputs	Not integrated
Programming Languages	LAD, FBD, STL
Digital Inputs	Not integrated
Weight	660 g
