CPUs
1-31
PLC S7-300, CPU Specifications CPU 312 IFM to CPU 318-2 DP
A5E00111190-01

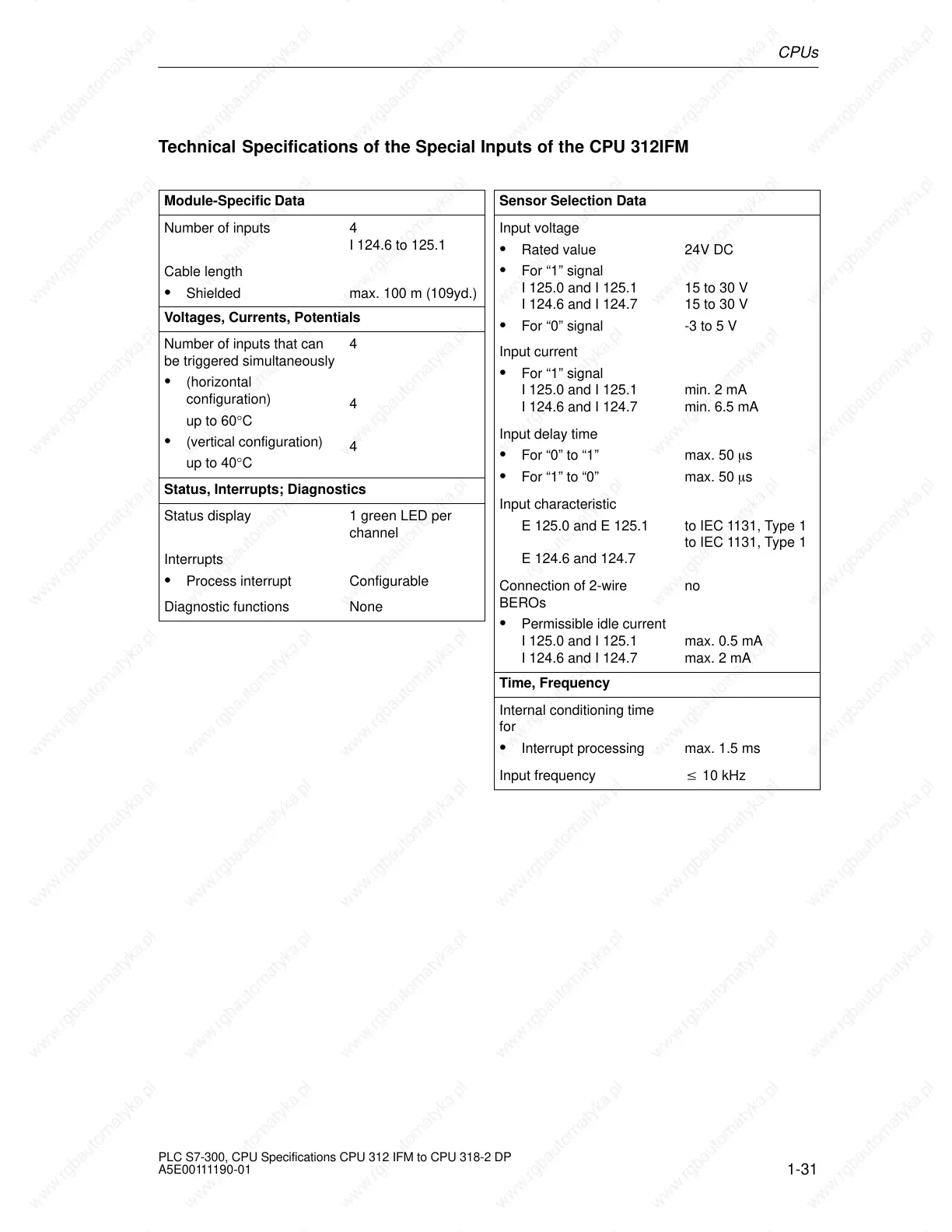

Technical Specifications of the Special Inputs of the CPU 312IFM
Module-Specific Data
Number of inputs 4
I 124.6 to 125.1
Cable length
 Shielded max. 100 m (109yd.)
Voltages, Currents, Potentials
Number of inputs that can
be triggered simultaneously
 (horizontal
configuration)
up to 60°C
 (vertical configuration)
up to 40°C
4
4
4
Status, Interrupts; Diagnostics
Status display 1 green LED per
channel
Interrupts
 Process interrupt Configurable
Diagnostic functions None
Sensor Selection Data
Input voltage
 Rated value
 For “1” signal
I 125.0 and I 125.1
I 124.6 and I 124.7
 For “0” signal
24V DC
15 to 30 V
15 to 30 V
-3 to 5 V
Input current
 For “1” signal
I 125.0 and I 125.1
I 124.6 and I 124.7
min. 2 mA
min. 6.5 mA
Input delay time
 For “0” to “1”
 For “1” to “0”
max. 50 s
max. 50 s
Input characteristic
E 125.0 and E 125.1
E 124.6 and 124.7
to IEC 1131, Type 1
to IEC 1131, Type 1
Connection of 2-wire
BEROs
 Permissible idle current
I 125.0 and I 125.1
I 124.6 and I 124.7
no
max. 0.5 mA
max. 2 mA
Time, Frequency
Internal conditioning time
for
 Interrupt processing max. 1.5 ms
Input frequency  10 kHz

Siemens CPU 315-2 DP Specifications

General

Memory	64 KB
Power Supply	24 V DC
Order Number	6ES7 315-2AG10-0AB0
Number of DP Masters	1
Number of DP Slaves	124
Load Memory	64 KB
Number of Timers	256
Number of Counters	256
Data Memory	64 KB
Operating Temperature	0 to 60 °C
Integrated Interfaces	MPI, DP
Digital Outputs	Not integrated
Analog Inputs	Not integrated
Analog Outputs	Not integrated
Programming Languages	LAD, FBD, STL
Digital Inputs	Not integrated
Weight	660 g
