Siemens DI-8110 User Manual

Standard I/O Modules
SICAM A8000 Series, SICAM I/O Modules Unrestricted 33
DC8-012-2.06, Edition 09.2019

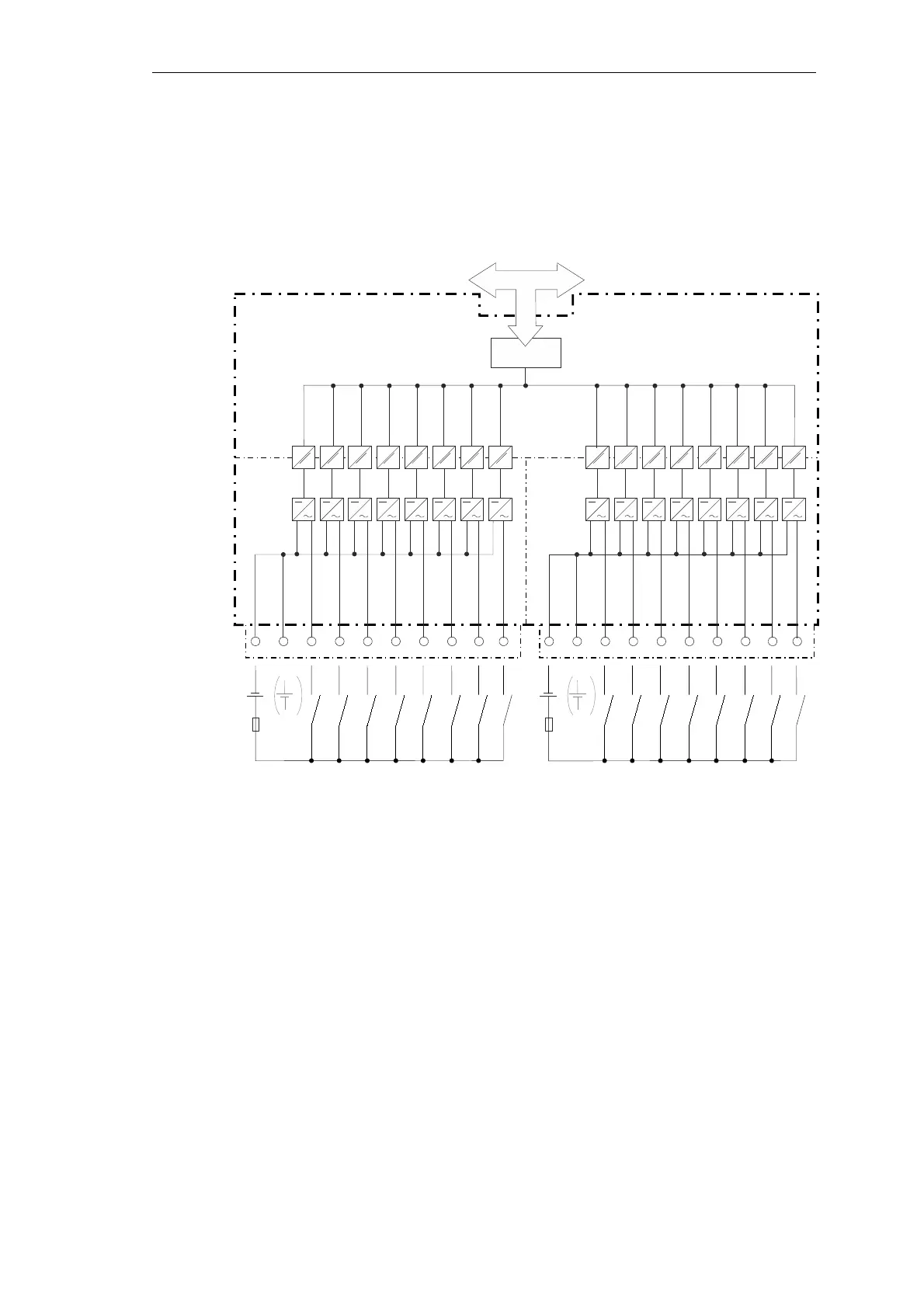

2.3.5 Block Diagram and External Circuitry
The following circuitry variants are examples, and do not relate exclusively to the depicted
inputs/outputs.
DI-811x
X2
Controller
BUS
IN D10
1 2
3
4 5
6
7
8
IN D11 IN D12 IN D13 IN D14 IN D17 IN D15 IN D16
COM10
9
10
X1
COM10
IN D00
1 2
3
4 5
6
7
8
IN D01 IN D02 IN D03 IN D04 IN D07 IN D05 IN D06
COM00
9
10
COM00
U+
U-
U+
U-
U+
U-
U+
U-
reinforced
insulation

Siemens DI-8110 Specifications

General

Product Type	Digital Input Module
Product type designation	DI-8110
Input Voltage	24 V DC
Input Type	Sink/Source
Isolation	Yes
Storage Temperature	-40 to +70 °C
Relative Humidity	5 to 95% non-condensing
Connection type	Screw terminal
