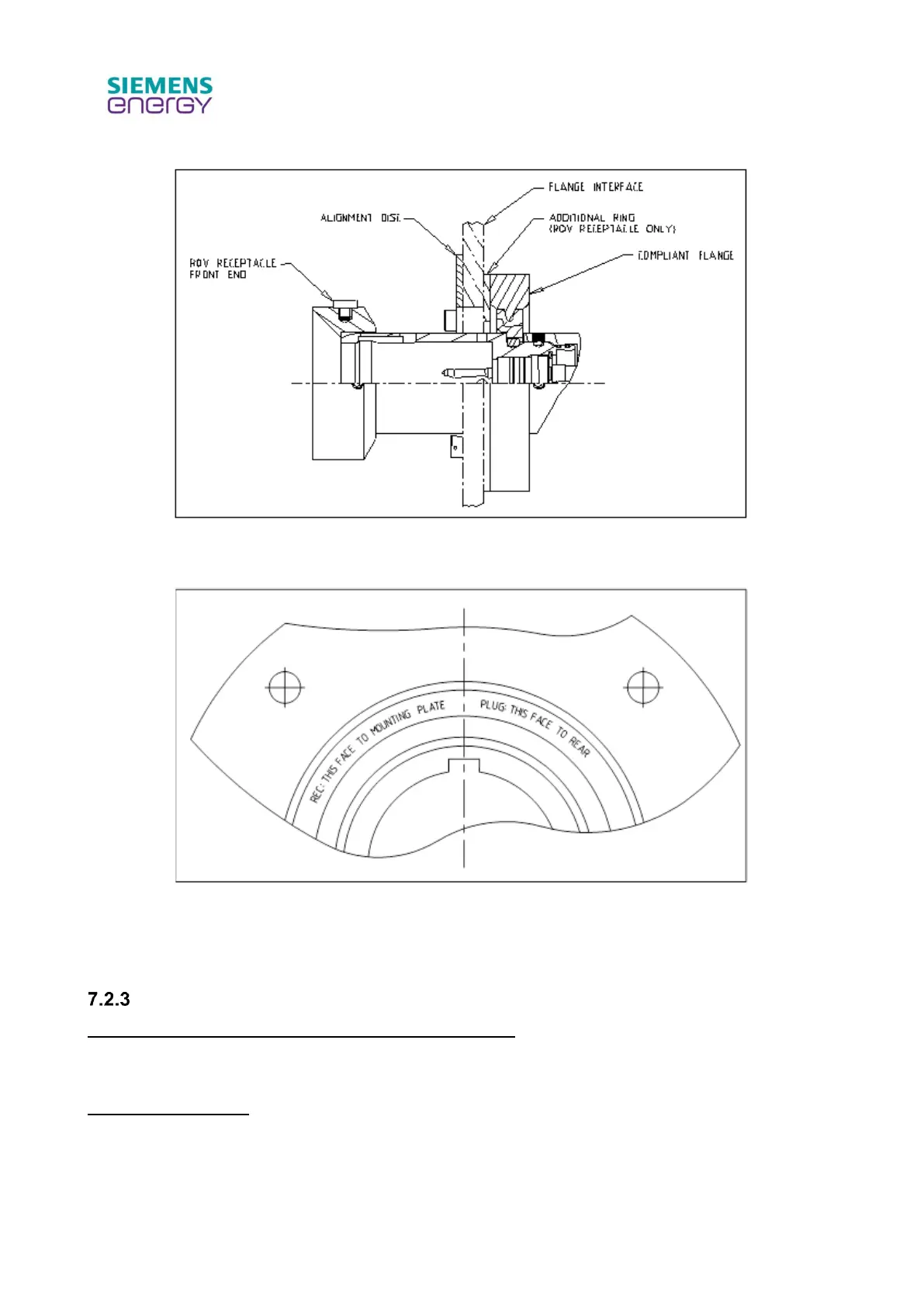

Figure 15 Sectional view to show installation and parts of compliant flange-mount connector
Figure 16 View to show ROV compliant mount flange text (note orientation of flange is different
plug to receptacle)
Diver operated connectors
Installation of flange-mounted diver-operated connectors
Flange mounted diver operated connector have a fixed flange that will be supplied pre-assembled
as part of the connector. Fasteners are supplied loose with the connector.
Mounting instructions
Apply a spot of Loctite 243 to the threads of the cap head screws. Fix the connector to the mounting
position (metal to metal flange contact) using the cap head screws. Torque to 10-12Nm (7.38 – 8.85
lbf.ft)..
