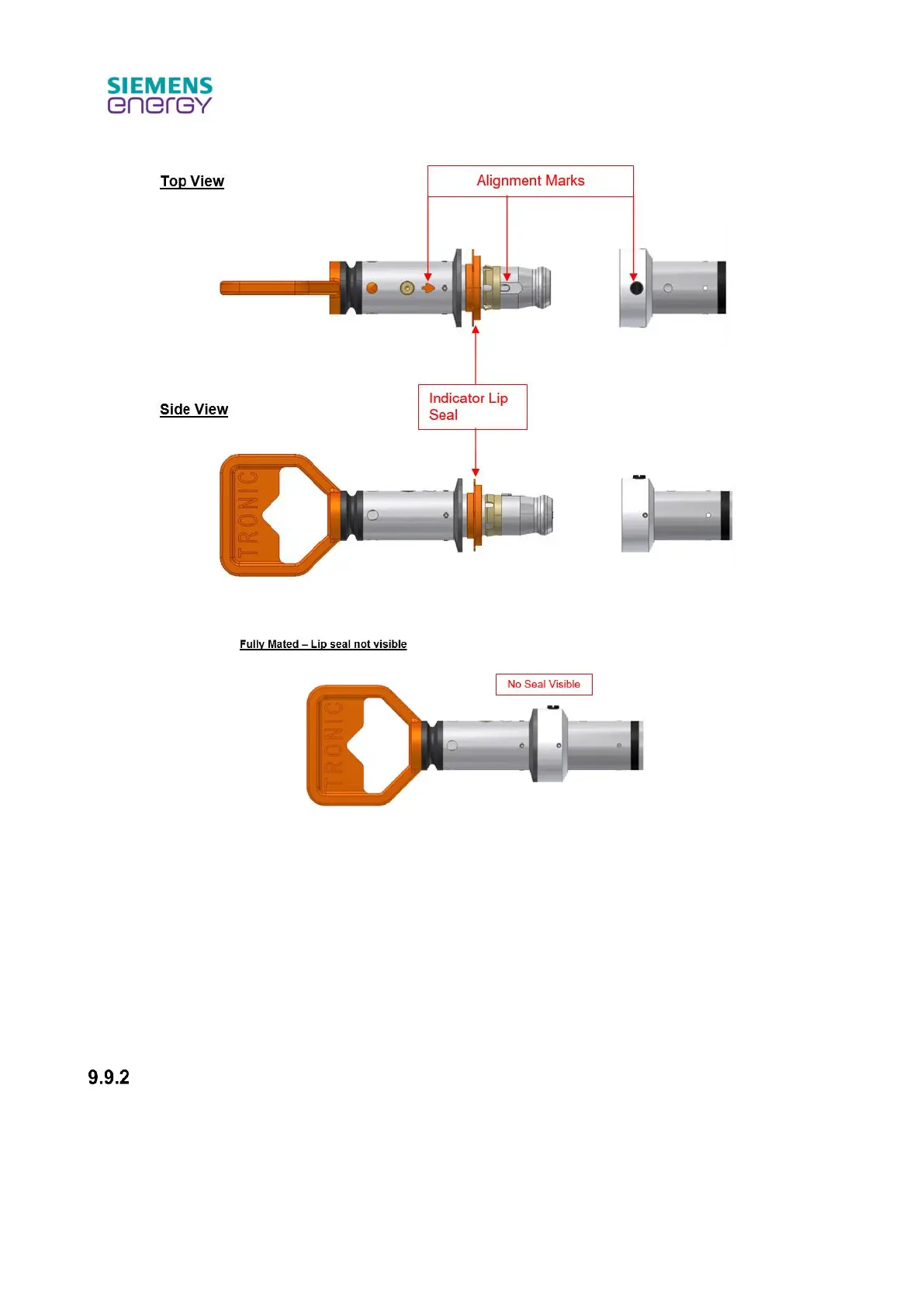

Figure 24 Alignment marks and lip seal mating indicator
• When fully mated the lip seal will not be visible, and connection should look like as shown
in Figure 24
• If the lip seal can still be seen, remove and retry making connection by following the
procedure again.
• If connectors can’t be mated both the plug and receptacle need to be inspected for any mis-
alignment damage or debris that is preventing connection.
• If any damage has occurred, please contact Siemens Energy Technical Support for advice.
ROV connector maximum misalignment values and mating forces
Refer to section 5.1
