2 A6V11274135_en--_b

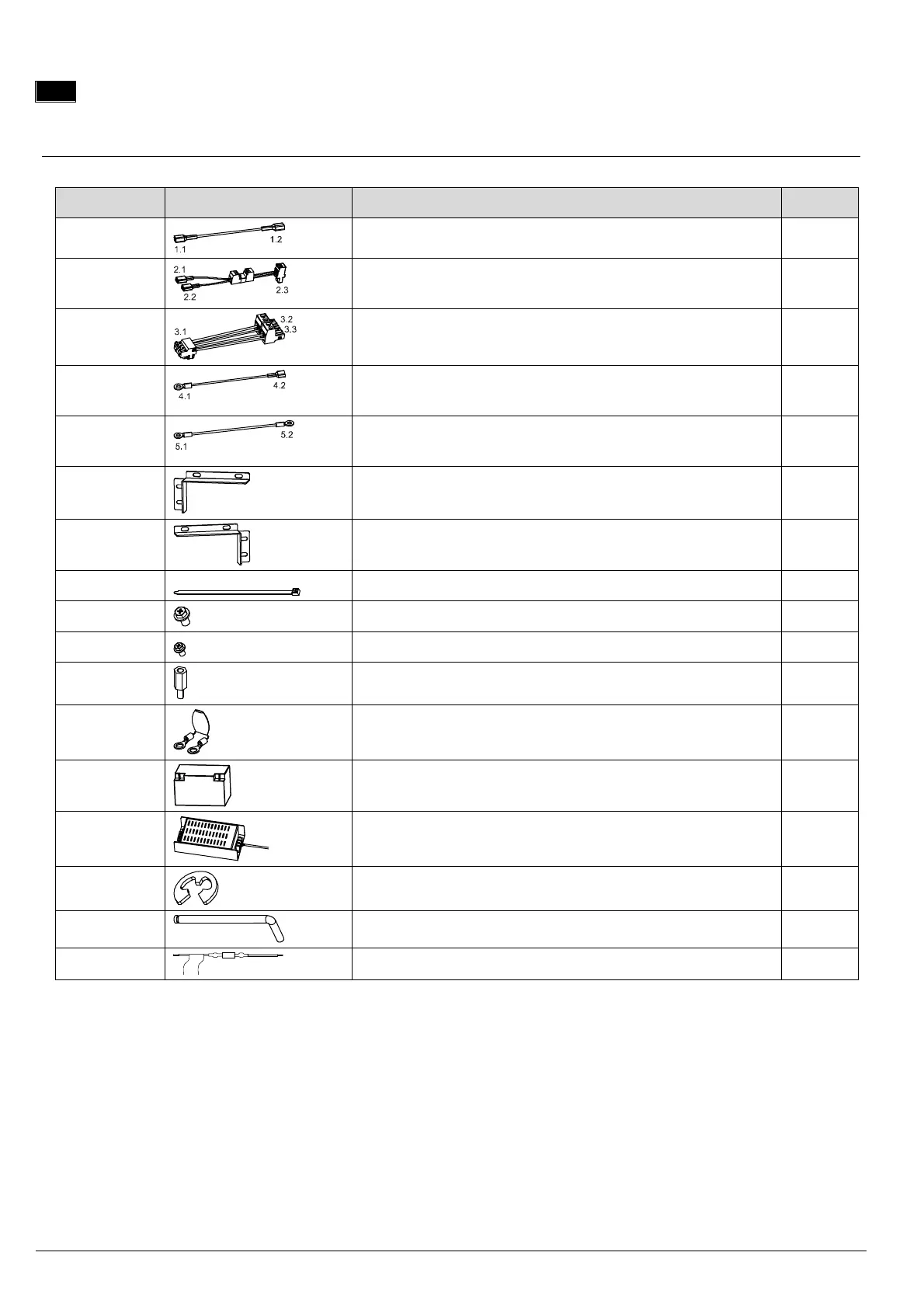

Accessories and separate parts
Accessories Content Installation instruction Quantity
1 Cable between batteries, refer to figure 1
1
2 Cable between batteries and main board, refer to figure 1 and
figure 2
1
3 Cable between City tie board and main board, refer to figure 2
1
4 Earth cable between enclosure and main board, refer to figure
1 and figure 2
1
5 Grounding cable for front door and power supply, refer to
figure 1
2
6
Battery bracket left, refer to figure 1 1
7
Battery bracket right, refer to figure 1 1
8
Cable ties 10
9
No.8 screws, refer to figure 1 12
10
No.4 screws, refer to figure 2 2
11
Spacer for City tie board, refer to figure 2 2
12
Power supply MOV (Metal Oxide Varistor), refer to figure 2 1
S1
Battery cell, refer to figure 1 2
S2
Power supply, refer to power supply installation instruction
sheet delivered with power supply
1
S3
Front door hinge axis lock pin, refer to Detail A 2
S4
Front door hinge axis, refer to Detail A 2
S5
EOL for NAC, refer to Detail C 2
Note: Item 3,6,7,11,S1and S2 are not delivered with the FC901 and FC2005, and should be ordered separately.
Assembling notes:
1. Mount the batteries with battery brackets.
2. Mount the power supply MOV, then mount the power supply to the enclosure.
3. Mount the City tie module onto the main board according to the Figure 2 (City tie module is optional).
4. Connect the cables to the corresponding position marked on the drawing. (The power supply input cable and output
cable are not included in the FC901 and FC2005 package.)
5. Mount the Main board assembly onto the Enclosure according to Figure 3.
6. Mount the Lock pin to the Front door axis. (Both are included in the Enclosure package.)
